Lesson 11

Points on the Coordinate Plane

11.1: Guess My Line (10 minutes)

Warm-up

The purpose of this warm-up is for students to review graphing and locating points in the first quadrant of the coordinate plane. Students observe the structure of horizontal and vertical lines when they compare points on the same line and notice which coordinate of the ordered pair changes and why (MP7).

Launch

Arrange students in groups of 2. Display the coordinate plane for all to see and ask, "What do you notice about the plane? What do you wonder?" Invite a few students to share what they notice and wonder until a student has noticed there are no labels on the axes. Ask, "How should we label the axes?" Otherwise, point out that the axes aren't labeled and ask them how they should be labeled. This lesson plan refers to the axes and coordinates with the standard \(x\) and \(y\) variables. Invite a student to read the directions for both questions in the task. Once confident that groups understand the directions, give groups 4 minutes to guess each other's points followed by a whole-class discussion.

Student Facing

  1. Choose a horizontal or a vertical line on the grid. Draw 4 points on the line and label each point with its coordinates.

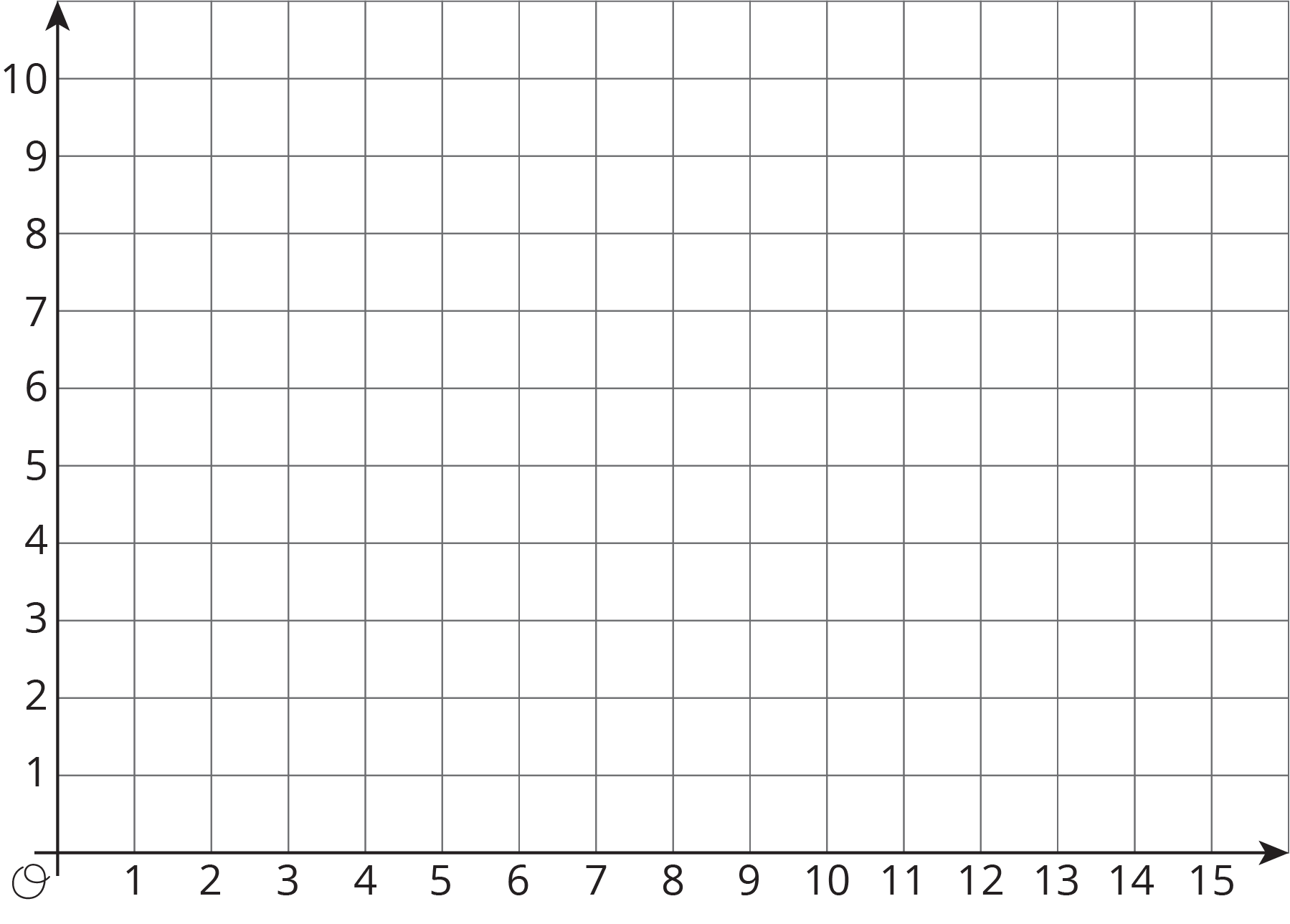

    A coordinate plane with the origin labeled “O”. The numbers 0 through 15 are indicated on the horizontal axis and the numbers 0 through 10 are indicated on the vertical axis.
  2. Tell your partner whether your line is horizontal or vertical, and have your partner guess the locations of your points by naming coordinates.

    If a guess is correct, put an X through the point. If your partner guessed a point that is on your line but not the point that you plotted, say, “That point is on my line, but is not one of my points.”

    Take turns guessing each other’s points, 3 guesses per turn.

Student Response

Student responses to this activity are available at one of our IM Certified Partners

Anticipated Misconceptions

Some students may not remember that the first coordinate in an ordered pair corresponds to the horizontal coordinate and the second coordinate in the ordered pair corresponds to the vertical coordinate. Display the ordered pair $(x,y)$ or $(\text{horizontal}, \text{vertical})$ to remind students of the order.

Activity Synthesis

The key takeaway of this discussion is that points on the same horizontal line share the same $y$ coordinate and points on the same vertical line share the same $x$ coordinate. Ask 3 or 4 students to share the coordinates of their 4 points. After each student shares, ask the rest of the class if the given points are on the same horizontal or vertical line and to explain how they know. To help guide the conversation, consider asking some of the following questions:

  • “How do you know the points fall on the same line?”
  • “How do you know the points are on a horizontal or vertical line?”
  • “Could you name other points on the same line?”
  • “How far is each of the points from one another?”
  • “How far is each point from the $x$-axis and $y$-axis?”

11.2: The Coordinate Plane (15 minutes)

Activity

The purpose of this activity is for students to extend the vertical and horizontal axes to include 4 quadrants just as they extended the number line to include negative numbers. Students are introduced to the term quadrant. Students plot and label coordinates using ordered pairs and identify their quadrants.

Launch

Introduce the concept of the 4-region coordinate plane by explaining that, just like we extended the number line include negative numbers, we can extend both the number lines of the coordinate plane (the axes) to include negative coordinates. Use the word quadrant to describe the four regions of the coordinate plane. It may be helpful to explain that the prefix "quad-" means 4 and give other examples from English and other languages that use the prefix (quadriceps, quadrilateral, cuatro). Give students 10 minutes to work followed by whole-class discussion.

Classes using the digital version have an interactive applet to use. Instead of naming the coordinates, students enter them into the Input Bar. If correct, the new points will hit the targets and turn them black.


Representation: Develop Language and Symbols. Activate or supply background knowledge. During the launch, take time to review terms that students will need to access for this activity. Invite students to suggest language or diagrams to include that will support their understanding of: vertical number line, horizontal number line.
Supports accessibility for: Conceptual processing; Language

Student Facing

  1. Image reads input, colon, ( 1 comma 3 ).

    The colored points on the coordinate plane are like targets. Hit each point by entering its coordinates as an ordered pair in the Input Bar, like this:

  2. What do you notice about the locations and ordered pairs of \(B\), \(C\), and \(D\)? How are they different from those for point \(A\)?
  3. Plot a point at \((\text-2, 5)\). Label it \(E\). Plot another point at \((3, \text-4.5)\). Label it \(F\).

  4. The coordinate plane is divided into four quadrants, I, II, III, and IV, as shown here.
    A coordinate plane, origin O. The area top & right of the origin is Quadrant 1, and counter-clockwise labeled quadrant 2, 3, 4.
    • \(G = (5, 2)\)
    • \(H=(\text-1, \text-5)\)
    • \(I=(7,\text-4)\)
    1. In which quadrant is \(G\) located? \(H\)? \(I\)?
    2. A point has a positive \(y\)-coordinate. In which quadrant could it be?

Student Response

Student responses to this activity are available at one of our IM Certified Partners

Launch

Introduce the concept of the 4-region coordinate plane by explaining that, just like we extended the number line include negative numbers, we can extend both the number lines of the coordinate plane (the axes) to include negative coordinates. Use the word quadrant to describe the four regions of the coordinate plane. It may be helpful to explain that the prefix "quad-" means 4 and give other examples from English and other languages that use the prefix (quadriceps, quadrilateral, cuatro). Give students 10 minutes to work followed by whole-class discussion.

Classes using the digital version have an interactive applet to use. Instead of naming the coordinates, students enter them into the Input Bar. If correct, the new points will hit the targets and turn them black.


Representation: Develop Language and Symbols. Activate or supply background knowledge. During the launch, take time to review terms that students will need to access for this activity. Invite students to suggest language or diagrams to include that will support their understanding of: vertical number line, horizontal number line.
Supports accessibility for: Conceptual processing; Language

Student Facing

  1. Label each point on the coordinate plane with an ordered pair.

    Graph with four points, A, B, C, and D.
  2. What do you notice about the locations and ordered pairs of \(B\), \(C\), and \(D\)? How are they different from those for point \(A\)?
  3. Plot a point at \((\text-2, 5)\). Label it \(E\). Plot another point at \((3, \text-4.5)\). Label it \(F\).
  4. The coordinate plane is divided into four quadrants, I, II, III, and IV, as shown here.

    A coordinate plane, origin O. The area top & right of the origin is Quadrant 1, and counter-clockwise labeled quadrant 2, 3, 4.



    \(G = (5, 2)\)

    \(H=(\text-1, \text-5)\)

    \(I=(7,\text-4)\)

  5. In which quadrant is point \(G\) located? Point \(H\)? Point \(I\)?
  6. A point has a positive \(y\)-coordinate. In which quadrant could it be?

Student Response

Student responses to this activity are available at one of our IM Certified Partners

Anticipated Misconceptions

Students may confuse the order of the coordinate pairs when plotting points. Direct students to look at their work with vertical and horizontal lines in the warm up to remind them which coordinate is vertical.

Students may locate -4.5 between -3 and -4, rather than between -4 and -5. Direct them to the number lines used in earlier lessons to remind them of locating non integer numbers on number lines.

Activity Synthesis

The most important idea for students to understand is that by extending the two number lines that form the coordinate axes for the first quadrant, we now have 4 quadrants. We describe points in these quadrants using negative and positive numbers as the \(x\) and \(y\) coordinates. Focus on responses from question 4 for discussion. Invite students to share their reasoning about how to identify the quadrants for the points \(G\), \(H\), and \(I\). As time allows, consider asking the following questions:

  • “If a point has a negative \(x\)-coordinate, what quadrant could it be in?”
  • “If a point has a negative \(y\)-coordinate, what quadrant could it be in?”
  • “If a point has a positive \(x\)-coordinate, what quadrant could it be in?”

To involve more students in the conversation, consider asking:

  • “Do you agree or disagree? Why?”
  • “Who can restate ___’s reasoning in a different way?”
  • “Does anyone want to add on to _____’s reasoning?”
Speaking: MLR8 Discussion Supports. To support students in producing statements about features of the quadrants that have negative and/or positive numbers provide sentence frames for students to use such as: “Point _____ is in quadrant _____ because _____.” This will support class discussion in providing low entry points for students to start speaking about their reasoning.
Design Principle(s): Support sense-making

11.3: Coordinated Archery (15 minutes)

Activity

In this activity, students select and describe points in different regions of the coordinate plane using ordered pairs. Students must name specific coordinates in order to hit different parts of an archery target embedded in a coordinate plane. All points within the archery target contain negative coordinates, allowing students to practice and build on what they were introduced to in the previous activity.

This activity was inspired by one created by Nathan Kraft https://teacher.desmos.com/activitybuilder/custom/563d705f36a7843710aba2ce.

Launch

Arrange students in groups of 2. It may be necessary to introduce students to what an archery target looks like and how it is scored. More points are scored the closer to the center the arrow lands. Remind students to label the axes with \(x\) and \(y\) so that they can accurately describe the coordinates as \(x\)-coordinates or \(y\)-coordinates. Give students 8 minutes of quiet work time followed by 2 minutes of partner discussion for students to check whether their partner has made valid choices for coordinates. Follow with a whole-class discussion.

Students using the digital activity will be able to plot points using an applet and then determine if their points are in the desired area. To enter points, students enter an ordered pair of coordinates in the table.

Listening, Representing: MLR2 Collect and Display. As students work, listen for, collect and display vocabulary and phrases students use to describe the coordinates, such as \(x\)-coordinate, \(y\)-coordinate, and quadrant. Update the list with student language and questions from student discussions that describe where to place the points on the graph. Remind students to borrow language from the display as needed. Teachers can use the list to check for student progress and misunderstandings. This will help students develop mathematical language for the class discussions that describe the location of points.
Design Principle(s): Support sense-making

Student Facing

Here is an image of an archery target on a coordinate plane. The scores for landing an arrow in the colored regions are:

  • Yellow: 10 points
  • Red: 8 points
  • Blue: 6 points
  • Green: 4 points
  • White: 2 points

Name the coordinates for a possible landing point to score:

  1. 6 points
  2. 10 points
  3. 2 points
  4. No points
  5. 4 points
  6. 8 points

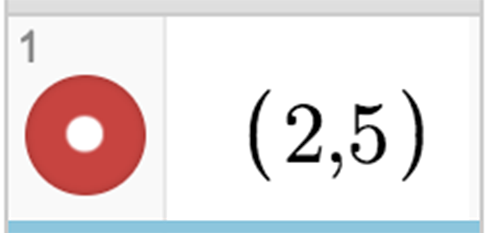

Image has two columns. First column red circle icon, second column, ( 2 comma 5 ).

Type the coordinates for each point in a separate line, using parentheses. Like this:

Student Response

Student responses to this activity are available at one of our IM Certified Partners

Launch

Arrange students in groups of 2. It may be necessary to introduce students to what an archery target looks like and how it is scored. More points are scored the closer to the center the arrow lands. Remind students to label the axes with \(x\) and \(y\) so that they can accurately describe the coordinates as \(x\)-coordinates or \(y\)-coordinates. Give students 8 minutes of quiet work time followed by 2 minutes of partner discussion for students to check whether their partner has made valid choices for coordinates. Follow with a whole-class discussion.

Students using the digital activity will be able to plot points using an applet and then determine if their points are in the desired area. To enter points, students enter an ordered pair of coordinates in the table.

Listening, Representing: MLR2 Collect and Display. As students work, listen for, collect and display vocabulary and phrases students use to describe the coordinates, such as \(x\)-coordinate, \(y\)-coordinate, and quadrant. Update the list with student language and questions from student discussions that describe where to place the points on the graph. Remind students to borrow language from the display as needed. Teachers can use the list to check for student progress and misunderstandings. This will help students develop mathematical language for the class discussions that describe the location of points.
Design Principle(s): Support sense-making

Student Facing

Here is an image of an archery target on a coordinate plane. The scores for landing an arrow in the colored regions are shown.

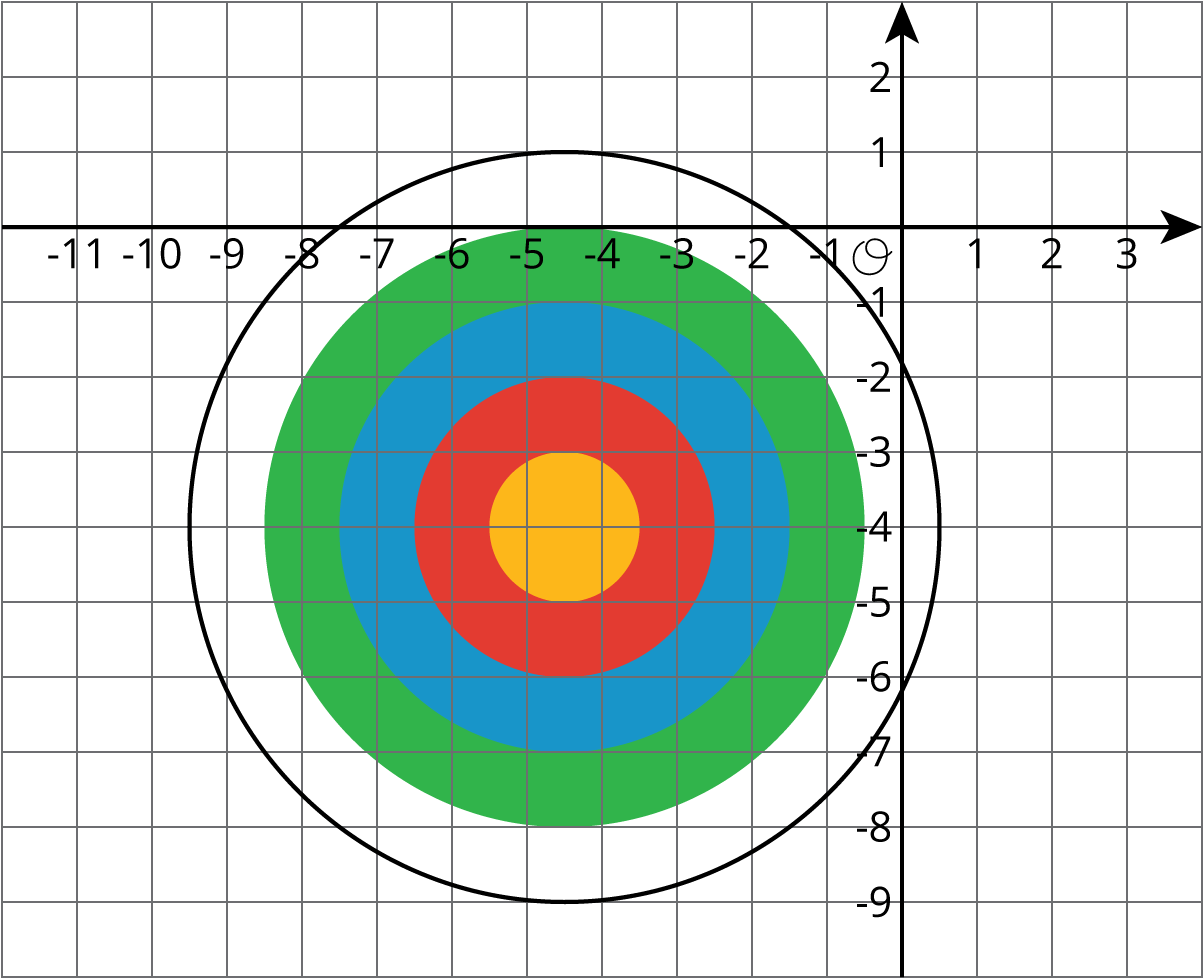

A target on a coordinate plane, concentric circles indicate score values, please ask for additional help.
  • Yellow: 10 points
  • Red: 8 points
  • Blue: 6 points
  • Green: 4 points
  • White: 2 points

Name the coordinates for a possible landing point to score:

  1. 6 points
  2. 10 points
  3. 2 points
  4. No points
  5. 4 points
  6. 8 points

Student Response

Student responses to this activity are available at one of our IM Certified Partners

Student Facing

Are you ready for more?

Pretend you are stuck in a coordinate plane. You can only take vertical and horizontal steps that are one unit long.

  1. How many ways are there to get from the point \((\text{-3}, 2)\) to \((\text{-1}, \text{-1})\) if you will only step down and to the right?
  2. How many ways are there to get from the point \((\text{-1}, \text{-2})\) to \((4,0)\) if you can only step up and to the right?
  3. Make up some more problems like this and see what patterns you notice.

Student Response

Student responses to this activity are available at one of our IM Certified Partners

Activity Synthesis

The main goal of discussion is to allow students to describe points in the plane that involve negative coordinates. Display the archery target for all to see. Ask students to share their responses for coordinates in the various regions of the target and record them for all to see. Record the points exactly as students describe them and push students to be precise if there was a mistake. Ask whether it's possible to get even closer to the exact center of the target. If not mentioned by students, suggest using decimals or fractions as coordinates.

Lesson Synthesis

Lesson Synthesis

In this lesson, students extended the axes of the coordinate plane to include negative coordinates. Consider asking students the following questions to summarize the main ideas of the lesson:

  • What are the names of the quadrants and where are they in the coordinate plane? (The quadrants are called I, II, III, and IV. They go in counterclockwise order from top right to top left to bottom left to bottom right.)
  • What quadrant is the point \((\text-4, 5)\) in? How do you know? (That point is in quadrant II. The \(x\)-value is negative, so the point is left of the \(y\)-axis, and the \(y\)-value is positive so the point is above the \(x\)-axis.)
  • What quadrant is the point \((5, \text-4)\) in? How do you know? (That point is in quadrant IV. The \(x\)-value is positive, so the point is right of the \(y\)-axis, and the \(y\)-value is negative, so the point is below the \(x\)-axis.)

If time allows, ask students to make up their own challenges for the class with the targets. Invite other students pick points that meet the requirement of the challenges. For example, one challenge could be to hit a point that is exactly between two colors. Another might be to hit the target in the bullseye 3 times on a horizontal line.

11.4: Cool-down - Target Practice (5 minutes)

Cool-Down

Cool-downs for this lesson are available at one of our IM Certified Partners

Student Lesson Summary

Student Facing

Just as the number line can be extended to the left to include negative numbers, the \(x\)- and \(y\)-axis of a coordinate plane can also be extended to include negative values.

Coordinate plane, x and y axis, origin O, points marked and labeled. A = (2 comma 3), B = (negative 4 comma 1), C = (negative 3 point 5 comma negative 3).

The ordered pair \((x,y)\) can have negative \(x\)- and \(y\)-values. For \(B= (\text-4,1)\), the \(x\)-value of -4 tells us that the point is 4 units to the left of the \(y\)-axis. The \(y\)-value of 1 tells us that the point is one unit above the \(x\)-axis.

The same reasoning applies to the points \(A\) and \(C\). The \(x\)- and \(y\)-coordinates for point \(A\) are positive, so \(A\) is to the right of the \(y\)-axis and above the \(x\)-axis. The \(x\)- and \(y\)-coordinates for point \(C\) are negative, so \(C\) is to the left of the \(y\)-axis and below the \(x\)-axis.
