Lesson 9

Creating Scale Drawings

9.1: Number Talk: Which is Greater? (5 minutes)

Warm-up

In this number talk, students compare quantities involving division with whole numbers, decimals, and fractions. In each case, a strategy is available that does not require calculating the quantities. When the quantities are complex, there is motivation for using the structure of the expressions to compare (MP7) since the actual calculations would be more time-consuming.

Launch

Display one problem at a time. Give students 1 minute of quiet think time per problem and ask them to give a signal when they have an answer and a strategy. Follow with a whole-class discussion.

Representation: Internalize Comprehension. To support working memory, provide students with sticky notes or mini whiteboards.
Supports accessibility for: Memory; Organization

Student Facing

Without calculating, decide which quotient is larger.

\(11 \div 23\) or \(7 \div 13\)

\(0.63 \div 2\) or \(0.55 \div 3\)

\(15 \div \frac{1}{3}\) or \(15 \div \frac{1}{4}\)

Student Response

Student responses to this activity are available at one of our IM Certified Partners

Anticipated Misconceptions

Students may misinterpret the last question as \(15 \boldcdot \frac{1}{3}\) or \(15 \boldcdot \frac{1}{4}\). Point out that one way to interpret the first expression is “How many one-thirds are there in 15?”

Activity Synthesis

Make sure to bring out different approaches for comparing the quantities, avoiding direct calculation where possible:

  • \(\frac{7}{13}\) and \(\frac{11}{23}\) can both be compared with \(\frac{1}{2}\), or students can find a common numerator or denominator, but this requires more calculations.
  • \(0.63\) is greater than \(0.55\), and 2 is less than 3, or students might notice that \(0.63 \div 2\) is greater than 0.3 while \(0.55 \div 3\) is less than 0.2.
  • Dividing by \(\frac{1}{4}\) is equivalent to multiplying by 4 while dividing by \(\frac{1}{3}\) is equivalent to multiplying by 3, so \(15 \div \frac{1}{4}\) is greater than \(15\div \frac{1}{3} \).
Speaking: MLR8 Discussion Supports.: Display sentence frames to support students when they explain their strategy. For example, "First, I _____ because . . ." or "I noticed _____ so I . . . ." Some students may benefit from the opportunity to rehearse what they will say with a partner before they share with the whole class.
Design Principle(s): Optimize output (for explanation)

9.2: Bedroom Floor Plan (10 minutes)

Activity

In previous lessons in this unit, students have investigated the meaning of scale drawings and have used them to solve problems. The purpose of this activity is to prepare students for creating their own scale drawing. The discussion highlights that a scale can be expressed in different ways, or that different pairs of numbers may be used to show the same relationship. For example, a scale of 4 cm to 1 m is equivalent to a scale of 1 cm to 0.25 m.

As students work, notice those who use the language of scale appropriately, e.g., by saying that “every 4 cm on the drawing represents 1 m,” or “every 0.25 m shows up as 1 cm on the drawing.” Also notice those who do and do not attend to the relationship between actual and scaled lengths in finding missing measurements.

Launch

Tell students that a floor plan is a top-view drawing that shows a layout of a room or a building. Floor plans are usually scale drawings. Explain that sometimes the scale of a drawing is not specified, but we can still tell the scale if we know both the scaled and actual lengths.

Arrange students in groups of 2. Give students 4–5 minutes of quiet work time and partner discussion.

For students using the Digital Activity, teachers can allow exploration with the applet during think time.

Student Facing

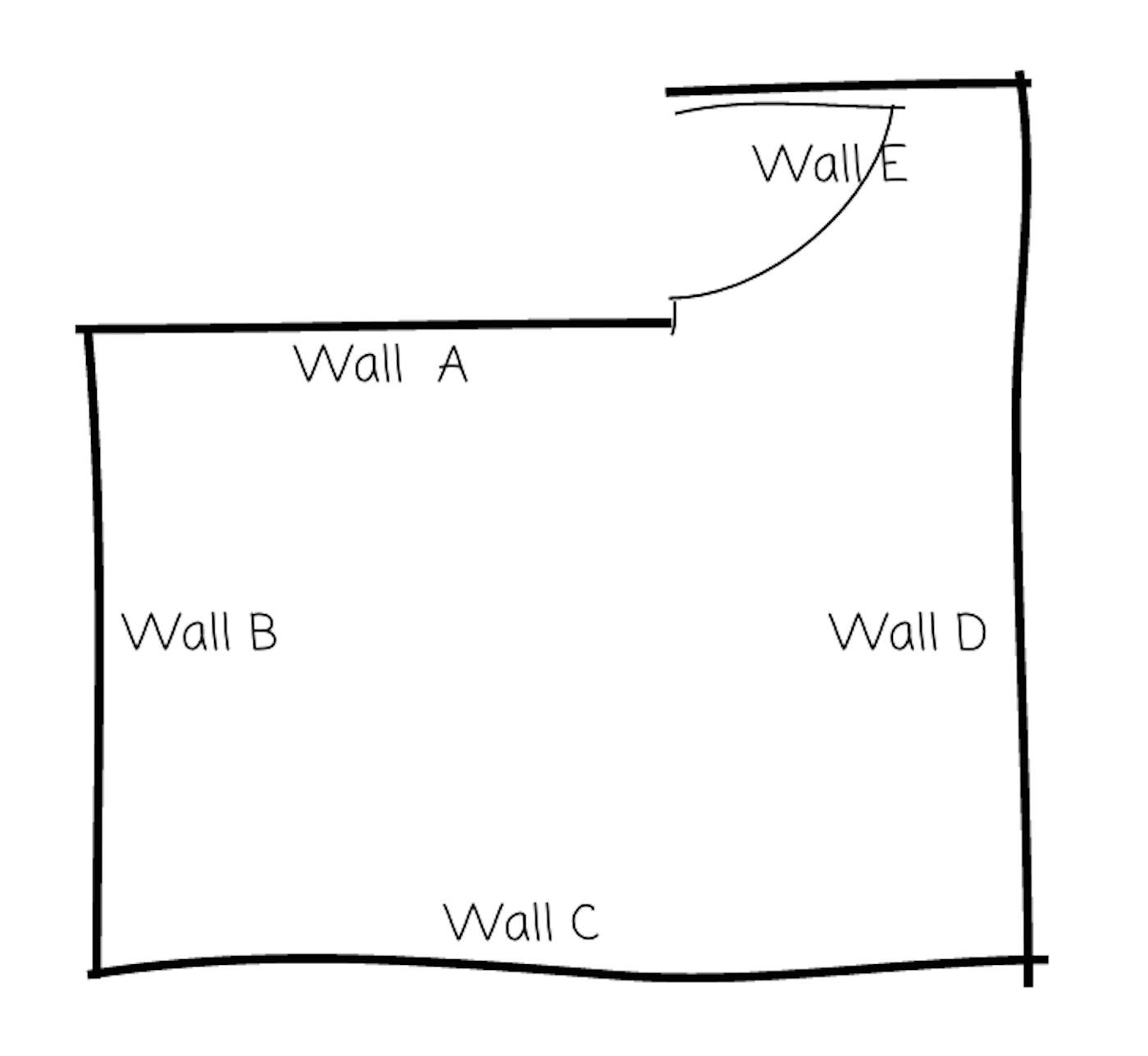

Here is a rough sketch of Noah’s bedroom (not a scale drawing).

Rough sketch of Noah's bedroom.

Noah wants to create a floor plan that is a scale drawing.

  1. The actual length of Wall C is 4 m. To represent Wall C, Noah draws a segment 16 cm long. What scale is he using? Explain or show your reasoning.
  2. Find another way to express the scale.
  3. Discuss your thinking with your partner. How do your scales compare?
  4. The actual lengths of Wall A, Wall B, and Wall D are 2.5 m, 2.75 m, and 3.75 m. Determine how long these walls will be on Noah’s scale floor plan.
  5. Use the Point tool
    Circle labeled A.
    and the Segment tool
    A picture of a line segment. Endpoints are blue. Segment is black.
    to draw the walls of Noah's scale floor plan in the applet.

Student Response

Student responses to this activity are available at one of our IM Certified Partners

Student Facing

Are you ready for more?

If Noah wanted to draw another floor plan on which Wall C was 20 cm, would 1 cm to 5 m be the right scale to use? Explain your reasoning.

Student Response

Student responses to this activity are available at one of our IM Certified Partners

Launch

Tell students that a floor plan is a top-view drawing that shows a layout of a room or a building. Floor plans are usually scale drawings. Explain that sometimes the scale of a drawing is not specified, but we can still tell the scale if we know both the scaled and actual lengths.

Arrange students in groups of 2. Give students 4–5 minutes of quiet work time and partner discussion.

For students using the Digital Activity, teachers can allow exploration with the applet during think time.

Student Facing

Here is a rough sketch of Noah’s bedroom (not a scale drawing).

Rough sketch of Noah's bedroom.

Noah wants to create a floor plan that is a scale drawing.

  1. The actual length of Wall C is 4 m. To represent Wall C, Noah draws a segment 16 cm long. What scale is he using? Explain or show your reasoning.
  2. Find another way to express the scale.
  3. Discuss your thinking with your partner. How do your scales compare?
  4. The actual lengths of Wall A and Wall D are 2.5 m and 3.75 m. Determine how long these walls will be on Noah’s scale floor plan. Explain or show your reasoning.

Student Response

Student responses to this activity are available at one of our IM Certified Partners

Student Facing

Are you ready for more?

If Noah wanted to draw another floor plan on which Wall C was 20 cm, would 1 cm to 5 m be the right scale to use? Explain your reasoning.

Student Response

Student responses to this activity are available at one of our IM Certified Partners

Anticipated Misconceptions

Students may see that one value is 4 times the other and write the scale backwards, as “1 cm to 4 m.” Prompt students to pay attention to the units and the meaning of each number.

Activity Synthesis

Focus the class discussion on two things:

  1. Different ways to express the same scale
  2. The relationship between scaled and actual lengths

Invite a couple of students to share how they determined the scale of the drawing. Students are likely to come up with several variations, e.g., 4 cm to 1 m, 1 cm to 0.25 m, 16 cm to 4 m, etc. Discuss how all of these express the same relationship and are therefore equivalent, especially how 4 cm to 1 m is equivalent to 1 cm to 0.25 m (or 1 cm to \(\frac14\) m).

Explain that although we can express a scale in multiple but equivalent ways, 1) scales are often simplified to show the actual distance for 1 scaled unit, and 2) it is common to express at least one distance (usually the scaled distance) as a whole number or a benchmark fraction (e.g., \(\frac 14\), \(\frac12\)) or a benchmark decimal (e.g., 0.25, 0.5, 0.75).

Given their work on scaled copies, students may be inclined to say that the scaled and actual lengths are related by a scale factor of 4. Ask: “Are the actual lengths four times the lengths on the drawing? Why or why not?” Point out that because the units for the two quantities are different, multiplying a scaled length in centimeters (e.g., 2.5 cm) by 4 will yield another length in centimeters (10 cm), which is not the actual length. It is not essential for students to know that the scale factor here is 250. That work will be explored in an upcoming lesson.

Speaking, Listening: MLR7 Compare and Connect. As students prepare a visual display of how they created the floor plan, look for students who expressed the scale in different ways. As students investigate each other’s work, ask them to share what is especially clear about a particular approach. Then encourage students to explain why there are various yet equivalent ways to express the scale, such as 4 cm to 1 m and 1 cm to 0.25 m. Emphasize the language used to make sense of the different ways to express the same scale (e.g., Since 4 cm on the floor plan represents 1 m in the actual room, then 1 cm on the floor plan represents \(\frac14\) of 1 m, which is 0.25 m.) This will reinforce students’ use of mathematical language related to equivalent scales.
Design Principles(s): Cultivate conversation; Maximize meta-awareness

9.3: Two Maps of Utah (15 minutes)

Activity

In the previous activity, students calculated the scaled distances they would need to create a scale drawing, but did not actually create the scale drawing. In this activity, they create two different scale drawings of the state of Utah and notice how the scale impacts the drawing. One of the reasons choice of a scale is important is that we want to see the appropriate level of detail within a fixed space.

Launch

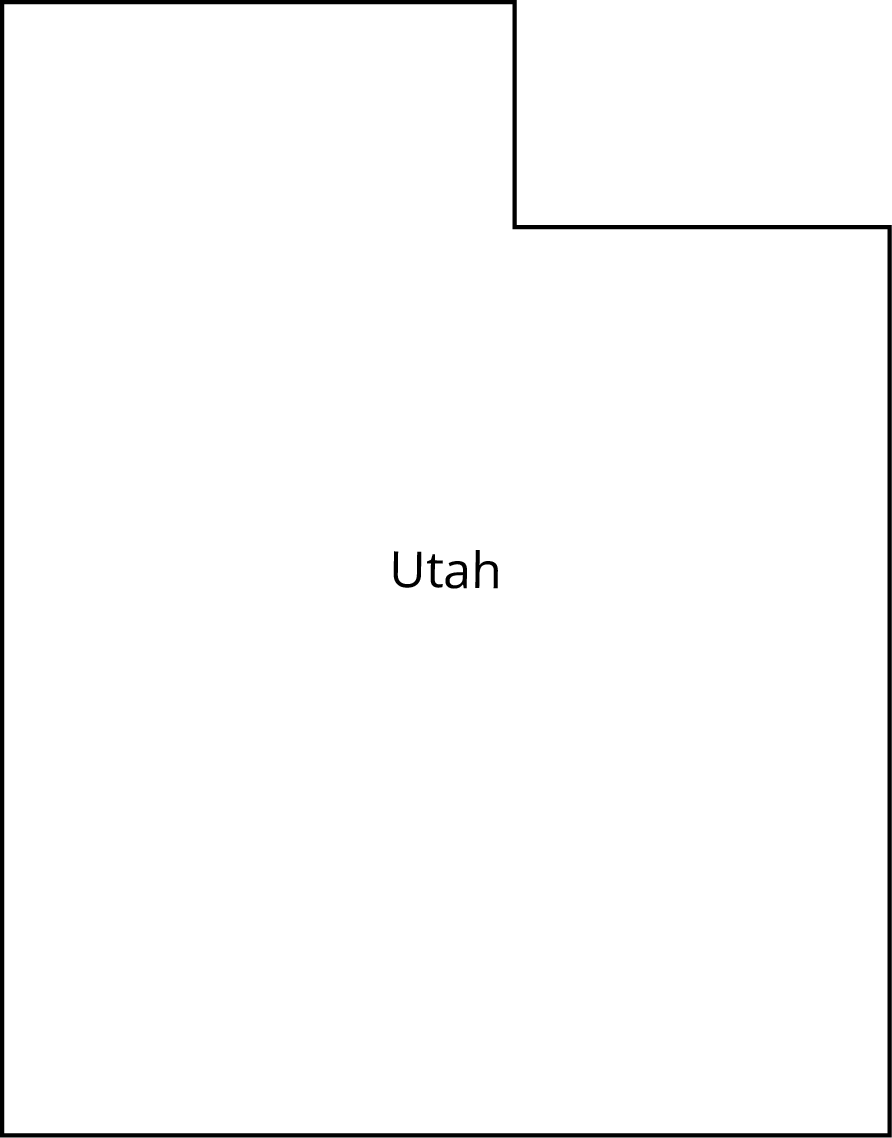

Display the outline of Utah and ask students “What do you notice? What do you wonder?”

Polygon labeled Utah.

Ask students to describe the shape: a rectangle with a smaller rectangle removed in the upper right corner.

Give students 5–6 minutes of quiet work time followed by whole-class discussion.

Student Facing

A rectangle around Utah is about 270 miles wide and about 350 miles tall. The upper right corner that is missing is about 110 miles wide and about 70 miles tall.

  1. Make a scale drawing of Utah where 1 centimeter represents 50 miles.

    Make a scale drawing of Utah where 1 centimeter represents 75 miles.

  2. How do the two drawings compare? How does the choice of scale influence the drawing?

Student Response

Student responses to this activity are available at one of our IM Certified Partners

Anticipated Misconceptions

Some students may get a shape that is not closed or does not have right angles if they did not measure carefully enough. Prompt them to double-check their measurement for a particular side of the state if you can easily tell which side is drawn incorrectly.

Students may think that a scale of 1 centimeter to 50 miles will produce a smaller scale drawing than a scale of 1 centimeter to 75 miles (because 50 is less than 75). Ask them how many centimeters it takes to represent 75 miles if 1 centimeter represents 50 miles (1.5) and how many centimeters it takes to represent 75 miles if 1 centimeter represents 75 miles (1).

Activity Synthesis

Ask students what the two scale drawings share in common. Answers include: they both represent Utah, they both have the same shape, and they both can be used to measure distances in the actual state of Utah.

Ask students how the two scale drawings differ. The one at a scale of 1 centimeter to 50 miles is larger than the one at a scale of 1 centimeter to 75 miles.

Some students may notice that the scale drawing at a scale of 1 centimeter to 75 miles is actually a scaled copy of the other drawing, with a scale factor of 1.5. If so, ask them to share their observation linking scale drawings with scale copies.

Representation: Internalize Comprehension. Use color coding and annotations to highlight connections between representations in a problem. For example, annotate a display of the two scale drawings to make visible what the drawings share in common, and how they differ.
Supports accessibility for: Visual-spatial processing
Reading, Speaking: MLR3 Clarify, Critique, Correct. Before presenting the correct scale drawings of Utah, present an incorrect drawing and written explanation. For example, present a rectangle approximately 5.4 cm wide and 7 cm tall that is missing an upper right corner which is approximately 1.4 cm wide and 2.2 cm tall, and provide the statement: “Since 1 cm represents 50 miles, I divided 110 and 70 each by 50, and got 2.2 and 1.4. The small rectangle that is missing is 2.2 cm tall and 1.4 cm wide.” Ask students to identify the error, critique the reasoning, and revise the statement so that the drawing is a scale drawing of Utah. This will remind students about the characteristics of scale drawings discussed in previous lessons and how to determine whether a drawing qualifies as a scale drawing of an actual object.
Design Principle(s): Optimize output (for explanation); Maximize meta-awareness

Lesson Synthesis

Lesson Synthesis

The size of the scale determines the size of the drawing. You can have different-sized scale drawings of the same actual object, but the size of the actual object doesn’t change.

  • “Suppose there are two scale drawings of the same house. One uses the scale of 1 cm to 2 m, and the other uses the scale 1 cm to 4 m. Which drawing is larger? Why?” (The one with the 1 cm to 2 m scale is larger, because it takes 2 cm on the drawing to represent 4 m of actual length.)
  • “Another scale drawing of the house uses the scale of 5 cm to 10 m. How does its size compare to the other two?” (It is the same size as the drawing with the 1 cm to 2 m scale.)

Sometimes two different scales are actually equivalent, such as 5 cm to 10 m and 1 cm to 2 m. It is common to write a scale so that it tells you what one unit on the scale drawing represents (for example, 1 cm to 2 m).

9.4: Cool-down - Drawing a Pool (5 minutes)

Cool-Down

Cool-downs for this lesson are available at one of our IM Certified Partners

Student Lesson Summary

Student Facing

If we want to create a scale drawing of a room's floor plan that has the scale “1 inch to 4 feet,” we can divide the actual lengths in the room (in feet) by 4 to find the corresponding lengths (in inches) for our drawing.

A scale drawing of a room's floor plan. A scale is shown indicating 1 inch equals 4 feet.

Suppose the longest wall is 15 feet long. We should draw a line 3.75 inches long to represent this wall, because \(15 \div 4 = 3.75\).

There is more than one way to express this scale. These three scales are all equivalent, since they represent the same relationship between lengths on a drawing and actual lengths:

  • 1 inch to 4 feet
  • \(\frac12\) inch to 2 feet
  • \(\frac14\) inch to 1 foot

Any of these scales can be used to find actual lengths and scaled lengths (lengths on a drawing). For instance, we can tell that, at this scale, an 8-foot long wall should be 2 inches long on the drawing because \(\frac14 \boldcdot 8 = 2\).

The size of a scale drawing is influenced by the choice of scale. For example, here is another scale drawing of the same room using the scale 1 inch to 8 feet.

A scale drawing of a room's floor plan. A scale is shown indicating 1 inch equals 8 feet.

Notice this drawing is smaller than the previous one. Since one inch on this drawing represents twice as much actual distance, each side length only needs to be half as long as it was in the first scale drawing.
