Lesson 3

Equations for Functions

Let’s find outputs from equations.

3.1: A Square’s Area

Fill in the table of input-output pairs for the given rule. Write an algebraic expression for the rule in the box in the diagram.

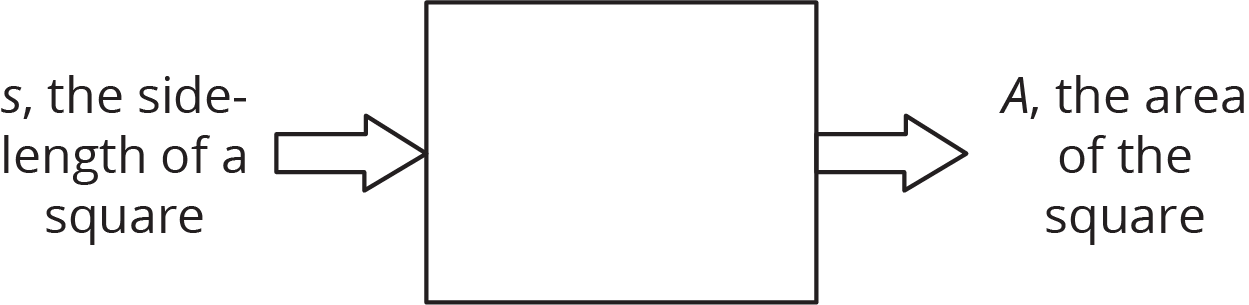

Input-output rule diagram. Input, s, the side-length of a square, right arrow, box for the rule is left blank, right arrow, output, A, the area of the square.
input output
8
2.2
\(12\frac14\)
\(s\)



3.2: Diagrams, Equations, and Descriptions

Record your answers to these questions in the table provided.

  1. Match each of these descriptions with a diagram:
    1. the circumference, \(C\), of a circle with radius, \(r\)
    2. the distance in miles, \(d\), that you would travel in \(t\) hours if you drive at 60 miles per hour
    3. the output when you triple the input and subtract 4
    4. the volume of a cube, \(v\) given its edge length, \(s\)
  2. Write an equation for each description that expresses the output as a function of the input.
  3. Find the output when the input is 5 for each equation.
  4. Name the independent and dependent variables of each equation.

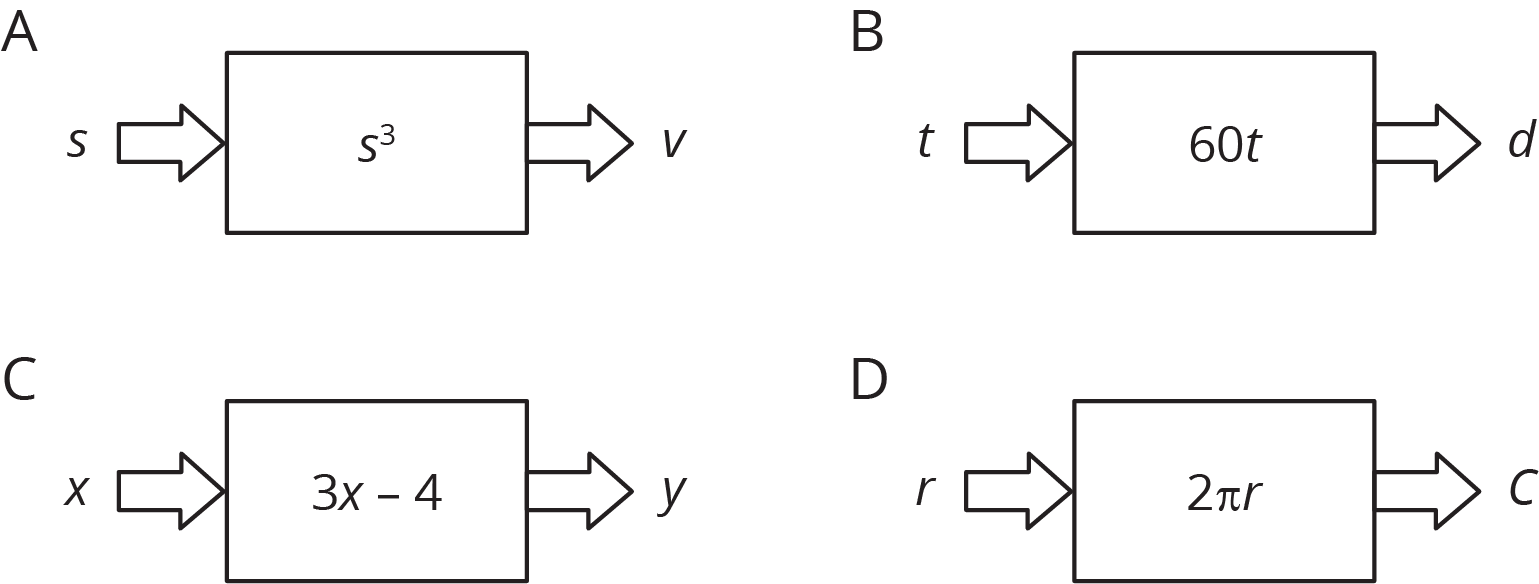

Four input-output rule diagrams.
description            a                        b                        c                       d
diagram
equation
input = 5
output = ?
independent
variable
dependent
variable


Choose a 3-digit number as an input.

Apply the following rule to it, one step at a time:

  • Multiply your number by 7.
  • Add one to the result.
  • Multiply the result by 11.
  • Subtract 5 from the result.
  • Multiply the result by 13
  • Subtract 78 from the result to get the output.

Can you describe a simpler way to describe this rule? Why does this work?

3.3: Dimes and Quarters

Jada had some dimes and quarters that had a total value of $12.50. The relationship between the number of dimes, \(d\), and the number of quarters, \(q\), can be expressed by the equation \(0.1d + 0.25q = 12.5\).

  1. If Jada has 4 quarters, how many dimes does she have?
  2. If Jada has 10 quarters, how many dimes does she have?
  3. Is the number of dimes a function of the number of quarters? If yes, write a rule (that starts with \(d = \)...) that you can use to determine the output, \(d\), from a given input, \(q\). If no, explain why not.
  4. If Jada has 25 dimes, how many quarters does she have?
  5. If Jada has 30 dimes, how many quarters does she have?
  6. Is the number of quarters a function of the number of dimes? If yes, write a rule (that starts with \(q=\)...) that you can use to determine the output, \(q\), from a given input, \(d\). If no, explain why not.

Summary

We can sometimes represent functions with equations. For example, the area, \(A\), of a circle is a function of the radius, \(r\), and we can express this with an equation: \(\displaystyle A=\pi r^2\)

We can also draw a diagram to represent this function:

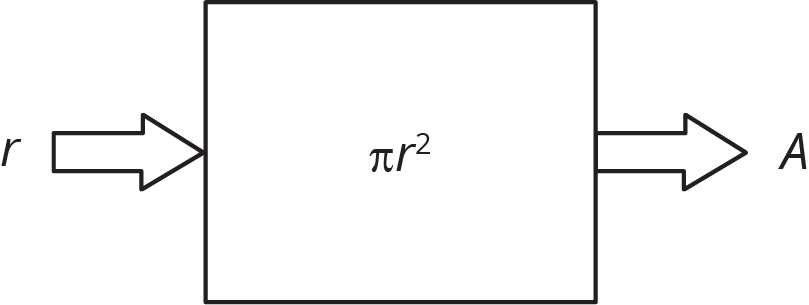

Input-output rule diagram. Input, r, right arrow, pi r squared, right arrow, A.

In this case, we think of the radius, \(r\), as the input, and the area of the circle, \(A\), as the output. For example, if the input is a radius of 10 cm, then the output is an area of \(100\pi\) cm2, or about 314 square cm. Because this is a function, we can find the area, \(A\), for any given radius, \(r\).

Since it is the input, we say that \(r\) is the independent variable and, as the output, \(A\) is the dependent variable.

Sometimes when we have an equation we get to choose which variable is the independent variable. For example, if we know that

\(\displaystyle 10A-4B=120\)

then we can think of \(A\) as a function of \(B\) and write

\(\displaystyle A=0.4B+12\)

or we can think of \(B\) as a function of \(A\) and write

\(\displaystyle B=2.5A-30\)

Video Summary

Glossary Entries

  • dependent variable

    A dependent variable represents the output of a function.

    For example, suppose we need to buy 20 pieces of fruit and decide to buy apples and bananas. If we select the number of apples first, the equation \(b=20-a\) shows the number of bananas we can buy. The number of bananas is the dependent variable because it depends on the number of apples.

  • independent variable

    An independent variable represents the input of a function.

    For example, suppose we need to buy 20 pieces of fruit and decide to buy some apples and bananas. If we select the number of apples first, the equation \(b=20-a\) shows the number of bananas we can buy. The number of apples is the independent variable because we can choose any number for it.

  • radius

    A radius is a line segment that goes from the center to the edge of a circle. A radius can go in any direction. Every radius of the circle is the same length. We also use the word radius to mean the length of this segment.

    For example, \(r\) is the radius of this circle with center \(O\).

    a circle with a labeled radius
