Lesson 14
Finding Cylinder Dimensions
Let’s figure out the dimensions of cylinders.
14.1: A Cylinder of Unknown Height
What is a possible volume for this cylinder if the diameter is 8 cm? Explain your reasoning.
14.2: What’s the Dimension?

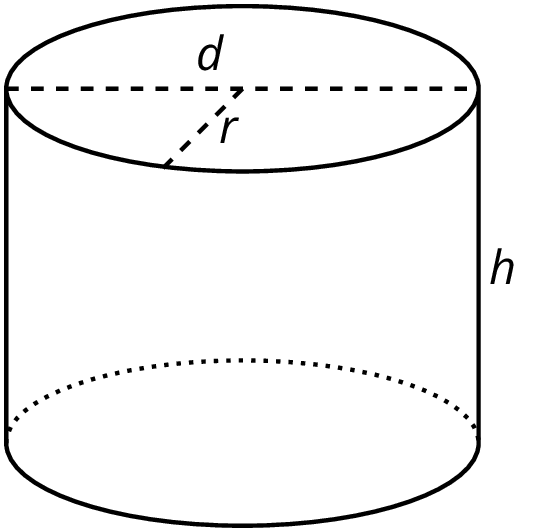

The volume \(V\) of a cylinder with radius \(r\) is given by the formula \(V=\pi r^2h\).

The volume of this cylinder with radius 5 units is \(50\pi\) cubic units. This statement is true: \( 50\pi = 5^2 \pi h\)
What does the height of this cylinder have to be? Explain how you know.

The volume of this cylinder with height 4 units is \(36\pi\) cubic units. This statement is true: \(36\pi = r^2 \pi 4\)
What does the radius of this cylinder have to be? Explain how you know.
Suppose a cylinder has a volume of \(36\pi\) cubic inches, but it is not the same cylinder as the one you found earlier in this activity.
 What are some possibilities for the dimensions of the cylinder?
 How many different cylinders can you find that have a volume of \(36\pi\) cubic inches?
14.3: Cylinders with Unknown Dimensions
Each row of the table has information about a particular cylinder. Complete the table with the missing dimensions.
diameter (units)  radius (units)  area of the base (square units)  height (units)  volume (cubic units)

3  5
12  \(108\pi\)
11  \(99\pi\)
8  \(16\pi\)
100  \(16\pi\)
10  \(20\pi\)
20  314
\(b\)  \(\pi \boldcdot b\boldcdot a^2\)
Summary
In an earlier lesson we learned that the volume, \(V\), of a cylinder with radius \(r\) and height \(h\) is
\(\displaystyle V=\pi r^2 h\)
We say that the volume depends on the radius and height, and if we know the radius and height, we can find the volume. It is also true that if we know the volume and one dimension (either radius or height), we can find the other dimension.
For example, imagine a cylinder that has a volume of \(500\pi\) cm^{3} and a radius of 5 cm, but the height is unknown. From the volume formula we know that
\(\displaystyle 500\pi=\pi \boldcdot 25 \boldcdot h\)
must be true. Looking at the structure of the equation, we can see that \(500 = 25h\). That means that the height has to be 20 cm, since \(500\div 25 = 20\).
Now imagine another cylinder that also has a volume of \(500\pi\) cm^{3} with an unknown radius and a height of 5 cm. Then we know that
\(\displaystyle 500\pi=\pi\boldcdot r^2\boldcdot 5\)
must be true. Looking at the structure of this equation, we can see that \(r^2 = 100\). So the radius must be 10 cm.
Glossary Entries
 cone
A cone is a threedimensional figure like a pyramid, but the base is a circle.
 cylinder
A cylinder is a threedimensional figure like a prism, but with bases that are circles.
 sphere
A sphere is a threedimensional figure in which all crosssections in every direction are circles.
