Lesson 15

The Volume of a Cone

Let’s explore cones and their volumes.

15.1: Which Has a Larger Volume?

The cone and cylinder have the same height, and the radii of their bases are equal.

  1. Which figure has a larger volume?
  2. Do you think the volume of the smaller one
    is more or less than \(\frac12\) the volume of the
    larger one? Explain your reasoning.
  3. Sketch two different sized cones. The oval doesn’t have to be on the bottom! For each drawing, label the cone’s radius with \(r\) and height with \(h\).

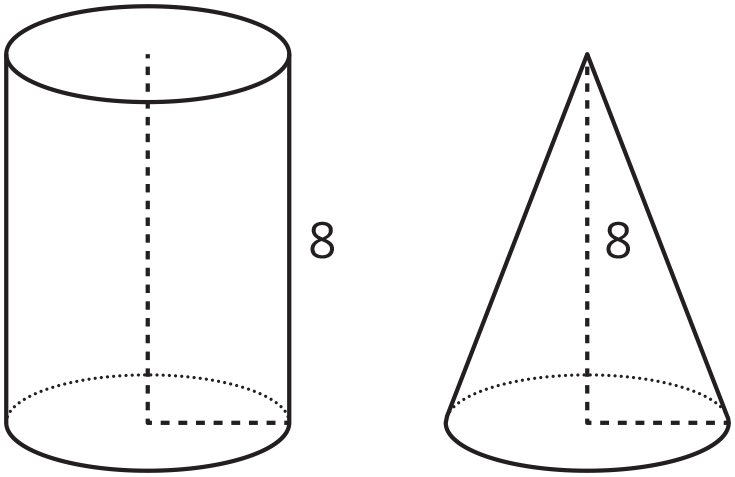

A right circular cylinder and a right circular cone. Both the cylinder and the cone have a height of 8.

 Here is a method for quickly sketching a cone:

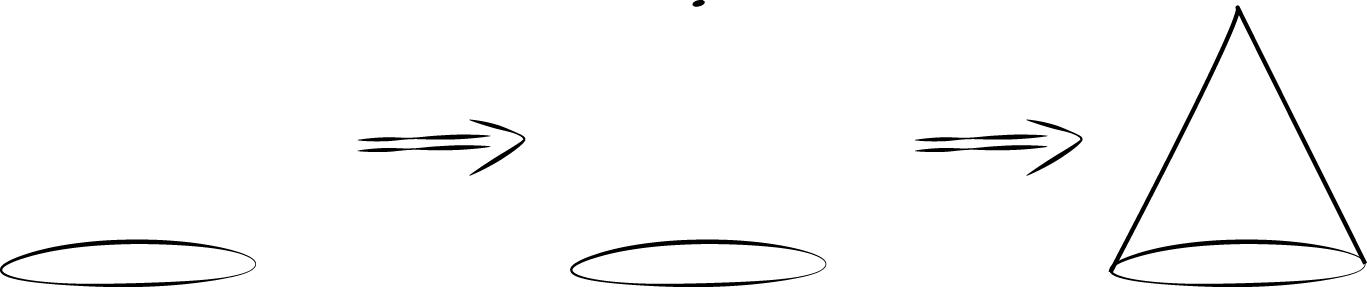

Three drawings. First, drawing of an oval. Second, the oval and a point directly above. Third, the oval, the point above, and two line segments drawn from the point to the edges of the oval.
  • Draw an oval.
  • Draw a point centered above the oval.
  • Connect the edges of the oval to the point.
  • Which parts of your drawing would be hidden
    behind the object? Make these parts dashed lines.

15.2: From Cylinders to Cones

A cone and cylinder have the same height and their bases are congruent circles.

  1. If the volume of the cylinder is 90 cm3, what is the volume of the cone?
  2. If the volume of the cone is 120 cm3, what is the volume of the cylinder?
  3. If the volume of the cylinder is \(V=\pi r^2h\), what is the volume of the cone? Either write an expression for the cone or explain the relationship in words.
A right cirular cylinder and a right circular cone. Both the cylinder and the cone have a height labeled h and have a radius labeled r.



15.3: Calculate That Cone

  1. Here is a cylinder and cone that have the same height and the same base area.

    What is the volume of each figure? Express your answers in terms of \(\pi\).

    A cylinder and a cone. Cylinder has diameter 10 and height 4. Cone has height and radius drawn with dotted lines, but not labeled.
  2. Here is a cone.
    1. What is the area of the base? Express your answer in terms of \(\pi\).
    2. What is the volume of the cone? Express your answer in terms of \(\pi\).
    A right circular cone with a height of 8 and a radius of 6.
  3. A cone-shaped popcorn cup has a radius of 5 centimeters and a height of 9 centimeters. How many cubic centimeters of popcorn can the cup hold? Use 3.14 as an approximation for \(\pi\), and give a numerical answer.





A grain silo has a cone shaped spout on the bottom in order to regulate the flow of grain out of the silo. The diameter of the silo is 8 feet. The height of the cylindrical part of the silo above the cone spout is 12 feet while the height of the entire silo is 16 feet.

How many cubic feet of grain are held in the cone spout of the silo? How many cubic feet of grain can the entire silo hold?

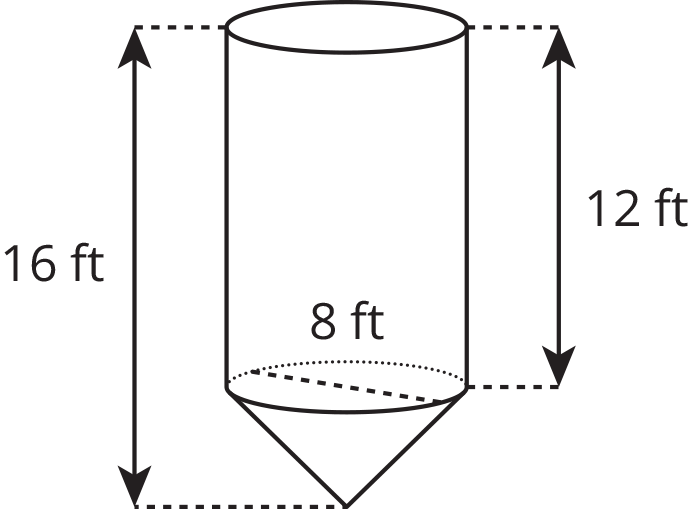

Grain silo, cone shaped spout on the bottom of the cylindrical silo. Silo, diameter 8 feet, height 12 feet. Height of the entire silo, 16 feet.

Summary

If a cone and a cylinder have the same base and the same height, then the volume of the cone is \(\frac{1}{3}\) of the volume of the cylinder. For example, the cylinder and cone shown here both have a base with radius 3 feet and a height of 7 feet.

The cylinder has a volume of \(63\pi\) cubic feet since \(\pi \boldcdot 3^2 \boldcdot 7 = 63\pi\). The cone has a volume that is \(\frac13\) of that, or \(21\pi\) cubic feet.

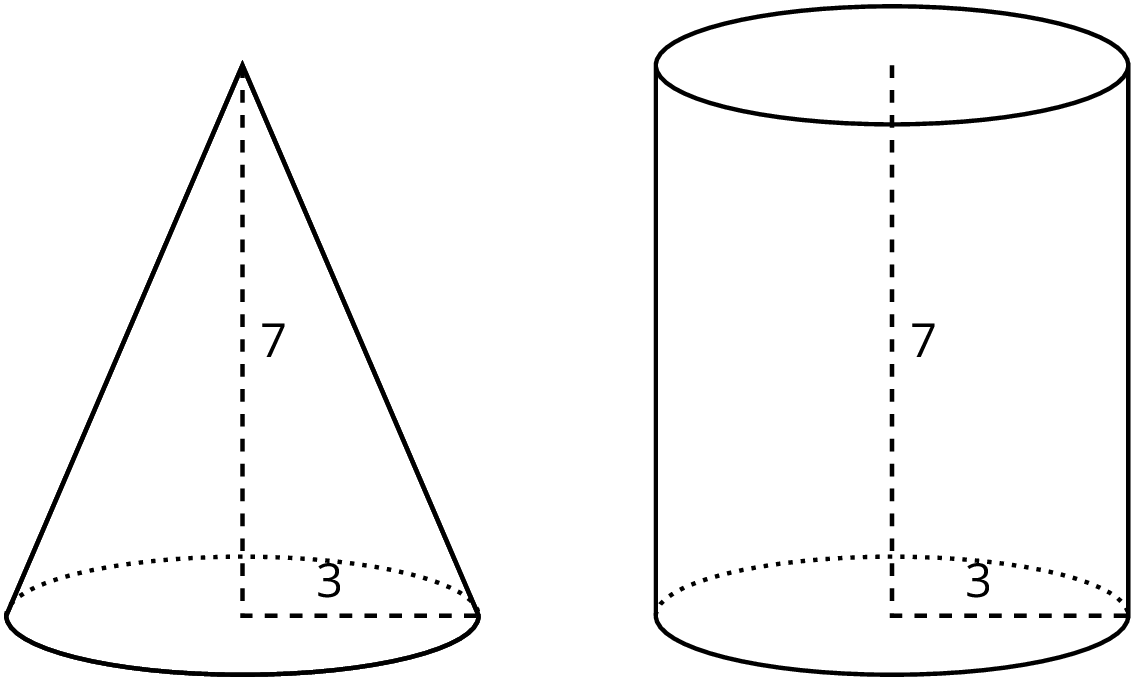

An image of a right circular cone and a right circular cylinder. The cone has a height of 7 and radius of 3. The cylinder has a height of 7 and a radius of 3.

If the radius for both is \(r\) and the height for both is \(h\), then the volume of the cylinder is \(\pi r^2h\). That means that the volume, \(V\), of the cone is \(\displaystyle V=\frac{1}{3}\pi r^2h\)

Glossary Entries

  • cone

    A cone is a three-dimensional figure like a pyramid, but the base is a circle.

  • cylinder

    A cylinder is a three-dimensional figure like a prism, but with bases that are circles.

  • sphere

    A sphere is a three-dimensional figure in which all cross-sections in every direction are circles.
