Lesson 7

Observing More Patterns in Scatter Plots

View Student Lesson

Problem 1

Literacy rate and population for the 12 countries with more than 100 million people are shown in the scatter plot. Circle any clusters in the data.

Scatterplot.

Solution

For access, consult one of our IM Certified Partners.

Problem 2

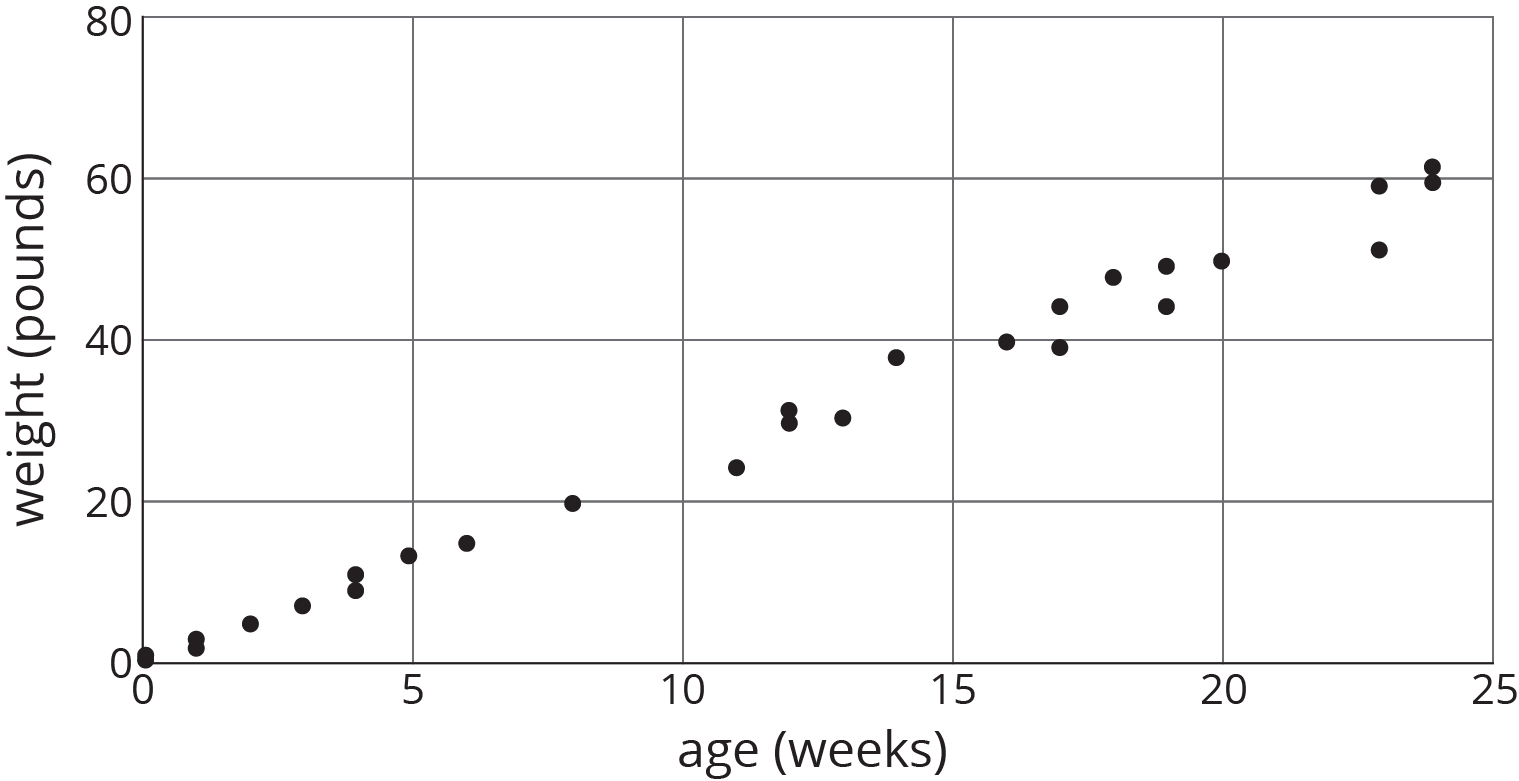

Here is a scatter plot:

A scatterplot, age in weeks, 0 to 25 by 5, weight in pounds, 0 to 80 by 20. Points begin at the origin and trend up and right with a consistent slope to around 24 comma 60.

Select all the following that describe the association in the scatter plot:

A:

Linear association

B:

Non-linear association

C:

Positive association

D:

Negative association

E:

No association

Solution

For access, consult one of our IM Certified Partners.

Problem 3

For the same data, two different models are graphed. Which model more closely matches the data? Explain your reasoning.

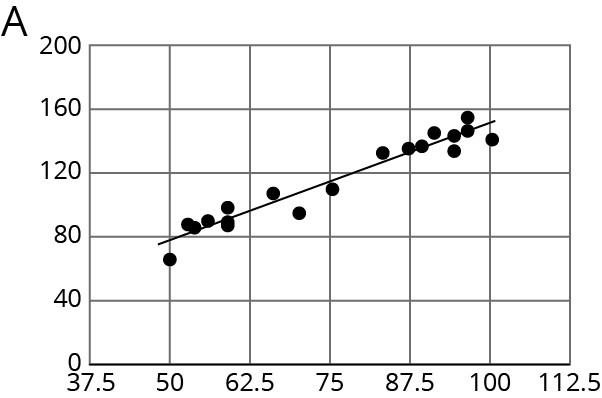

Scatterplot, labeled A.

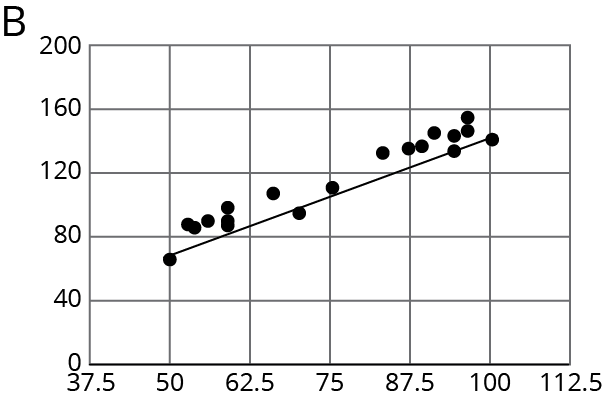

Scatterplot, labeled B.

Solution

For access, consult one of our IM Certified Partners.

(From Unit 6, Lesson 5.)

Problem 4

Here is a scatter plot of data for some of the tallest mountains on Earth.

The heights in meters and year of first recorded ascent is shown. Mount Everest is the tallest mountain in this set of data.

  1. Estimate the height of Mount Everest.
  2. Estimate the year of the first recorded ascent of Mount Everest.
Scatterplot, first ascent, 1930 to 2020, height in meters, 7000 to 9000. Please ask for further assistance.

Solution

For access, consult one of our IM Certified Partners.

(From Unit 6, Lesson 3.)

Problem 5

A cone has a volume \(V\), radius \(r\), and a height of 12 cm.

  1. A cone has the same height and \(\frac13\) of the radius of the original cone. Write an expression for its volume.
  2. A cone has the same height and 3 times the radius of the original cone. Write an expression for its volume.

Solution

For access, consult one of our IM Certified Partners.

(From Unit 5, Lesson 18.)
