Lesson 7

Exploring the Area of a Circle

View Student Lesson

Problem 1

The \(x\)-axis of each graph has the diameter of a circle in meters. Label the \(y\)-axis on each graph with the appropriate measurement of a circle:
radius (m), circumference (m), or area (m2).

Three graphs. Horizontal axis, diameter in meters, scale 0 to 10, by 2's. Vertical axis, scale 0 to 20, by 2's.

Solution

For access, consult one of our IM Certified Partners.

Problem 2

Circle A has area 500 in2. The diameter of circle B is three times the diameter of circle A. Estimate the area of circle B.

Solution

For access, consult one of our IM Certified Partners.

Problem 3

Lin’s bike travels 100 meters when her wheels rotate 55 times. What is the circumference of her wheels?

Solution

For access, consult one of our IM Certified Partners.

(From Unit 3, Lesson 5.)

Problem 4

Priya drew a circle whose circumference is 25 cm. Clare drew a circle whose diameter is 3 times the diameter of Priya’s circle. What is the circumference of Clare’s circle?

Solution

For access, consult one of our IM Certified Partners.

(From Unit 3, Lesson 3.)

Problem 5

  1. Here is a picture of two squares and a circle. Use the picture to explain why the area of this circle is more than 2 square units but less than 4 square units.

    Two squares and circle on a grid of 4 units by 4 units.

  2. Here is another picture of two squares and a circle. Use the picture to explain why the area of this circle is more than 18 square units and less than 36 square units.

    A square with a circle inside of it and a square inside of the circle. The shapes are drawn on a grid.

Solution

For access, consult one of our IM Certified Partners.

Problem 6

Point \(A\) is the center of the circle, and the length of \(CD\) is 15 centimeters. Find the circumference of this circle.

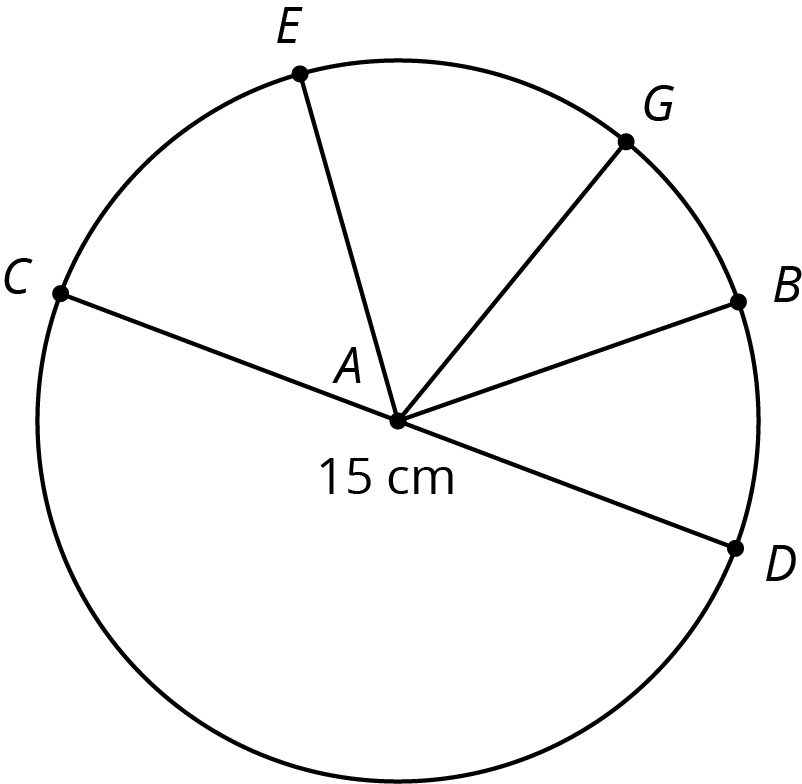

A circle with center point A. Diameter CD, 15 cm. Points on the circle are C, E, G, B, D.

Solution

For access, consult one of our IM Certified Partners.

(From Unit 3, Lesson 3.)
