Lesson 12

Constructing the Coordinate Plane

Let’s investigate different ways of creating a coordinate plane.

12.1: English Winter

The following data were collected over one December afternoon in England.

time after
noon (hours)
temperature
(\(^\circ \text{C}\))
0 5
1 3
2 4
3 2
4 1
5 -2
6 -3
7 -4
8 -4
  1. Which set of axes would you choose to represent these data? Explain your reasoning.
  2. Explain why the other two sets of axes did not seem as appropriate as the one you chose.
Coordinate plane, O at origin, horizontal axis, 0 to 9 by ones, time after noon in hours, vertical axis, 0 to 6 in hours, temperature in degrees celsius.
Coordinate plane, origin labeled O, horizontal axis, neative 2 to 10 by twos, time after noon in hours, vertical axis, negative 6 to 8 by twos, temperature in degrees celsius.
Coordinate plane, Origin O, horizontal axis negative 10 to 40 by tens, time after noon in hours, vertical axis, negative 20 to 30 by tens, temperature in degrees celsius.

12.2: Axes Drawing Decisions

  1. Here are three sets of coordinates. For each set, draw and label an appropriate pair of axes and plot the points.

    1. \((1, 2), (3, \text-4), (\text-5, \text-2), (0, 2.5)\)

      A blank coordinate plane with 16 evenly spaced horizontal units and 12 evenly spaced vertical units.
    2. \((50, 50), (0, 0), (\text-10, \text-30), (\text-35, 40)\)

      A blank coordinate plane with 16 evenly spaced horizontal units and 12 evenly spaced vertical units.
    3. \(\left(\frac14, \frac34\right), \left(\frac {\text{-}5}{4}, \frac12\right), \left(\text-1\frac14, \frac {\text{-}3}{4}\right), \left(\frac14, \frac {\text{-}1}{2}\right)\)

      A blank coordinate plane with 16 evenly spaced horizontal units and 12 evenly spaced vertical units.
  2. Discuss with a partner:

    • How are the axes and labels of your three drawings different?
    • How did the coordinates affect the way you drew the axes and label the numbers?

12.3: Positively A-maze-ing

Here is a maze on a coordinate plane. The black point in the center is (0, 0). The side of each grid square is 2 units long.

  1. Enter the above maze at the location marked with a green segment. Draw line segments to show your way through and out of the maze. Label each turning point with a letter. Then, list all the letters and write their coordinates.
  2. Choose any 2 turning points that share the same line segment. What is the same about their coordinates? Explain why they share that feature.


To get from the point \((2,1)\) to \((\text-4,3)\) you can go two units up and six units to the left, for a total distance of eight units. This is called the “taxicab distance,” because a taxi driver would have to drive eight blocks to get between those two points on a map.

Coordinate plane, points at (negative 4 comma 3) and (2 comma 1). A segment runs horizontally from the first point until it is directly above the second point, and then a second segment runs down.

Find as many points as you can that have a taxicab distance of eight units away from \((2,1)\). What shape do these points make?

Summary

The coordinate plane can be used to show information involving pairs of numbers.

When using the coordinate plane, we should pay close attention to what each axis represents and what scale each uses.

Suppose we want to plot the following data about the temperatures in Minneapolis one evening.

time
(hours from midnight)
temperature
(degrees C)
-4 3
-1 -2
0 -4
3 -8

We can decide that the \(x\)-axis represents number of hours in relation to midnight and the \(y\)-axis represents temperatures in degrees Celsius.

  • In this case, \(x\)-values less than 0 represent hours before midnight, and and \(x\)-values greater than 0 represent hours after midnight.
  • On the \(y\)-axis, the values represents temperatures above and below the the freezing point of 0 degrees Celsius.

The data involve whole numbers, so it is appropriate that the each square on the grid represents a whole number.

  • On the left of the origin, the \(x\)-axis needs to go as far as -4 or less (farther to the left). On the right, it needs to go to 3 or greater.
  • Below the origin, the \(y\)-axis has to go as far as -8 or lower. Above the origin, it needs to go to 3 or higher.

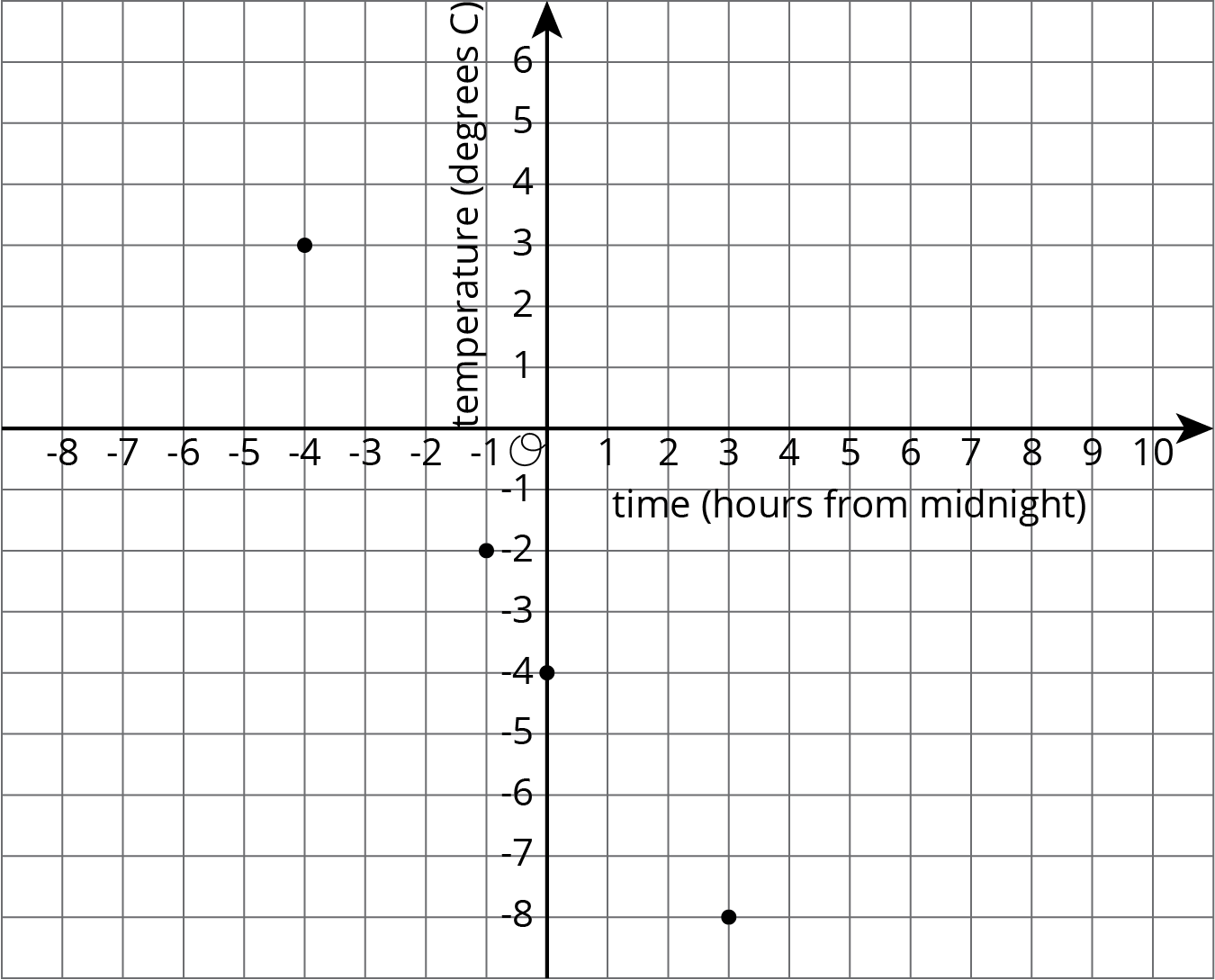

Here is a graph of the data with the axes labeled appropriately.

Coordinate plane.

On this coordinate plane, a point at \((0, 0)\) would mean a temperature of 0 degrees Celsius at midnight. The point at \((\text-4, 3)\) means a temperature of 3 degrees Celsius at 4 hours before midnight (or 8 p.m.).

Glossary Entries

  • quadrant

    The coordinate plane is divided into 4 regions called quadrants. The quadrants are numbered using Roman numerals, starting in the top right corner.

    A coordinate plane, origin O. The area top & right of the origin is Quadrant 1, and counter-clockwise labeled quadrant 2, 3, 4.
