Lesson 2

Naming the Moves

View Student Lesson

Problem 1

Each of the six cards shows a shape.

6 panels each showing the one of three different figures in different positions and orientations.
  1. Which pair of cards shows a shape and its image after a rotation?
  2. Which pair of cards shows a shape and its image after a reflection?

Solution

For access, consult one of our IM Certified Partners.

Problem 2

The five frames show a shape's different positions.

5 panels showing the same figure in different positions and orientations.

Describe how the shape moves to get from its position in each frame to the next.

Solution

For access, consult one of our IM Certified Partners.

Problem 3

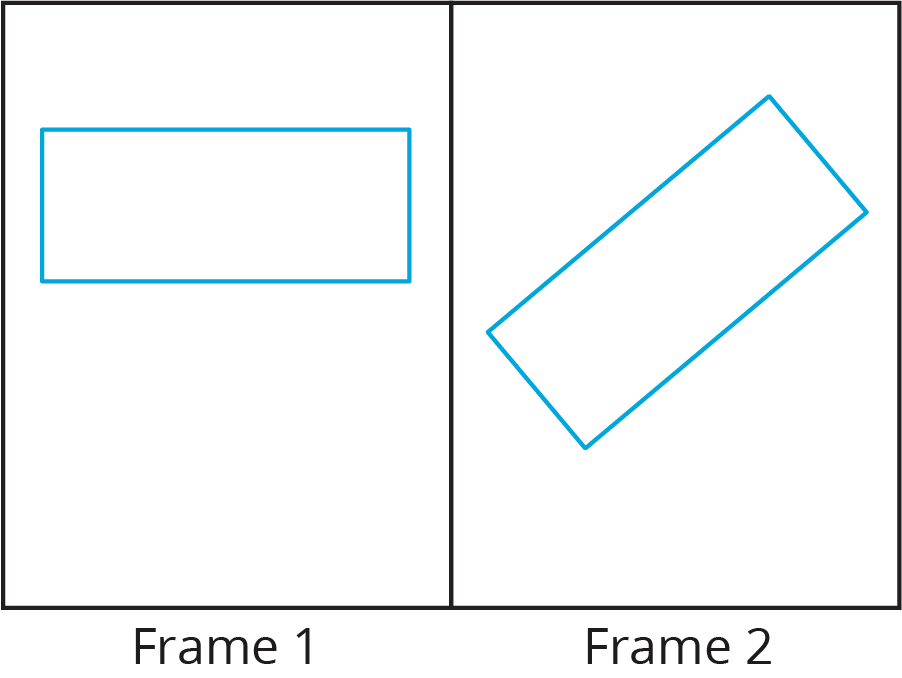

The rectangle seen in Frame 1 is rotated to a new position, seen in Frame 2.

A figure of rectangular Frame 1 and Frame 2, each with a rectangle.

Select all the ways the rectangle could have been rotated to get from Frame 1 to Frame 2.

A:

40 degrees clockwise

B:

40 degrees counterclockwise

C:

90 degrees clockwise

D:

90 degrees counterclockwise

E:

140 degrees clockwise

F:

140 degrees counterclockwise

Solution

For access, consult one of our IM Certified Partners.

(From Unit 1, Lesson 1.)
