Lesson 15
More Nets, More Surface Area
Let’s draw nets and find the surface area of polyhedra.
Problem 1

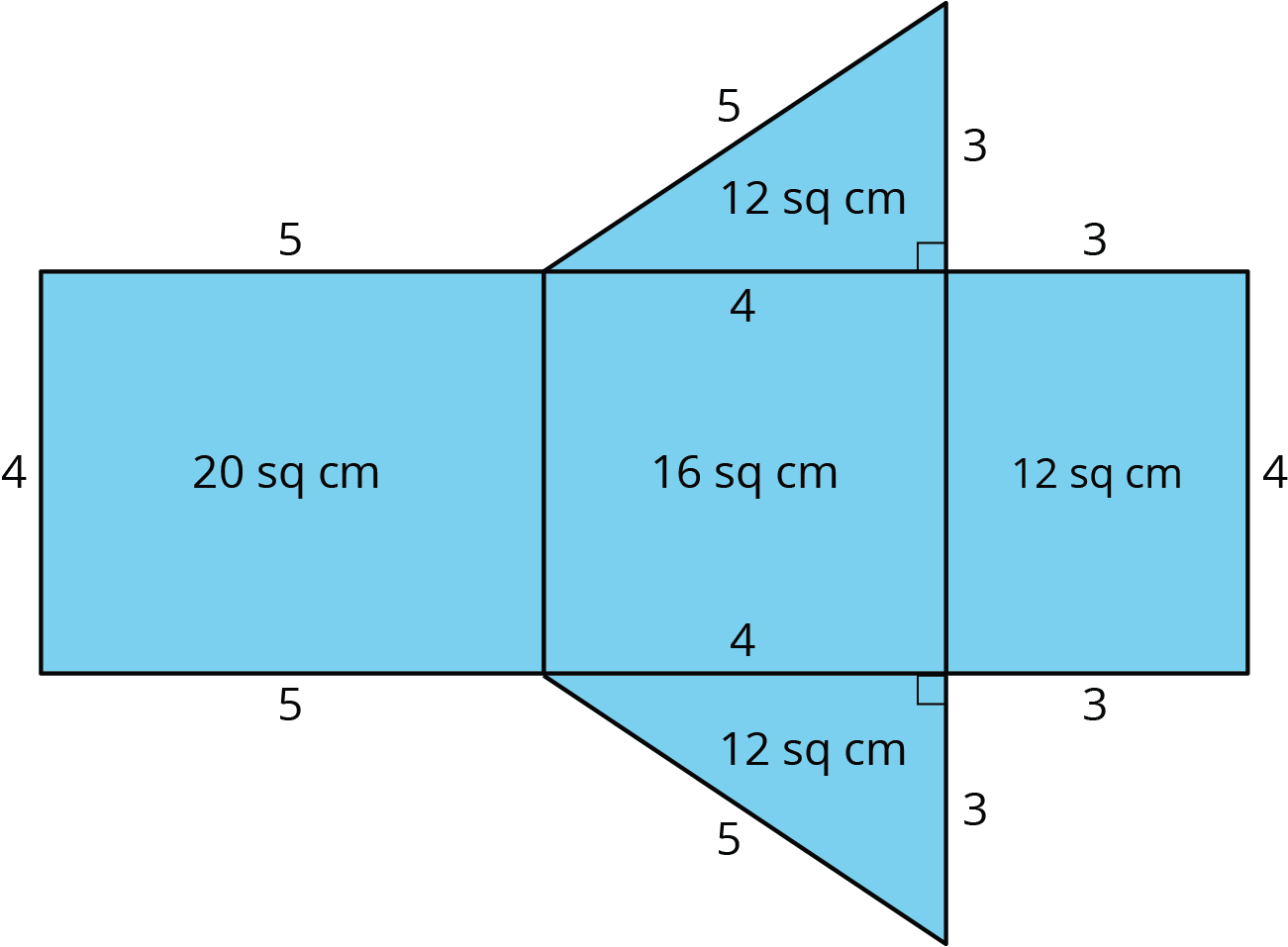

Jada drew a net for a polyhedron and calculated its surface area.
![Triangular prism, dimensions and areas of faces provided.](https://cms-im.s3.amazonaws.com/aTqZDMUAzxd1eDL4TR7ZKjRQ?response-content-disposition=inline%3B%20filename%3D%226-6.1.E.PP_Image_23.png%22%3B%20filename%2A%3DUTF-8%27%276-6.1.E.PP_Image_23.png&response-content-type=image%2Fpng&X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAXQCCIHWF3XOEFOW4%2F20240727%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20240727T032950Z&X-Amz-Expires=604800&X-Amz-SignedHeaders=host&X-Amz-Signature=2d246faf5ec70b756eedad71a0dc53ce4c7c1441e1cdd3e631626f801b23970b)
- What polyhedron can be assembled from this net?
- Jada made some mistakes in her area calculation. What were the mistakes?
- Find the surface area of the polyhedron. Show your reasoning.
Problem 2
A cereal box is 8 inches by 2 inches by 12 inches. What is its surface area? Show your reasoning. If you get stuck, consider drawing a sketch of the box or its net and labeling the edges with their measurements.
Problem 3
Twelve cubes are stacked to make this figure.
![Steps, bottom row 3 cubes, middle row 2 cubes, top row 1 cube](https://cms-im.s3.amazonaws.com/YLsysrkLAdrxDKCJ8cJoJCmW?response-content-disposition=inline%3B%20filename%3D%226-6.1.E.PP.New.Image.02.png%22%3B%20filename%2A%3DUTF-8%27%276-6.1.E.PP.New.Image.02.png&response-content-type=image%2Fpng&X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAXQCCIHWF3XOEFOW4%2F20240727%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20240727T032950Z&X-Amz-Expires=604800&X-Amz-SignedHeaders=host&X-Amz-Signature=bb79537fe592b5c8076117616a8bce3aed55abd24c7f9881c0b7d8b127d59b60)
- What is its surface area?
- How would the surface area change if the top two cubes are removed?
Problem 4

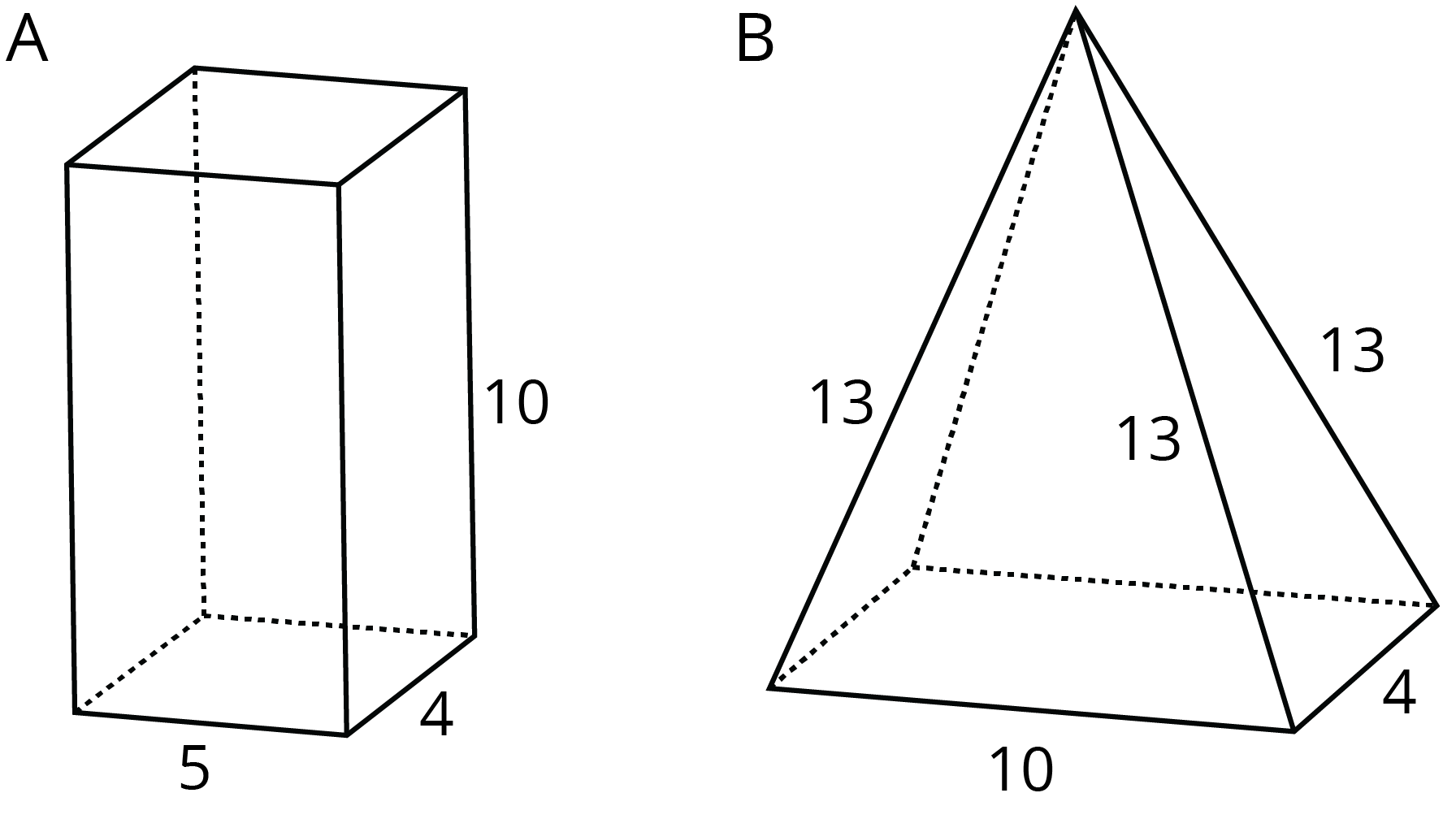

Here are two polyhedra and their nets. Label all edges in the net with the correct lengths.
![Two polyhedra labeled A and B. Polyhedron A has sides labeled 5, 4, and 10. Polyhedron B has sides labeled 4, 10, 13, 13, and 13.](https://cms-im.s3.amazonaws.com/2Xfnskoyz3sRGdqASHzMTgCW?response-content-disposition=inline%3B%20filename%3D%226-6.1.E.PP_Image_8a.png%22%3B%20filename%2A%3DUTF-8%27%276-6.1.E.PP_Image_8a.png&response-content-type=image%2Fpng&X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAXQCCIHWF3XOEFOW4%2F20240727%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20240727T032950Z&X-Amz-Expires=604800&X-Amz-SignedHeaders=host&X-Amz-Signature=5c9d647cb9e46feff2f719c146875f221557bbb6a54a987020f0f466ce71947a)
![Figure A net of rectangular prism. Figure B rectangular pyramid.](https://cms-im.s3.amazonaws.com/a2CJ1dZxE926NEUemxsATXTZ?response-content-disposition=inline%3B%20filename%3D%226-6.1.E.PP_Image_9a.png%22%3B%20filename%2A%3DUTF-8%27%276-6.1.E.PP_Image_9a.png&response-content-type=image%2Fpng&X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAXQCCIHWF3XOEFOW4%2F20240727%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20240727T032950Z&X-Amz-Expires=604800&X-Amz-SignedHeaders=host&X-Amz-Signature=dced64b397fe813cfe88ad24da2f022eab0eb0876bb93076fa9c98bb36e96e49)
Problem 5
-

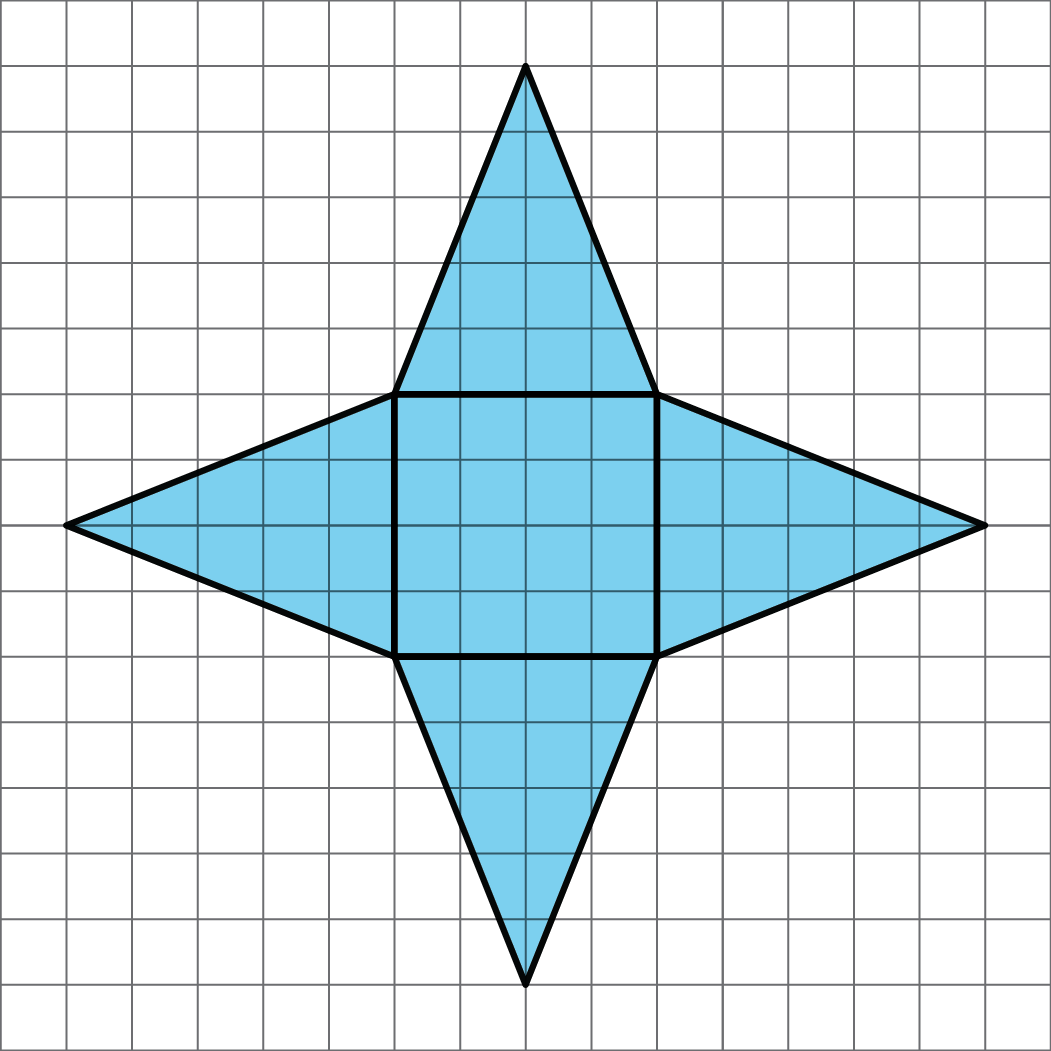

What three-dimensional figure can be assembled from the net?
- What is the surface area of the figure? (One grid square is 1 square unit.)
