Lesson 10

Drawing Triangles (Part 2)

View Student Lesson

Problem 1

A triangle has sides of length 7 cm, 4 cm, and 5 cm. How many unique triangles can be drawn that fit that description? Explain or show your reasoning.

Solution

For access, consult one of our IM Certified Partners.

Problem 2

A triangle has one side that is 5 units long and an adjacent angle that measures \(25^\circ\). The two other angles in the triangle measure \(90^\circ\) and \(65^\circ\). Complete the two diagrams to create two different triangles with these measurements.

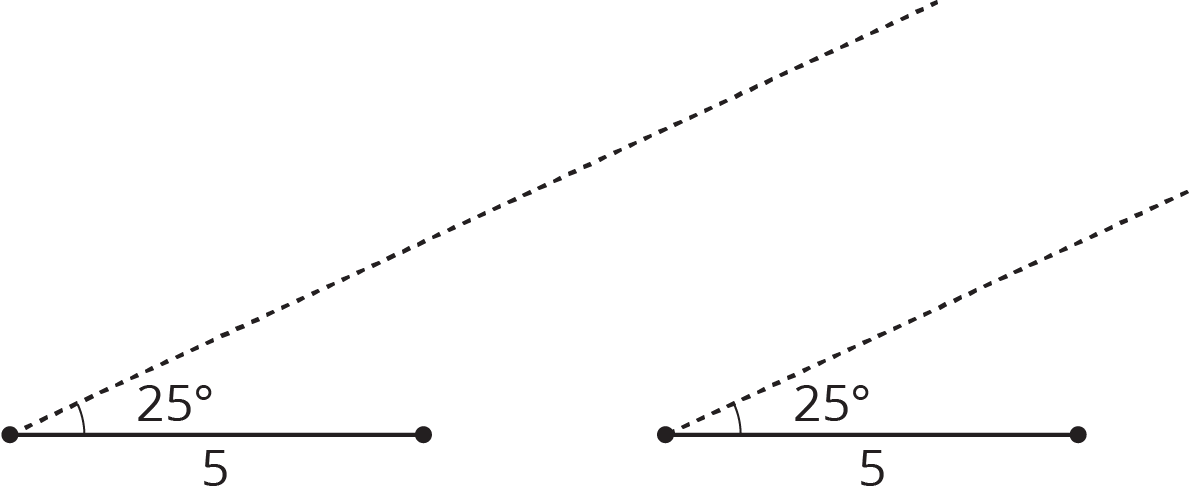

Two images, each a segment with side 5 and a dotted line rising at a 25 degree angle from the segment.

Solution

For access, consult one of our IM Certified Partners.

Problem 3

Is it possible to make a triangle that has angles measuring 90 degrees, 30 degrees, and 100 degrees? If so, draw an example. If not, explain your reasoning.

Solution

For access, consult one of our IM Certified Partners.

Problem 4

Segments \(CD\), \(AB\), and \(FG\) intersect at point \(E\). Angle \(FEC\) is a right angle. Identify any pairs of angles that are complementary.

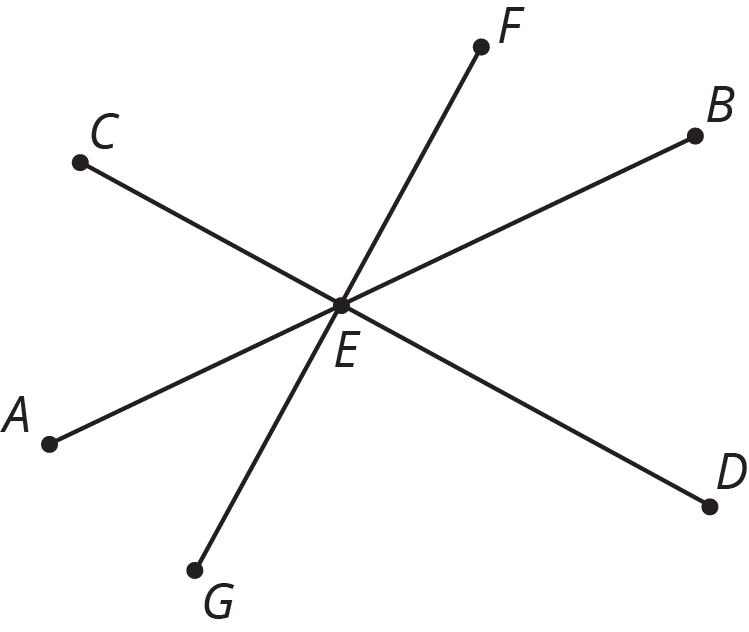

Segment C D, segment A, B, segment F G intersect at point E. Clockwise, the points are C, F, B, D, G, A. Angle F E C is a right angle.

Solution

For access, consult one of our IM Certified Partners.

(From Unit 7, Lesson 2.)

Problem 5

Match each equation to a step that will help solve the equation for \(x\).

A:

\(3x=\text-4\)

B:

\(\text-4.5 = x-3\)

C:

\(3=\frac {\text{-}x}{3}\)

D:

\(\frac13=\text-3x\)

E:

\(x-\frac{1}{3}=0.4\)

F:

\(3+x=8\)

G:

\(\frac{x}{3}=15\)

H:

\(7=\frac{1}{3}+x\)

1:

Add \(\frac13\) to each side.

2:

Add \(\frac {\text{-}1}{3}\) to each side.

3:

Add \(3\) to each side.

4:

Add \(\text-3\) to each side.

5:

Multiply each side by 3..

6:

Multiply each side by \(\text-3\).

7:

Multiply each side by \(\frac13\).

8:

Multiply each side by \(\frac {\text{-}1}{3}\)

Solution

For access, consult one of our IM Certified Partners.

(From Unit 5, Lesson 15.)

Problem 6

  1. If you deposit $300 in an account with a 6% interest rate, how much will be in your account after 1 year?
  2. If you leave this money in the account, how much will be in your account after 2 years?

Solution

For access, consult one of our IM Certified Partners.

(From Unit 4, Lesson 8.)
