Lesson 7

Graphs of Proportional Relationships

View Student Lesson

Problem 1

A lemonade recipe calls for \(\frac14\) cup of lemon juice for every cup of water.

  1. Use the table to answer these questions.
    1. What does \(x\) represent?
    2. What does \(y\) represent?
    3. Is there a proportional relationship between \(x\) and \(y\)?
  2. Plot the pairs in the table in a coordinate plane.
\(x\) \(y\)
1 \(\frac14\)
2 \(\frac12\)
3 \(\frac34\)
4 1

Solution

For access, consult one of our IM Certified Partners.

Problem 2

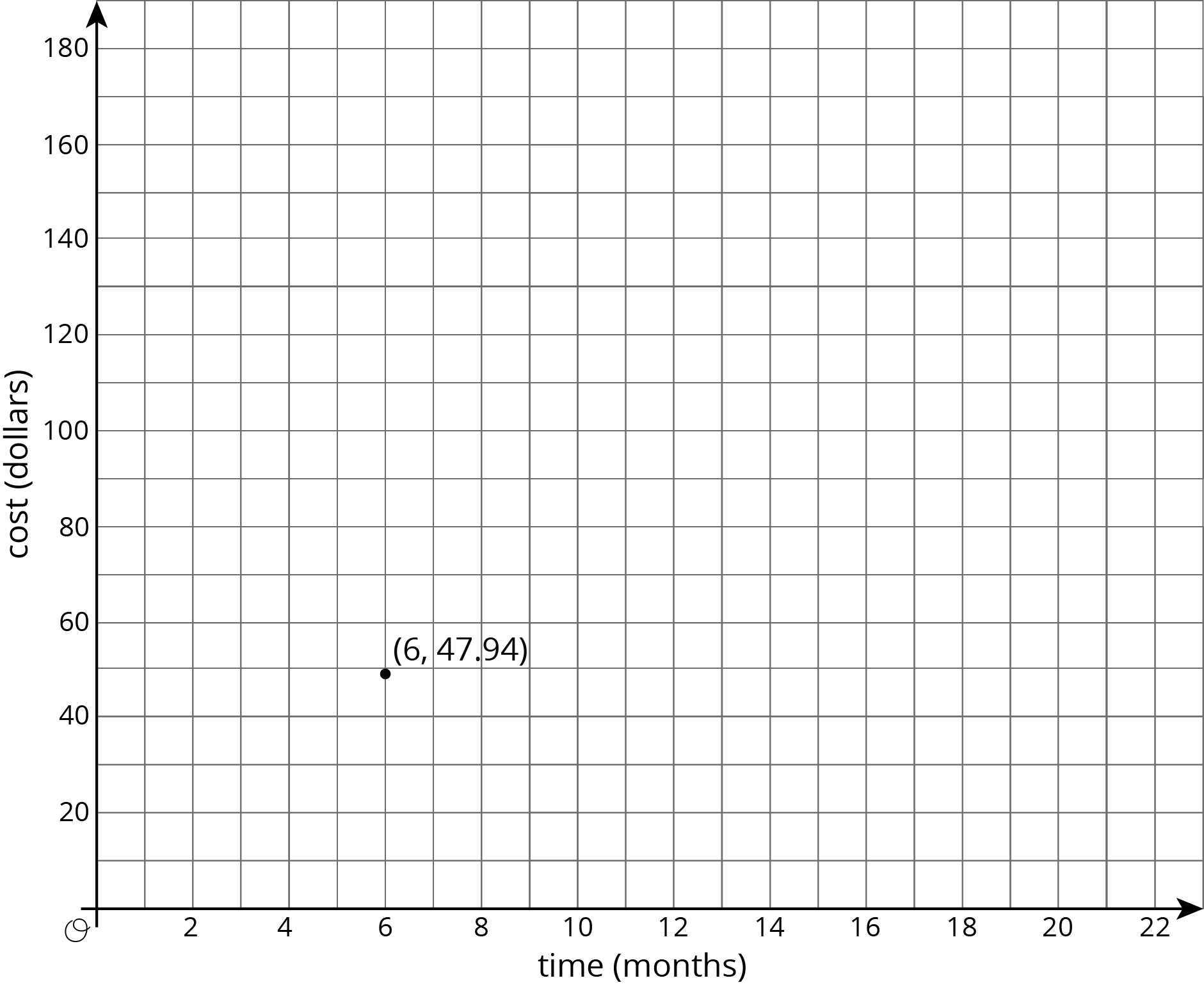

There is a proportional relationship between the number of months a person has had a streaming movie subscription and the total amount of money they have paid for the subscription. The cost for 6 months is $47.94. The point \((6, 47.94)\) is shown on the graph below.

Graph of a point on a coordinate plane, origin O.
  1. What is the constant of proportionality in this relationship?
  2. What does the constant of proportionality tell us about the situation?
  3. Add at least three more points to the graph and label them with their coordinates.
  4. Write an equation that represents the relationship between \(C\), the total cost of the subscription, and \(m\), the number of months.

Solution

For access, consult one of our IM Certified Partners.

Problem 3

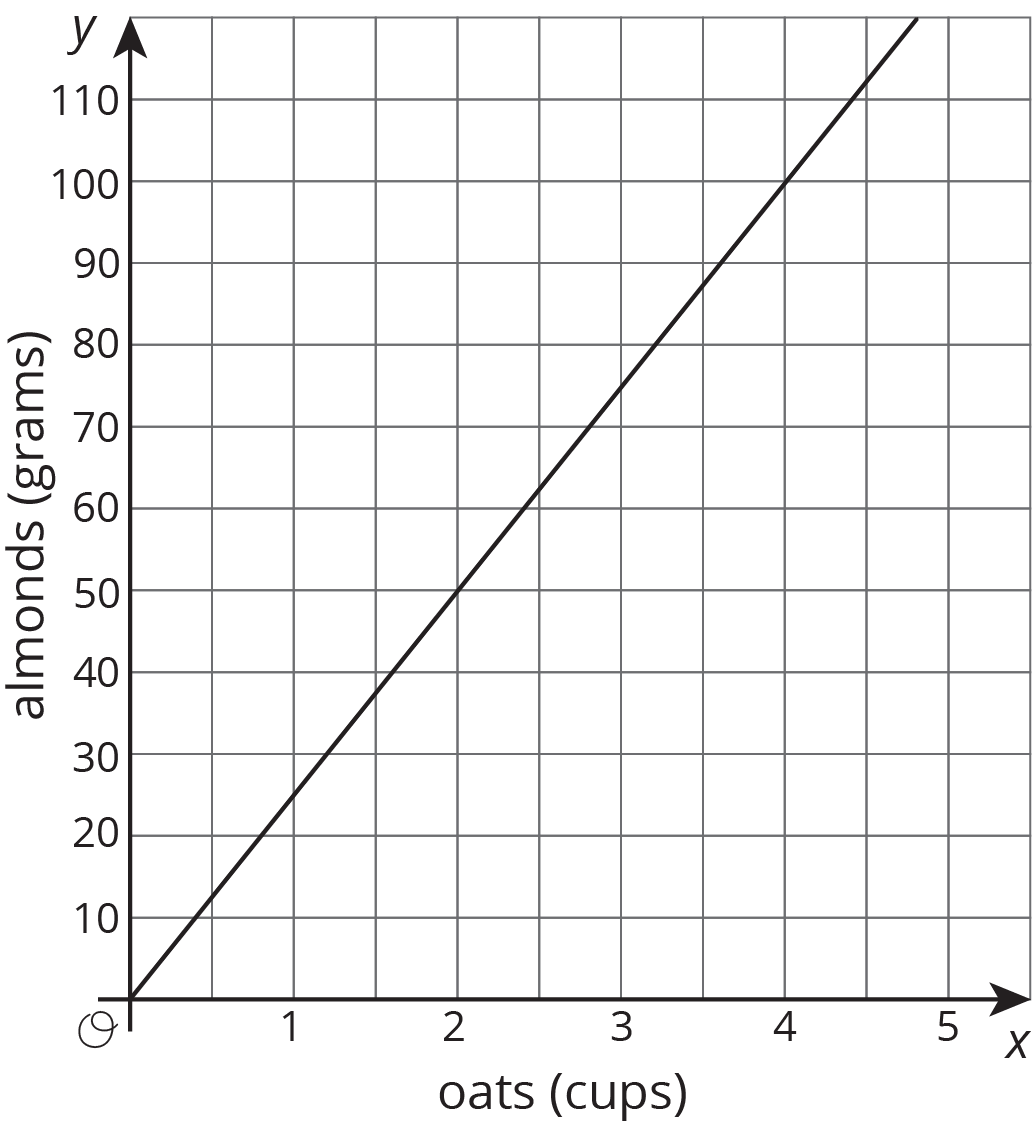

The graph shows the amounts of almonds, in grams, for different amounts of oats, in cups, in a granola mix. Label the point \((1, k)\) on the graph, find the value of \(k\), and explain its meaning.

Line graph. Horizontal axis, oats, cups, 0 to 5, by 1's. Vertical axis, almonds, grams, 0 to 110, by 10's.



Solution

For access, consult one of our IM Certified Partners.

Problem 4

Select all the pieces of information that would tell you \(x\) and \(y\) have a proportional relationship. Let \(y\) represent the distance in meters between a rock and a turtle's current position and \(x\) represent the time in minutes the turtle has been moving.

A:

\(y = 3x\)

B:

After 4 minutes, the turtle has walked 12 feet away from the rock.

C:

The turtle walks for a bit, then stops for a minute before walking again.

D:

The turtle walks away from the rock at a constant rate.

Solution

For access, consult one of our IM Certified Partners.

(From Unit 5, Lesson 6.)

Problem 5

What information do you need to know to write an equation relating two quantities that have a proportional relationship?

Solution

For access, consult one of our IM Certified Partners.

(From Unit 5, Lesson 6.)
