Lesson 4

Reasoning about Equations and Tape Diagrams (Part 1)

Let’s see how tape diagrams can help us answer questions about unknown amounts in stories.

Problem 1

Draw a square with side length 7 cm.

  1. Predict the perimeter and the length of the diagonal of the square.
  2. Measure the perimeter and the length of the diagonal of the square.
  3. Describe how close the predictions and measurements are.
(From Unit 3, Lesson 1.)

Problem 2

Find the products.

  1. \((100) \boldcdot (\text-0.09)\)
  2. \((\text-7) \boldcdot (\text- 1.1)\)
  3. \((\text-7.3) \boldcdot (5)\)
  4. \((\text-0.2)  \boldcdot (\text-0.3)\)
(From Unit 5, Lesson 9.)

Problem 3

Here are three stories:

  • A family buys 6 tickets to a show. They also pay a \$3 parking fee. They spend \$27 to see the show.

  • Diego has 27 ounces of juice. He pours equal amounts for each of his 3 friends and has 6 ounces left for himself.

  • Jada works for 6 hours preparing for the art fair. She spends 3 hours on a sculpture and then paints 27 picture frames.

Here are three equations:

  • \(3x+6=27\)
  • \(6x+3=27\)
  • \(27x+3=6\)
  1. Decide which equation represents each story. What does \(x\) represent in each equation?
  2. Find the solution to each equation. Explain or show your reasoning.
  3. What does each solution tell you about its situation?

Problem 4

Here is a diagram and its corresponding equation. Find the solution to the equation and explain your reasoning.

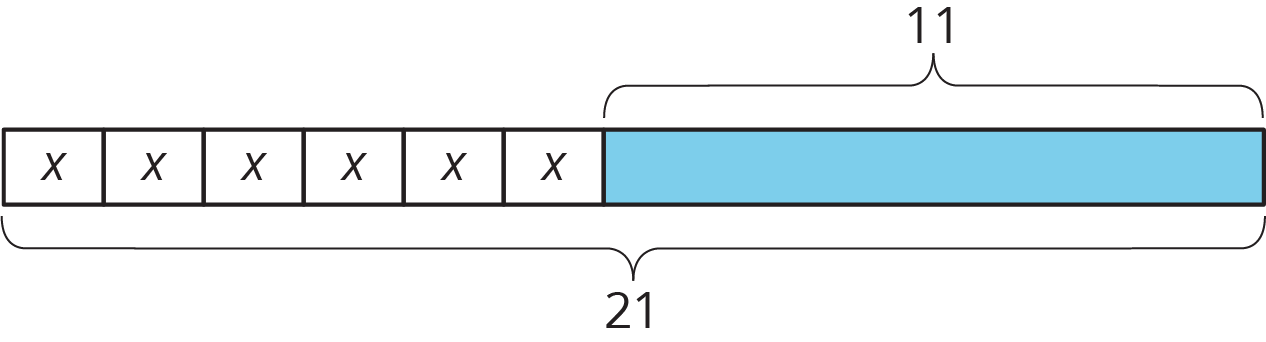

Tape diagram, 6 equal parts labeled x, 1 part colored blue and labeled 11, total 21.

\(6x+11=21\)

Problem 5

  1. Plot these points on the coordinate plane:

    \(A= (3, 2), B= (7.5, 2), C= (7.5, \text-2.5), D= (3, \text-2)\)

    Blank coordinate plane, origin labeled O. The x-axis, negative 2 to 8 by twos. The y-axis, negative 4 to 4 by twos.
  2. What is the vertical difference between \(D\) and \(A\)?
  3. Write an expression that represents the vertical distance between \(B\) and \(C\).
(From Unit 5, Lesson 7.)
