# Lesson 6

Scaling and Area

Let's build scaled shapes and investigate their areas.

### 6.1: Scaling a Pattern Block

Use the applets to explore the pattern blocks. Work with your group to build the scaled copies described in each question.

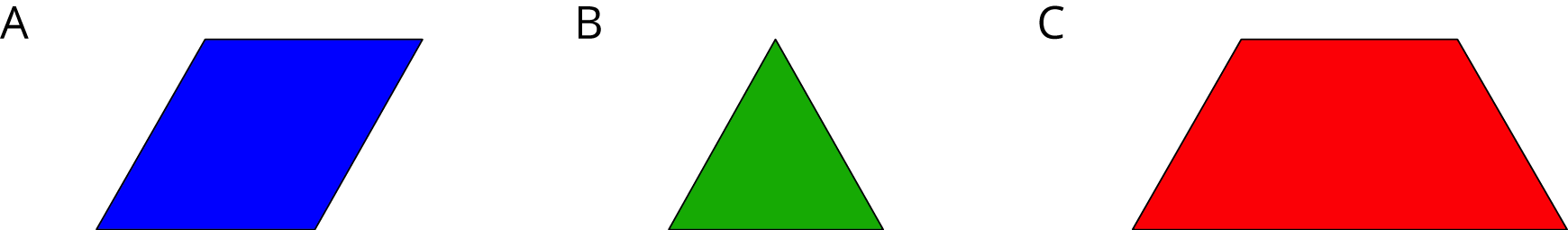

1. How many blue rhombus blocks does it take to build a scaled copy of Figure A:
1. Where each side is twice as long?

2. Where each side is 3 times as long?

3. Where each side is 4 times as long?

2. How many green triangle blocks does it take to build a scaled copy of Figure B:
1. Where each side is twice as long?

2. Where each side is 3 times as long?

3. Using a scale factor of 4?

3. How many red trapezoid blocks does it take to build a scaled copy of Figure C:
1. Using a scale factor of 2?

2. Using a scale factor of 3?

3. Using a scale factor of 4?

4. Make a prediction: How many blocks would it take to build scaled copies of these shapes using a scale factor of 5? Using a scale factor of 6? Be prepared to explain your reasoning.

### 6.2: Scaling More Pattern Blocks

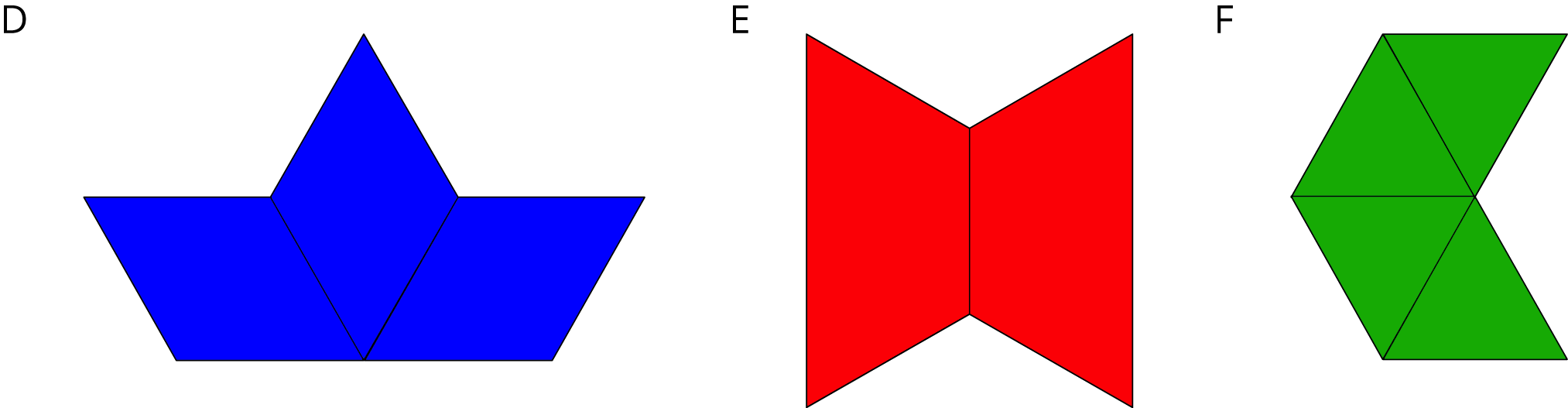

1. In the applet, move the slider to see a scaled copy of your assigned shape, using a scale factor of 2. Use the original-size blocks to build a figure to match it. How many blocks did it take?

2. Your classmate thinks that the scaled copies in the previous problem will each take 4 blocks to build. Do you agree or disagree? Explain you reasoning.

3. Move the slider to see a scaled copy of your assigned shape using a scale factor of 3. Start building a figure with the original-size blocks to match it. Stop when you can tell for sure how many blocks it would take. Record your answer.

4. Predict: How many blocks would it take to build scaled copies using scale factors 4, 5, and 6? Explain or show your reasoning.

5. How is the pattern in this activity the same as the pattern you saw in the previous activity? How is it different?

1. How many blocks do you think it would take to build a scaled copy of one yellow hexagon where each side is twice as long? Three times as long?

2. Figure out a way to build these scaled copies.

3. Do you see a pattern for the number of blocks used to build these scaled copies? Explain your reasoning.

### 6.3: Area of Scaled Parallelograms and Triangles

1. Your teacher will give you a figure with measurements in centimeters. What is the area of your figure? How do you know?
2. Work with your partner to draw scaled copies of your figure, using each scale factor in the table. Complete the table with the measurements of your scaled copies.
scale factor base (cm) height (cm) area (cm2)
1
2
3
$$\frac{1}{2}$$
$$\frac{1}{3}$$

3. Compare your results with a group that worked with a different figure. What is the same about your answers? What is different?
4. If you drew scaled copies of your figure with the following scale factors, what would their areas be? Discuss your thinking. If you disagree, work to reach an agreement. Be prepared to explain your reasoning.
scale factor area (cm2)
5
$$\frac{3}{5}$$

### Summary

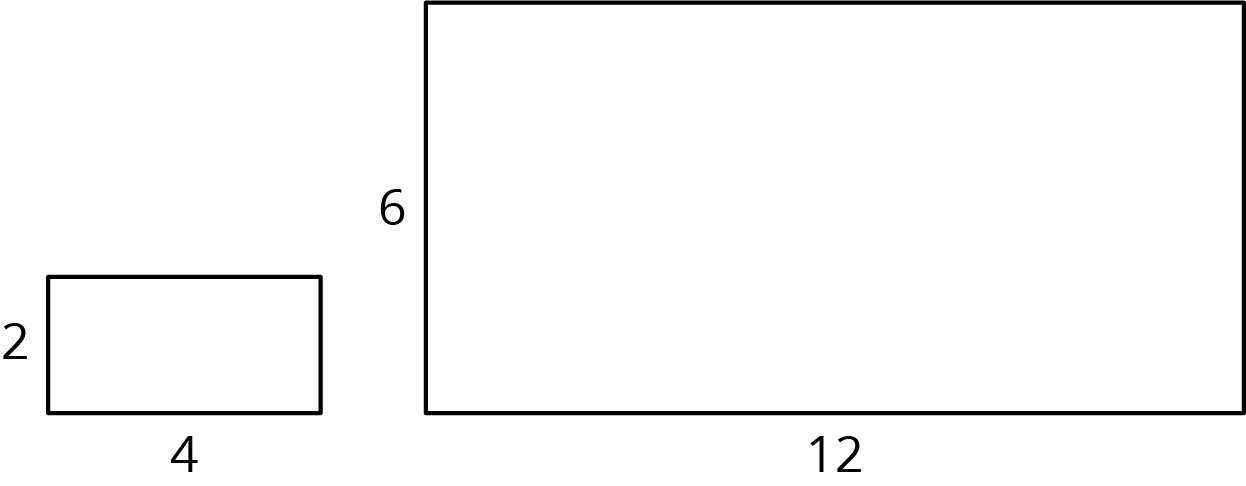

Scaling affects lengths and areas differently. When we make a scaled copy, all original lengths are multiplied by the scale factor. If we make a copy of a rectangle with side lengths 2 units and 4 units using a scale factor of 3, the side lengths of the copy will be 6 units and 12 units, because $$2\boldcdot 3 = 6$$ and $$4\boldcdot 3 = 12$$.

The area of the copy, however, changes by a factor of (scale factor)2. If each side length of the copy is 3 times longer than the original side length, then the area of the copy will be 9 times the area of the original, because $$3\boldcdot 3$$, or $$3^2$$, equals 9.

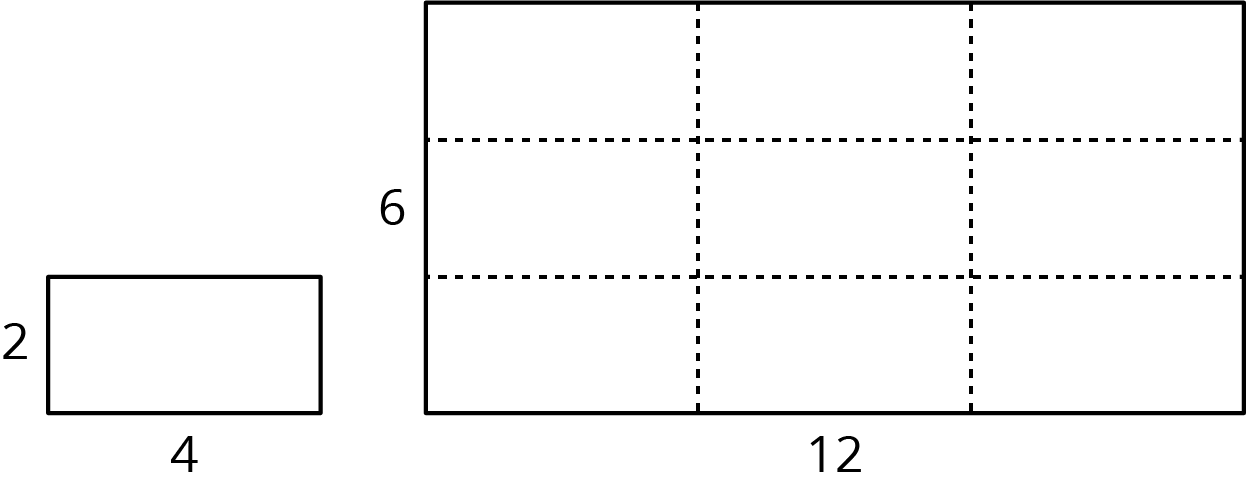

In this example, the area of the original rectangle is 8 units2 and the area of the scaled copy is 72 units2, because $$9\boldcdot 8 = 72$$. We can see that the large rectangle is covered by 9 copies of the small rectangle, without gaps or overlaps. We can also verify this by multiplying the side lengths of the large rectangle: $$6\boldcdot 12=72$$.

Lengths are one-dimensional, so in a scaled copy, they change by the scale factor. Area is two-dimensional, so it changes by the square of the scale factor. We can see this is true for a rectangle with length $$l$$ and width $$w$$. If we scale the rectangle by a scale factor of $$s$$, we get a rectangle with length $$s\boldcdot l$$ and width $$s\boldcdot w$$. The area of the scaled rectangle is $$A = (s\boldcdot l) \boldcdot (s\boldcdot w)$$, so $$A= (s^2) \boldcdot (l \boldcdot w)$$. The fact that the area is multiplied by the square of the scale factor is true for scaled copies of other two-dimensional figures too, not just for rectangles.

### Glossary Entries

• area

Area is the number of square units that cover a two-dimensional region, without any gaps or overlaps.

For example, the area of region A is 8 square units. The area of the shaded region of B is $$\frac12$$ square unit.

• corresponding

When part of an original figure matches up with part of a copy, we call them corresponding parts. These could be points, segments, angles, or distances.

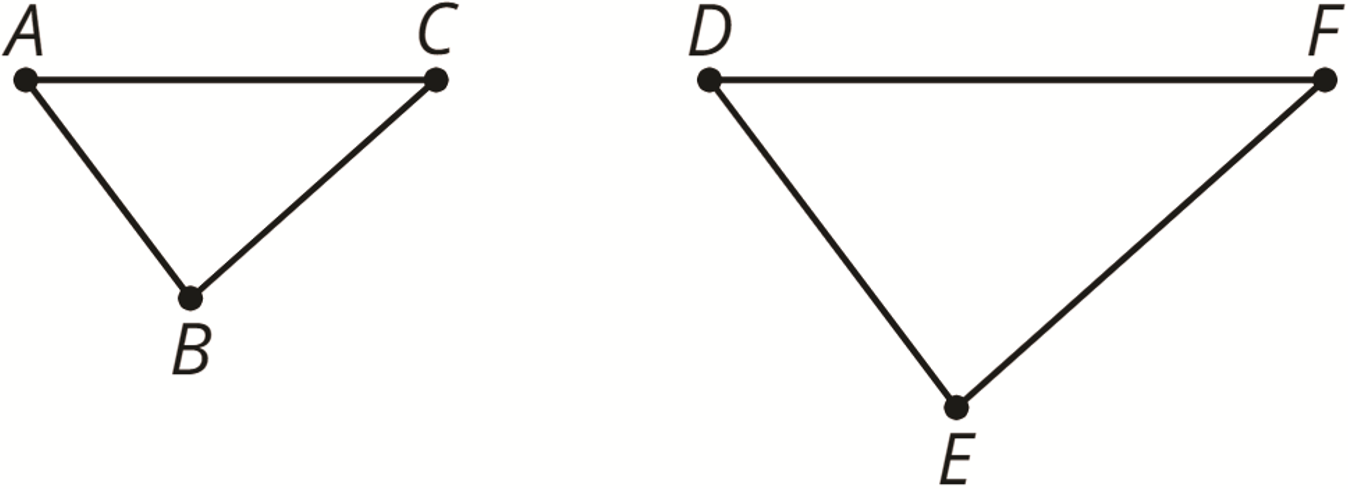

For example, point $$B$$ in the first triangle corresponds to point $$E$$ in the second triangle. Segment $$AC$$ corresponds to segment $$DF$$.

• reciprocal

Dividing 1 by a number gives the reciprocal of that number. For example, the reciprocal of 12 is $$\frac{1}{12}$$, and the reciprocal of $$\frac25$$ is $$\frac52$$.

• scale factor

To create a scaled copy, we multiply all the lengths in the original figure by the same number. This number is called the scale factor.

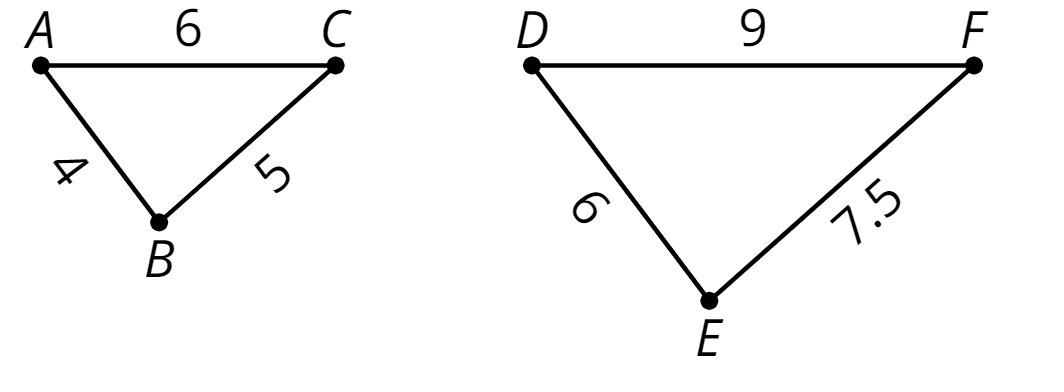

In this example, the scale factor is 1.5, because $$4 \boldcdot (1.5) = 6$$, $$5 \boldcdot (1.5)=7.5$$, and $$6 \boldcdot (1.5)=9$$.

• scaled copy

A scaled copy is a copy of a figure where every length in the original figure is multiplied by the same number.

For example, triangle $$DEF$$ is a scaled copy of triangle $$ABC$$. Each side length on triangle $$ABC$$ was multiplied by 1.5 to get the corresponding side length on triangle $$DEF$$.
