Lesson 12

Alternate Interior Angles

View Student Lesson

Problem 1

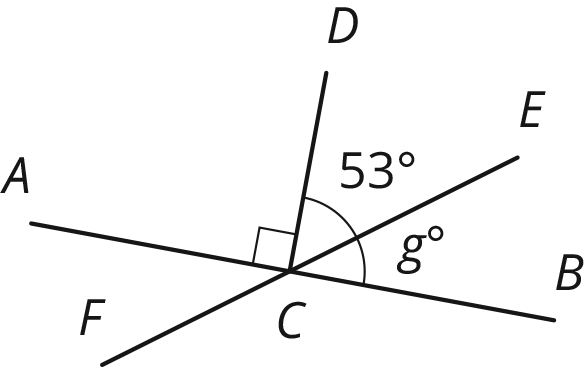

Segments \(AB\), \(EF\), and \(CD\) intersect at point \(C\), and angle \(ACD\) is a right angle. Find the value of \(g\).

Segment A, B, segment E F, and segment C D intersect at point C. Clockwise, the endpoints are A, D, E, B, F. Angle A, C D is a right angle. Angle D C E is 53 degrees, angle E C B is g degrees.

Solution

For access, consult one of our IM Certified Partners.

Problem 2

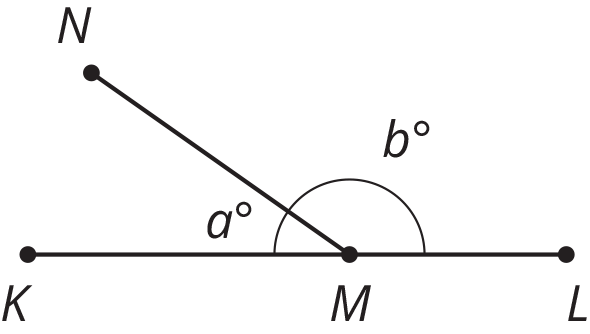

\(M\) is a point on line segment \(KL\). \(NM\) is a line segment. Select all the equations that represent the relationship between the measures of the angles in the figure.

M is a point on line segment K L. Segment N M creates two angles, measure a, degrees and b degrees.
A:

\(a=b\)

B:

\(a+b=90\)

C:

\(b=90-a\)

D:

\(a+b=180\)

E:

\(180-a=b\)

F:

\(180=b-a\)

Solution

For access, consult one of our IM Certified Partners.

Problem 3

Use the diagram to find the measure of each angle.

  1. \(m\angle ABC\)
  2. \(m\angle EBD\)
  3. \(m\angle ABE\)
Two lines, line E C and line A D, that intersect at point B. Angle C B D is labeled 45 degrees.

Solution

For access, consult one of our IM Certified Partners.

(From Unit 1, Lesson 8.)

Problem 4

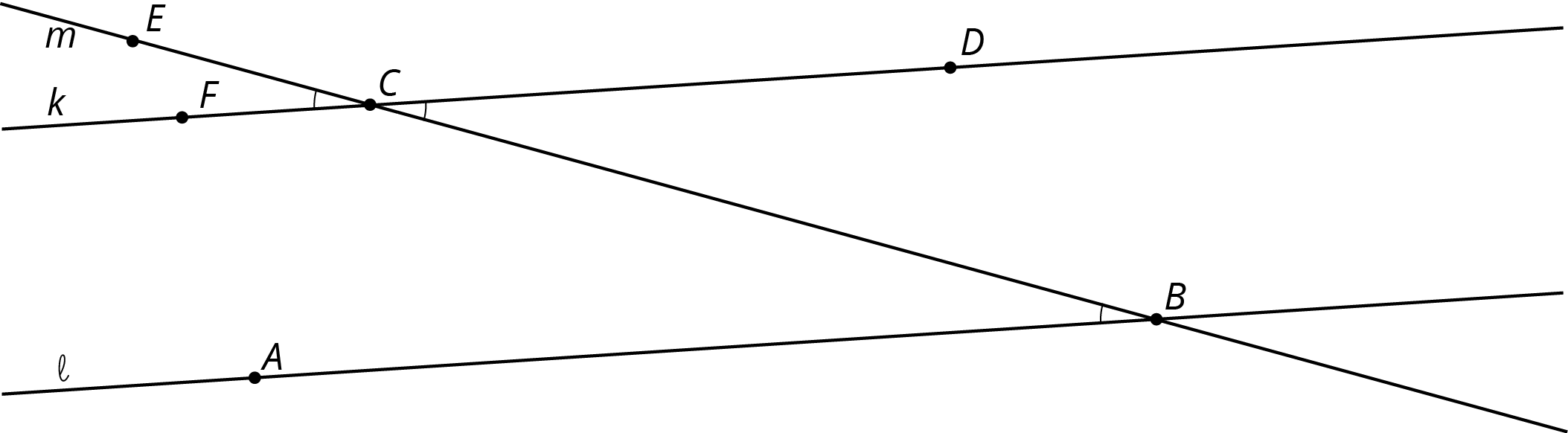

Lines \(k\) and \(\ell\) are parallel, and the measure of angle \(ABC\) is 19 degrees.

Two parallel lines, k and l, cut by transversal line m.
  1. Explain why the measure of angle \(ECF\) is 19 degrees. If you get stuck, consider translating line \(\ell\) by moving \(B\) to \(C\).
  2. What is the measure of angle \(BCD\)? Explain.

Solution

For access, consult one of our IM Certified Partners.

Problem 5

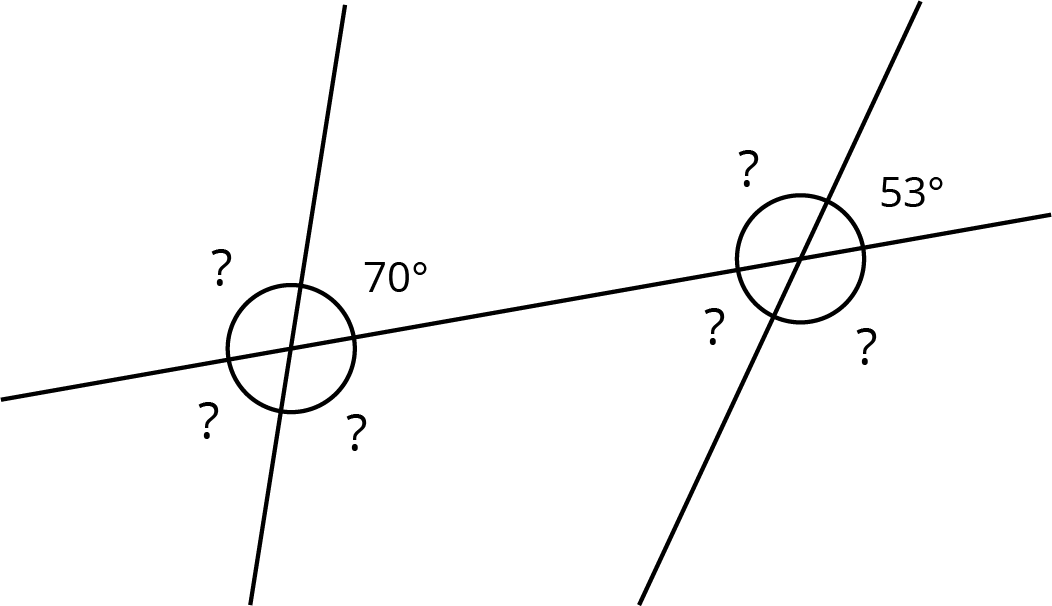

The diagram shows three lines with some marked angle measures.

Two lines that do not intersect. A third line intersects with both lines.

Find the missing angle measures marked with question marks.

Solution

For access, consult one of our IM Certified Partners.

Problem 6

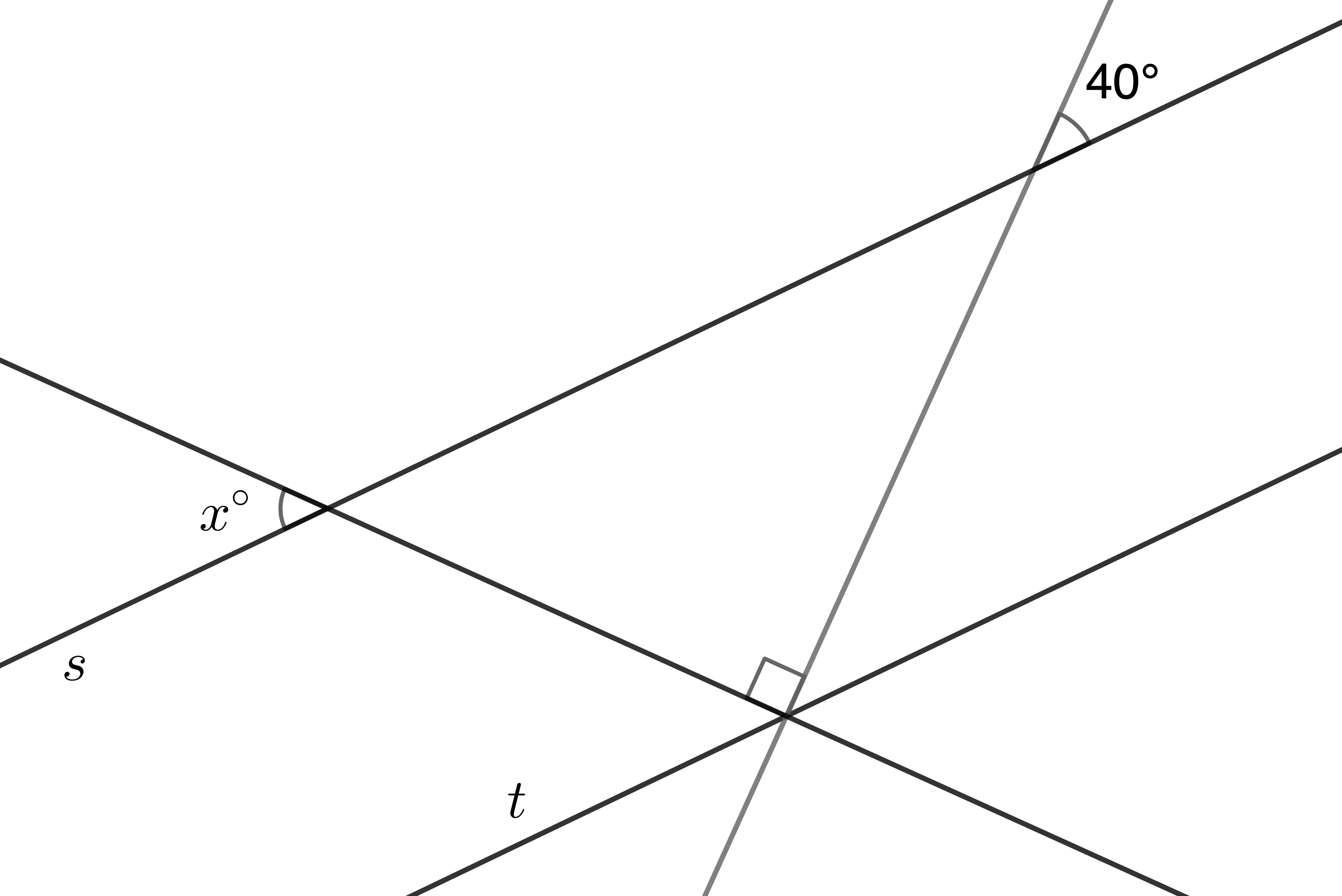

Lines \(s\) and \(t\) are parallel. Find the value of \(x\).

Four lines. Two parallel lines are labeled s and t. Two other lines that intersect at a right angle at a point on line t. One angle is labeled 40 degrees. Another angle is labeled x degrees.

Solution

For access, consult one of our IM Certified Partners.
