Lesson 6

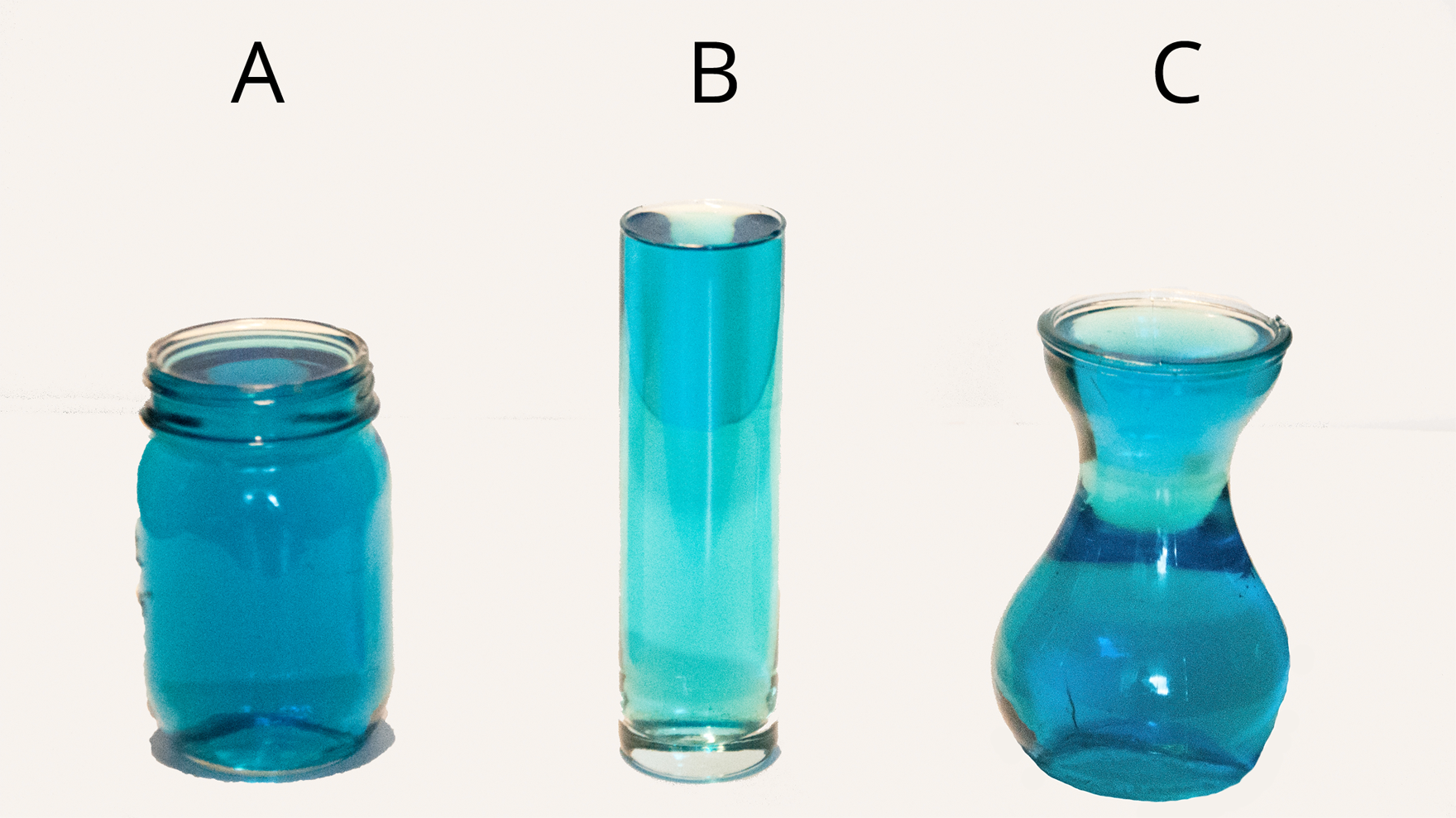

Which glass will hold the most water? The least?



Move the green circle to set the starting level of water to a value you or your teacher choose.



1. What is the volume, \(V\), in the cylinder after you add:
   1. 3 objects?
   2. 7 objects?
   3. \(x\) objects? Explain your reasoning.

2. If you wanted to make the water reach the highest mark on the cylinder, how many objects would you need?

3. Plot and label points that show your measurements from the experiment.



4. Plot and label a point that shows the depth of the water before you added any objects.

5. The points should fall on a line. Use the Line tool to draw this line.

6. Compute the slope of the line using several different triangles. Does it matter which triangle you use to compute the slope? Why or why not?

7. The equation of the line in the experiment has two numbers and two variables. What physical quantities do the two numbers represent? What does \(V\) represent and what does \(x\) represent?

1. For each graph, record:

   vertical change	horizontal change	slope

2. Describe a procedure for finding the slope between any two points on a line.

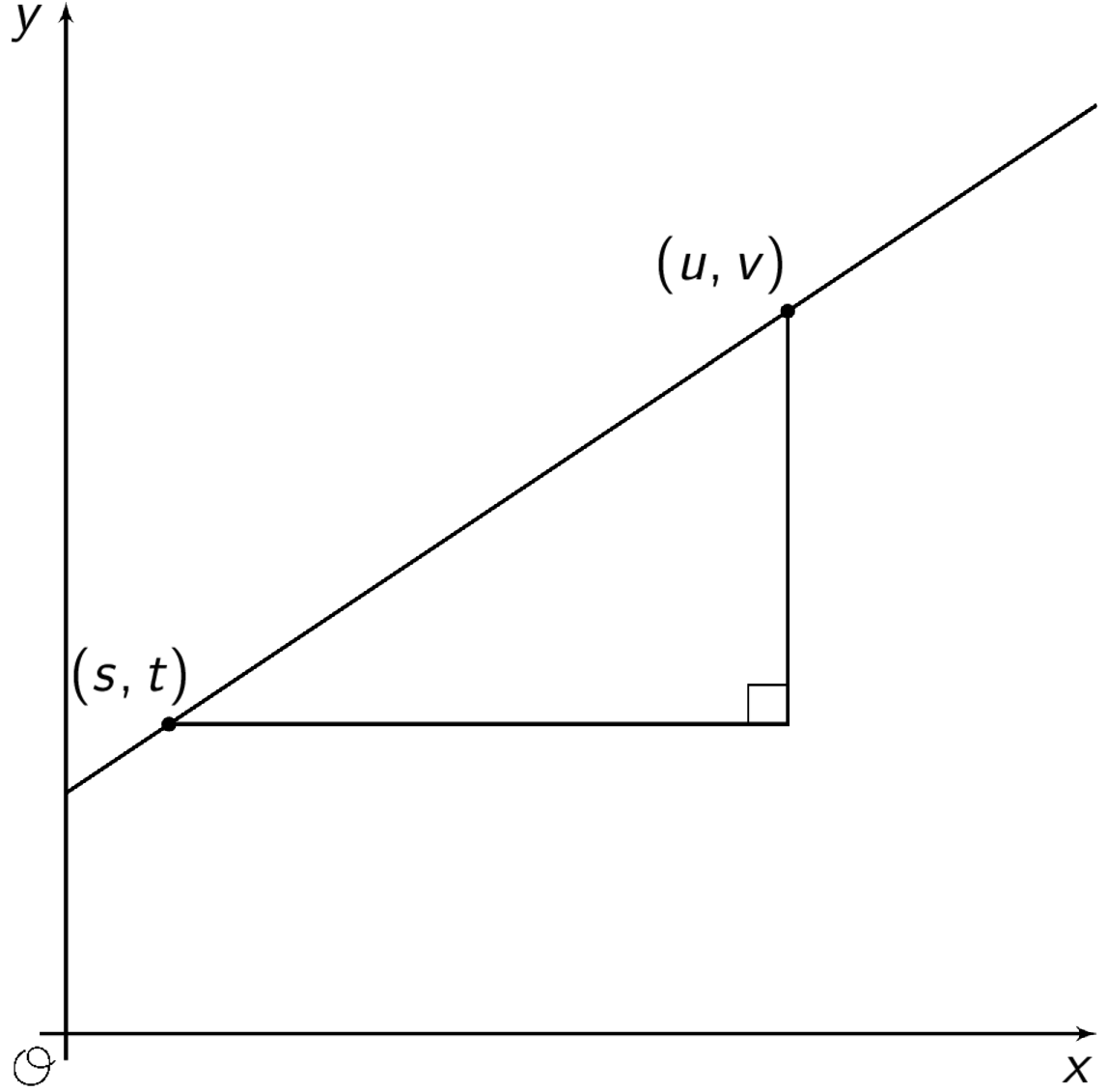

3. Write an expression for the slope of the line in the graph using the letters \(u, v, s,\) and \(t\).





Let's say we have a glass cylinder filled with 50 ml of water and a bunch of marbles that are 3 ml in volume. If we drop marbles into the cylinder one at a time, we can watch the height of the water increase by the same amount, 3 ml, for each one added. This constant rate of change means there is a linear relationship between the number of marbles and the height of the water. Add one marble, the water height goes up 3 ml. Add 2 marbles, the water height goes up 6 ml. Add \(x\) marbles, the water height goes up \(3x\) ml.

Reasoning this way, we can calculate that the height, \(y\), of the water for \(x\) marbles is \(y=3x+50\). Any linear relationships can be expressed in the form \(y=mx+b\) using just the rate of change, \(m\), and the initial amount, \(b\). The 3 represents the rate of change, or slope of the graph, and the 50 represents the initial amount, or vertical intercept of the graph. We'll learn about some more ways to think about this equation in future lessons.

Now what if we didn't have a description to use to figure out the slope and the vertical intercept? That's okay so long as we can find some points on the line! For the line graphed here, two of the points on the line are \((3,3)\) and \((9,5)\) and we can use these points to draw in a slope triangle as shown:

The slope of this line is the quotient of the length of the vertical side of the slope triangle and the length of the horizontal side of the slope triangle. So the slope, \(m\), is \(\frac{\text{vertical change}}{\text{horizontal change}}=\frac26=\frac13\). We can also see from the graph that the vertical intercept, \(b\), is 2. Putting these together, we can say that the equation for this line is \(y=\frac13x+2\).
