Lesson 11
Finding Distances in the Coordinate Plane
Let’s find distances in the coordinate plane.
Problem 1

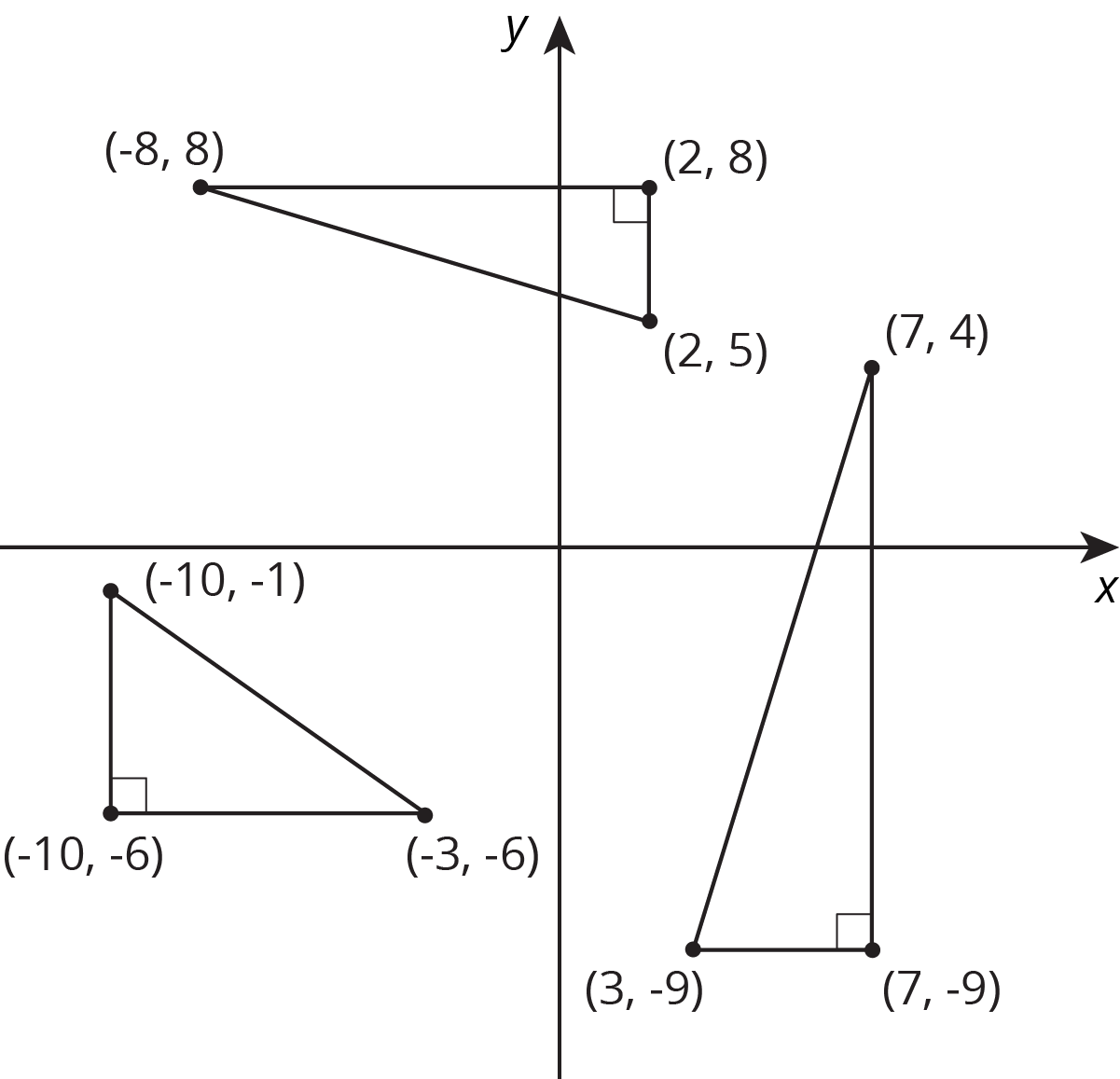

The right triangles are drawn in the coordinate plane, and the coordinates of their vertices are labeled. For each right triangle, label each leg with its length.
![3 right triangles on a xy plane.](https://cms-im.s3.amazonaws.com/ZzG6WVPouYVbu2Epdkay7sH1?response-content-disposition=inline%3B%20filename%3D%228-8.8.C11.PP.Image.0001.png%22%3B%20filename%2A%3DUTF-8%27%278-8.8.C11.PP.Image.0001.png&response-content-type=image%2Fpng&X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAXQCCIHWF3XOEFOW4%2F20240726%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20240726T232512Z&X-Amz-Expires=604800&X-Amz-SignedHeaders=host&X-Amz-Signature=0fcbaae431775a45801c3eed9af97ea8047f3db0f18b57d173d3775b53e8877c)
Problem 2
Find the distance between each pair of points. If you get stuck, try plotting the points on graph paper.
- \(M=(0,\text-11)\) and \(P=(0,2)\)
- \(A=(0,0)\) and \(B=(\text-3, \text-4)\)
-
\(C=(8,0)\) and \(D=(0, \text-6)\)
Problem 3
- Find an object that contains a right angle. This can be something in nature or something that was made by humans or machines.
- Measure the two sides that make the right angle. Then measure the distance from the end of one side to the end of the other.
- Draw a diagram of the object, including the measurements.
- Use the Pythagorean Theorem to show that your object really does have a right angle.
Problem 4

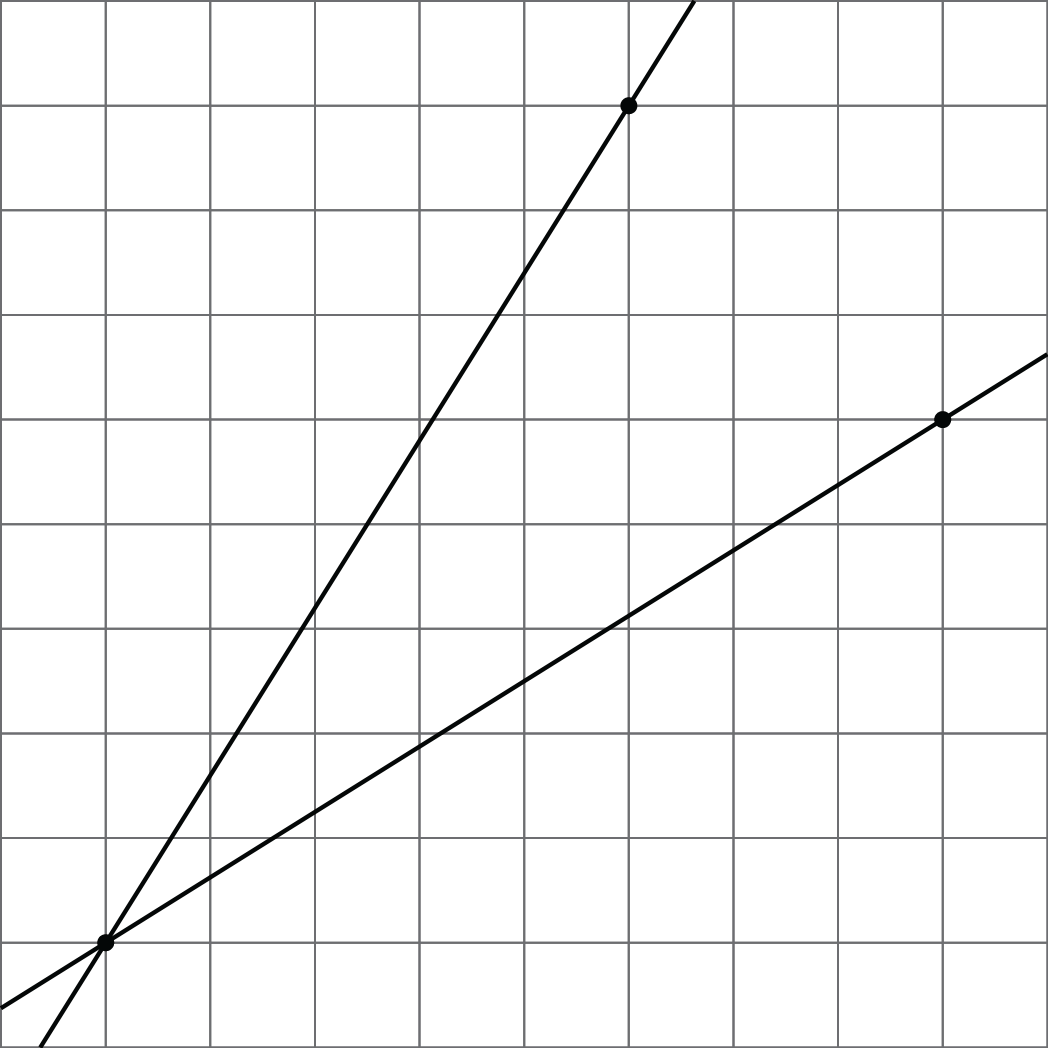

Which line has a slope of 0.625, and which line has a slope of 1.6? Explain why the slopes of these lines are 0.625 and 1.6.
![Two lines on a grid that intersect at a point. 2nd point on Top line is 8 up and 5 right from 1st point. 2nd point on bottom line is 5 up and 8 right from 1st point.](https://cms-im.s3.amazonaws.com/rkQkdRusemddJnCSpFMqUcUV?response-content-disposition=inline%3B%20filename%3D%228-8.2.C.PP.Image.11.png%22%3B%20filename%2A%3DUTF-8%27%278-8.2.C.PP.Image.11.png&response-content-type=image%2Fpng&X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAXQCCIHWF3XOEFOW4%2F20240726%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20240726T232512Z&X-Amz-Expires=604800&X-Amz-SignedHeaders=host&X-Amz-Signature=663b121a575db6fc0288bc387e4ad90ac53821a0ba5f6a26904a3811f45847e2)
Problem 5

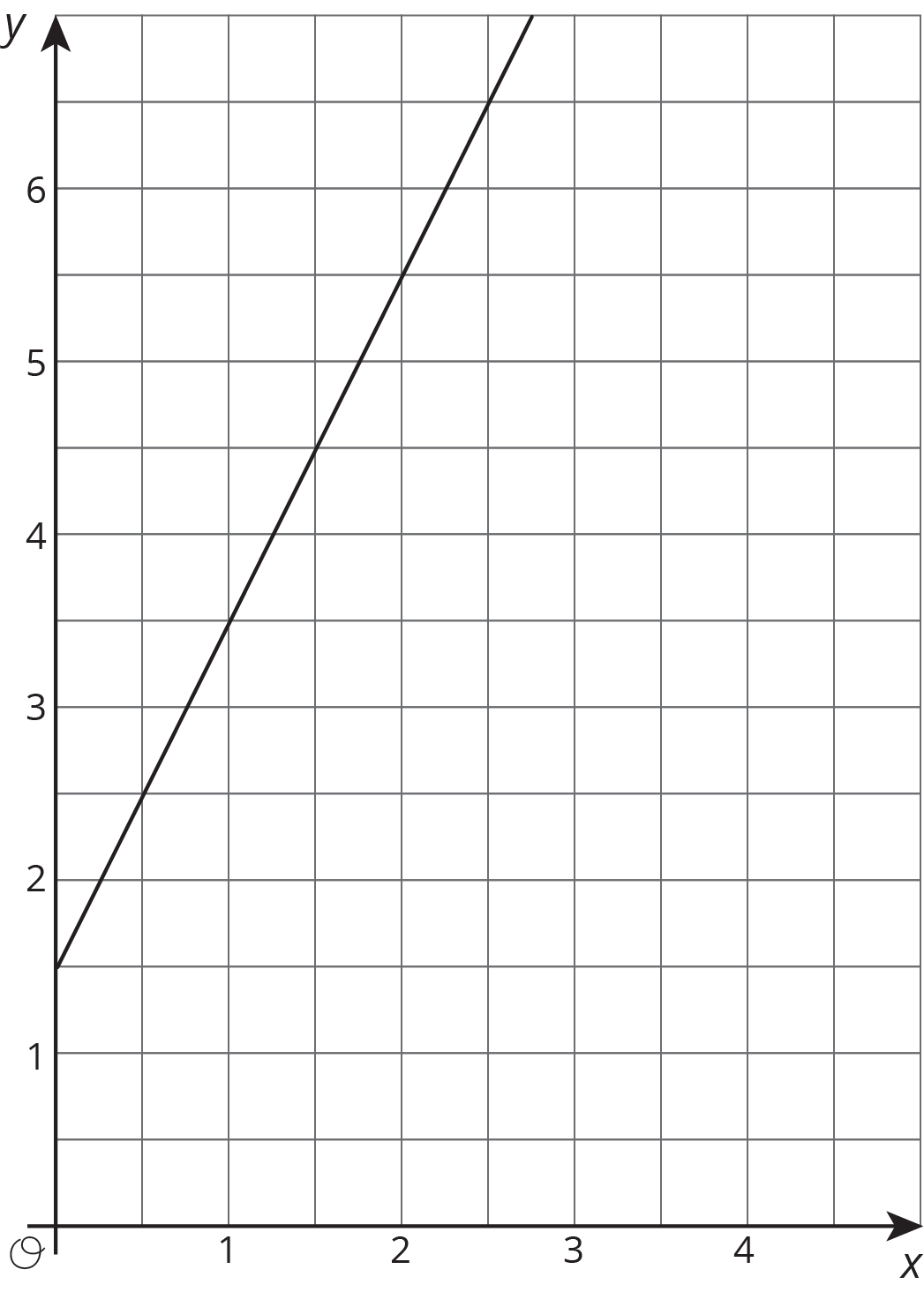

Write an equation for the graph.
![Horizontal axis, 0 to 4, 1’s. Vertical axis, 0 to 6, 1’s. Line with slope=2, y intercept =1.5.](https://cms-im.s3.amazonaws.com/d4Ub2LXD2awc8GSmFzfoZsWn?response-content-disposition=inline%3B%20filename%3D%228-8.3.B7.PP.graph2.png%22%3B%20filename%2A%3DUTF-8%27%278-8.3.B7.PP.graph2.png&response-content-type=image%2Fpng&X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAXQCCIHWF3XOEFOW4%2F20240726%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20240726T232512Z&X-Amz-Expires=604800&X-Amz-SignedHeaders=host&X-Amz-Signature=9c316c58b103c8e73f5e8c94e05f31790f772d9bce67a3a4c8eed5a4df405e2a)
