Lesson 14
Alternate Interior Angles
Let’s explore why some angles are always equal.
Problem 1
Use the diagram to find the measure of each angle.
- \(m\angle ABC\)
- \(m\angle EBD\)
- \(m\angle ABE\)
![Two lines, line E C and line A D, that intersect at point B. Angle C B D is labeled 45 degrees.](https://cms-im.s3.amazonaws.com/5ZyMLomGE6YoMm3pmEMVXaaS?response-content-disposition=inline%3B%20filename%3D%228.1.D.PP.Image.01.png%22%3B%20filename%2A%3DUTF-8%27%278.1.D.PP.Image.01.png&response-content-type=image%2Fpng&X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAXQCCIHWF3XOEFOW4%2F20240727%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20240727T005951Z&X-Amz-Expires=604800&X-Amz-SignedHeaders=host&X-Amz-Signature=aaeb442c2b47dcba28d22b8777da09163b62ad5dd62c11ef0f58f9f845fb5acf)
Problem 2

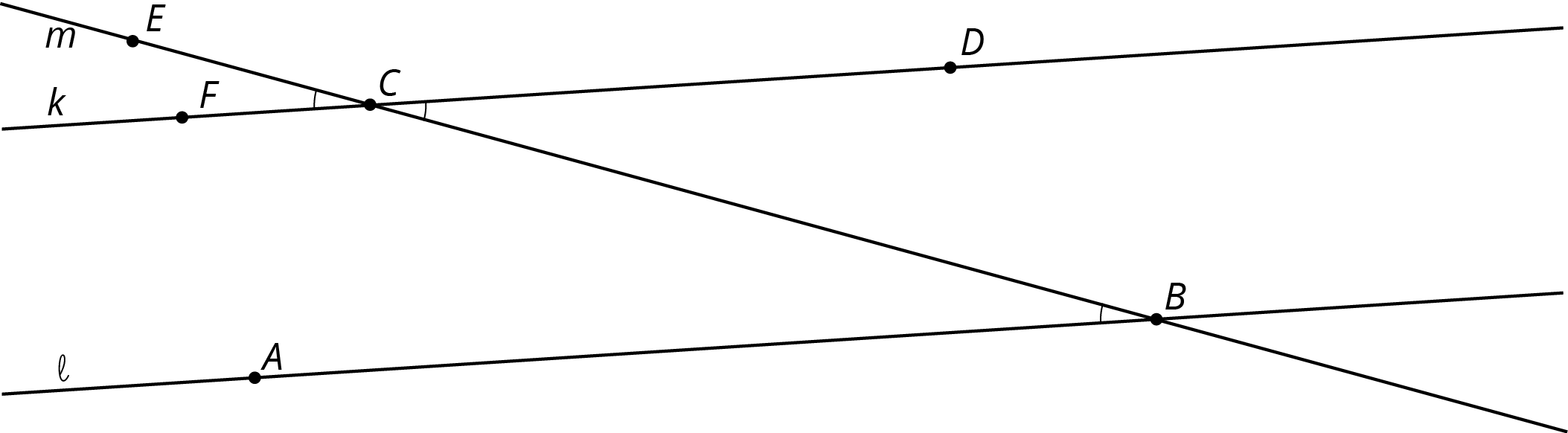

Lines \(k\) and \(\ell\) are parallel, and the measure of angle \(ABC\) is 19 degrees.
![Two parallel lines, k and l, cut by transversal line m.](https://cms-im.s3.amazonaws.com/DEJUC5fkJ5jfMnzU5gjdQA85?response-content-disposition=inline%3B%20filename%3D%228-8.1.B.PP.Image.12.png%22%3B%20filename%2A%3DUTF-8%27%278-8.1.B.PP.Image.12.png&response-content-type=image%2Fpng&X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAXQCCIHWF3XOEFOW4%2F20240727%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20240727T005951Z&X-Amz-Expires=604800&X-Amz-SignedHeaders=host&X-Amz-Signature=7e5b12de5ac661712d668a0078452e0d843d2ad5c34b23e1fa74208b1d4ebd2a)
- Explain why the measure of angle \(ECF\) is 19 degrees. If you get stuck, consider translating line \(\ell\) by moving \(B\) to \(C\).
- What is the measure of angle \(BCD\)? Explain.
Problem 3

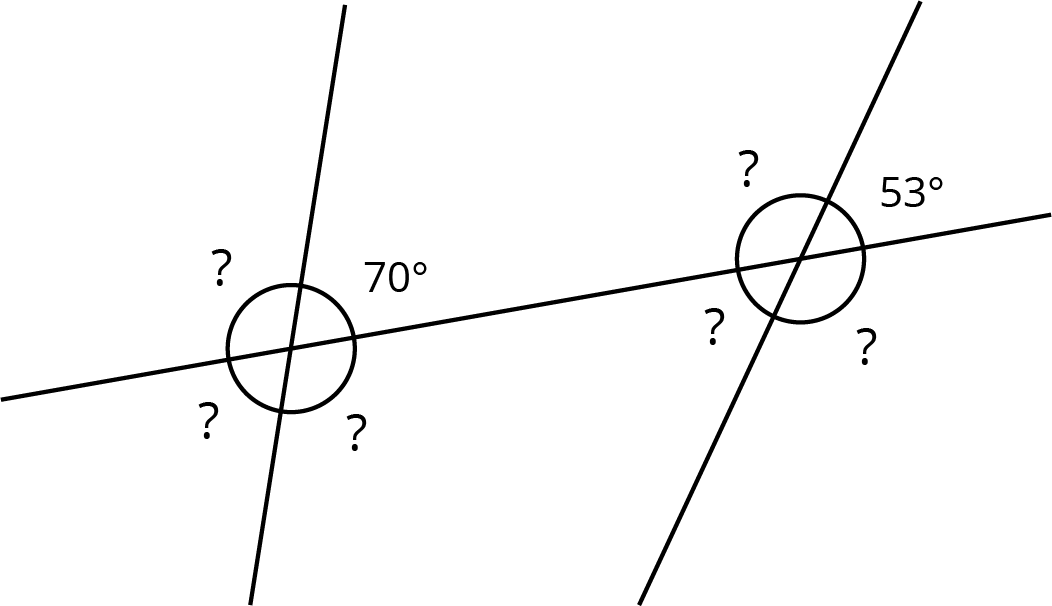

The diagram shows three lines with some marked angle measures.
![Two lines that do not intersect. A third line intersects with both lines.](https://cms-im.s3.amazonaws.com/23cy1uwuxU8NDj2Eb5D4jMR8?response-content-disposition=inline%3B%20filename%3D%228-8.1.D14.newPP.01.png%22%3B%20filename%2A%3DUTF-8%27%278-8.1.D14.newPP.01.png&response-content-type=image%2Fpng&X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAXQCCIHWF3XOEFOW4%2F20240727%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20240727T005951Z&X-Amz-Expires=604800&X-Amz-SignedHeaders=host&X-Amz-Signature=e0a466d5fbb41aec23f2fa0dcf092f63316fcd65e995c7deb3bbf9daf0c2d8c4)
Find the missing angle measures marked with question marks.
Problem 4

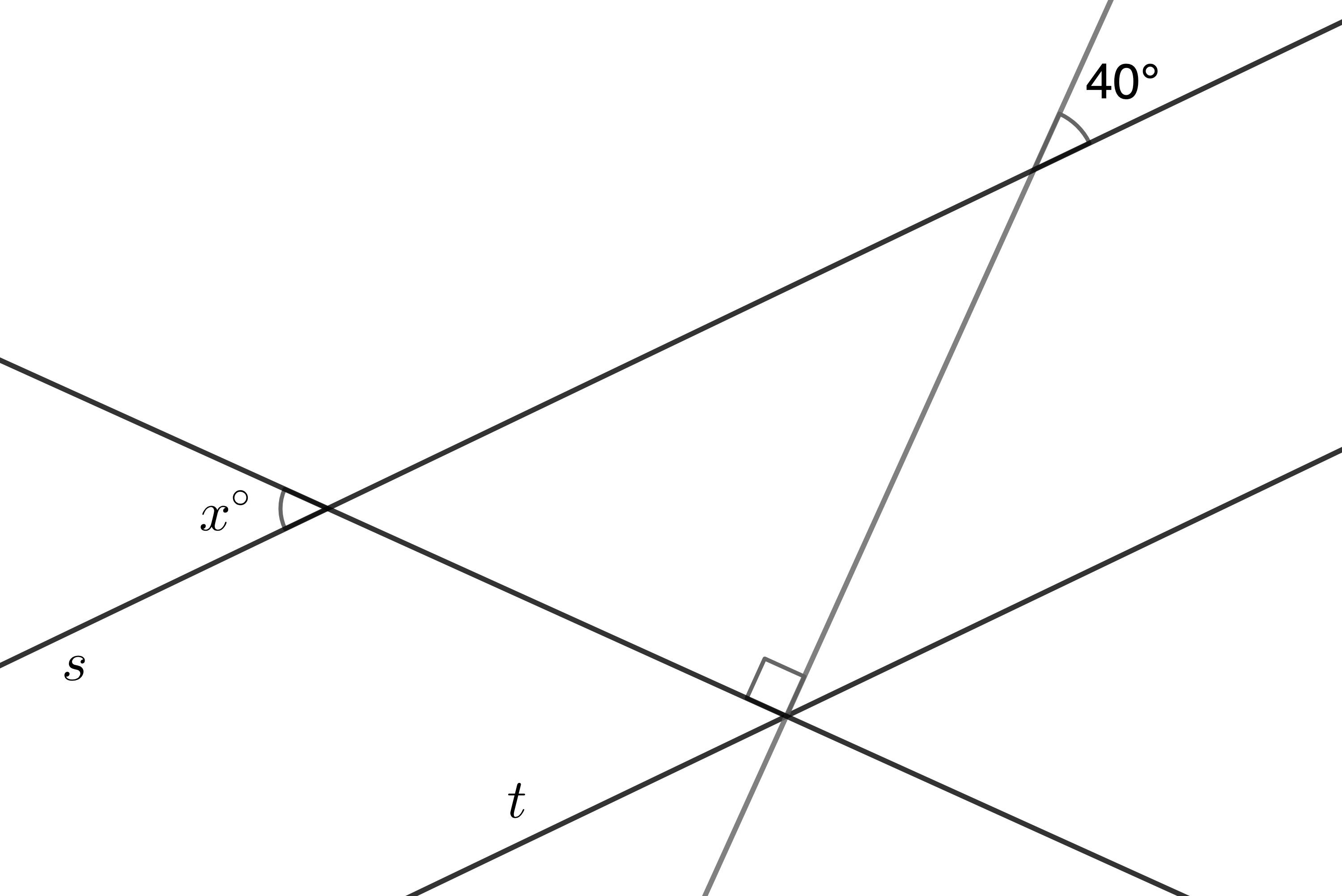

Lines \(s\) and \(t\) are parallel. Find the value of \(x\).
![Four lines. Two parallel lines are labeled s and t. Two other lines that intersect at a right angle at a point on line t. One angle is labeled 40 degrees. Another angle is labeled x degrees.](https://cms-im.s3.amazonaws.com/C7VehJtgLrE7Ymp34nvB1iAG?response-content-disposition=inline%3B%20filename%3D%22angle%20diagram.png%22%3B%20filename%2A%3DUTF-8%27%27angle%2520diagram.png&response-content-type=image%2Fpng&X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAXQCCIHWF3XOEFOW4%2F20240727%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20240727T005951Z&X-Amz-Expires=604800&X-Amz-SignedHeaders=host&X-Amz-Signature=4864a43f1577192e6cc8edf7c4117246ab0a4c2c37efd4de1beb5e073a4ab69b)
Problem 5

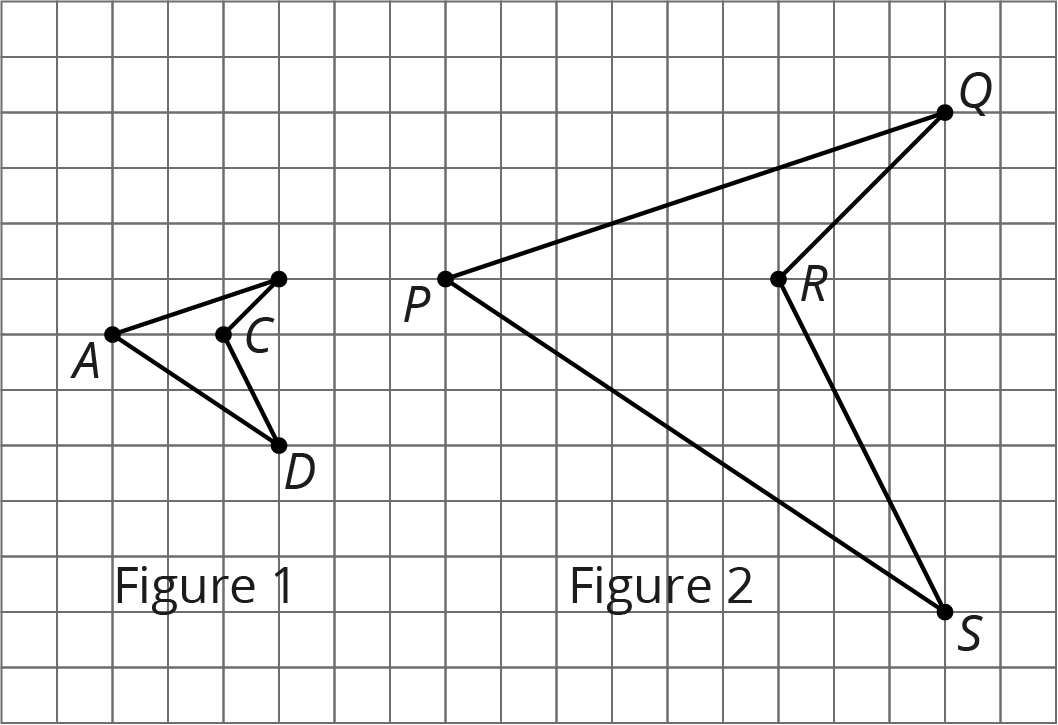

The two figures are scaled copies of each other.
- What is the scale factor that takes Figure 1 to Figure 2?
- What is the scale factor that takes Figure 2 to Figure 1?
![Two identical quadrilaterals on a grid.](https://cms-im.s3.amazonaws.com/2HiYuiLWKwCpKZp1muKQeR6s?response-content-disposition=inline%3B%20filename%3D%228-8.1.PP.7Grev6.png%22%3B%20filename%2A%3DUTF-8%27%278-8.1.PP.7Grev6.png&response-content-type=image%2Fpng&X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAXQCCIHWF3XOEFOW4%2F20240727%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20240727T005951Z&X-Amz-Expires=604800&X-Amz-SignedHeaders=host&X-Amz-Signature=4599fa21661b50eeeebe464776672c7577f0ba0932555100e3e7e6d72bcc9ff9)
