Lesson 3

Let’s look at angles that are not right next to one another.

3.1: Finding Related Statements

Given $$a$$ and $$b$$ are numbers, and $$a+b=180$$, which statements also must be true?

$$a=180-b$$

$$a-180=b$$

$$360=2a+2b$$

$$a=90$$ and $$b=90$$

3.2: Polygon Angles

Use any useful tools in the geometry toolkit to identify any pairs of angles in these figures that are complementary or supplementary.

3.3: Vertical Angles

Use a straightedge to draw two intersecting lines. Use a protractor to measure all four angles whose vertex is located at the intersection.

Compare your drawing and measurements to the people in your group. Make a conjecture about the relationships between angle measures at an intersection.

3.4: Row Game: Angles

Find the measure of the angles in one column. Your partner will work on the other column. Check in with your partner after you finish each row. Your answers in each row should be the same. If your answers aren’t the same, work together to find the error and correct it.

column A

column B

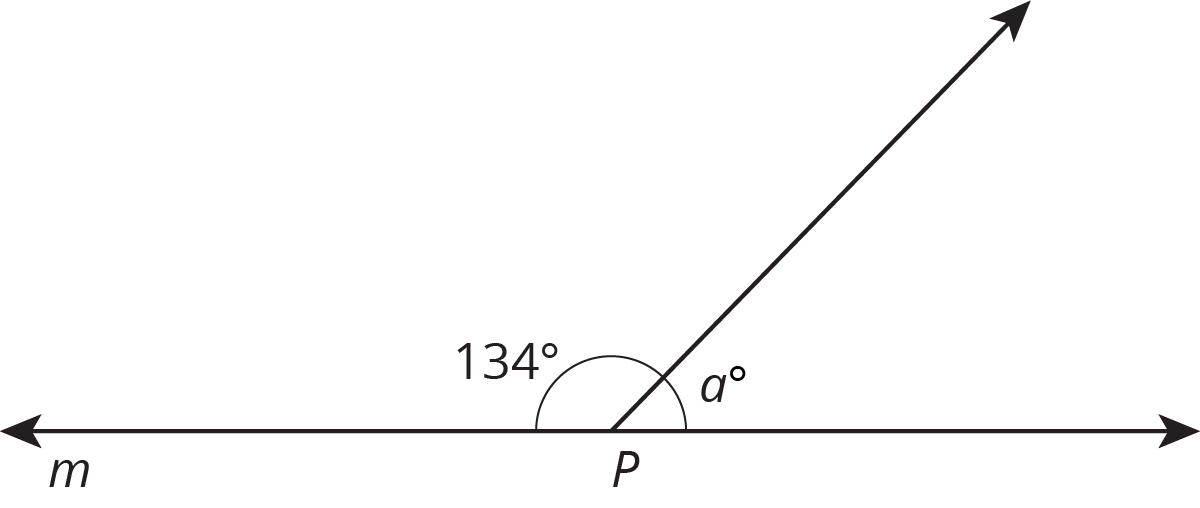

$$P$$ is on line $$m$$. Find the value of $$a$$.

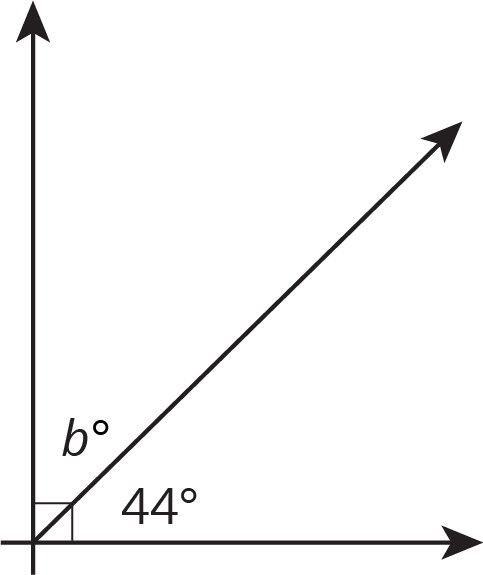

Find the value of $$b$$.

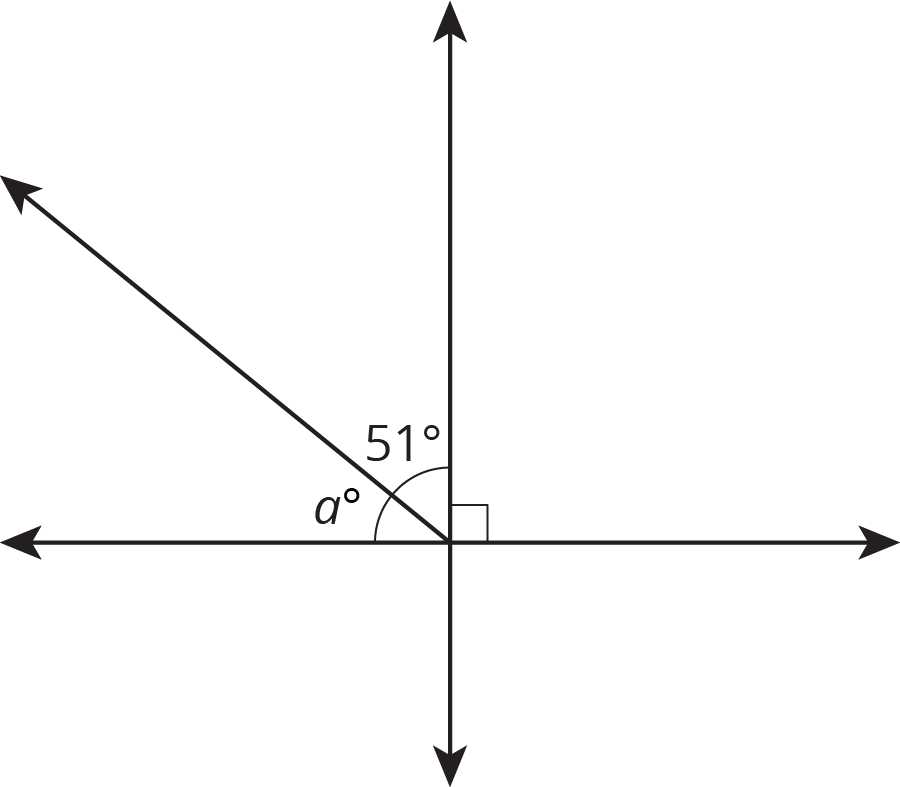

Find the value of $$a$$.

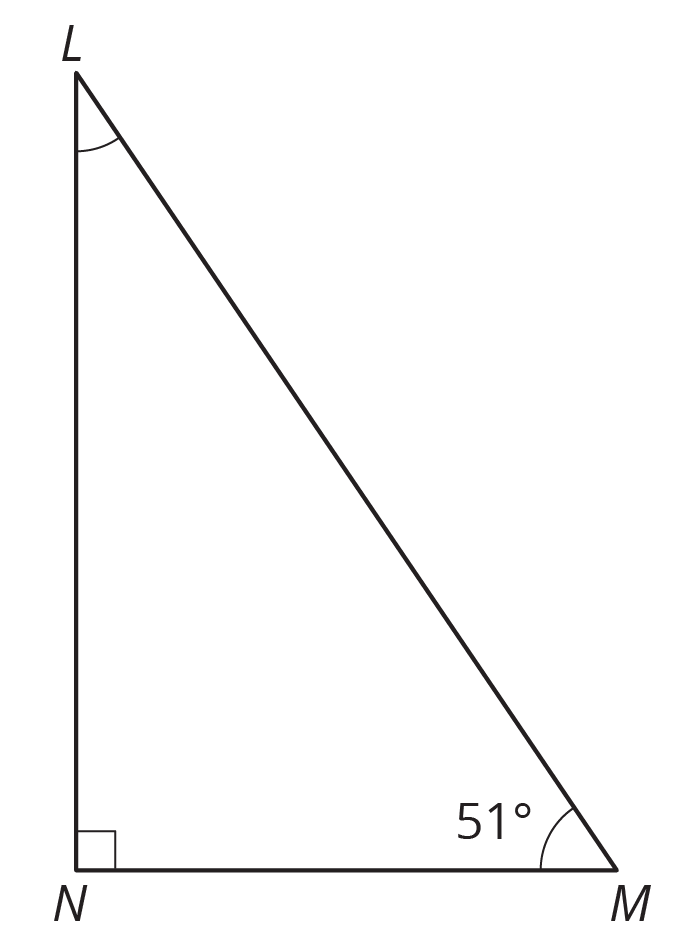

In right triangle $$LMN$$, angles $$L$$ and $$M$$ are complementary. Find the measure of angle $$L$$.

column A

column B

Angle $$C$$ and angle $$E$$ are supplementary. Find the measure of angle $$E$$.

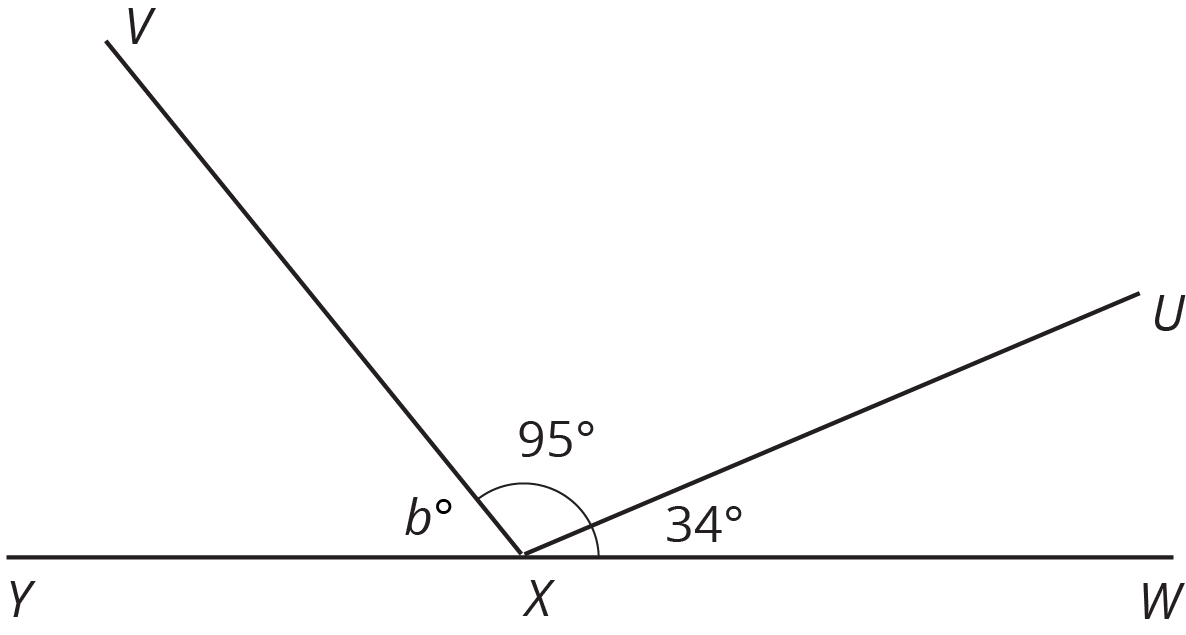

$$X$$ is on line $$WY$$. Find the value of $$b$$.

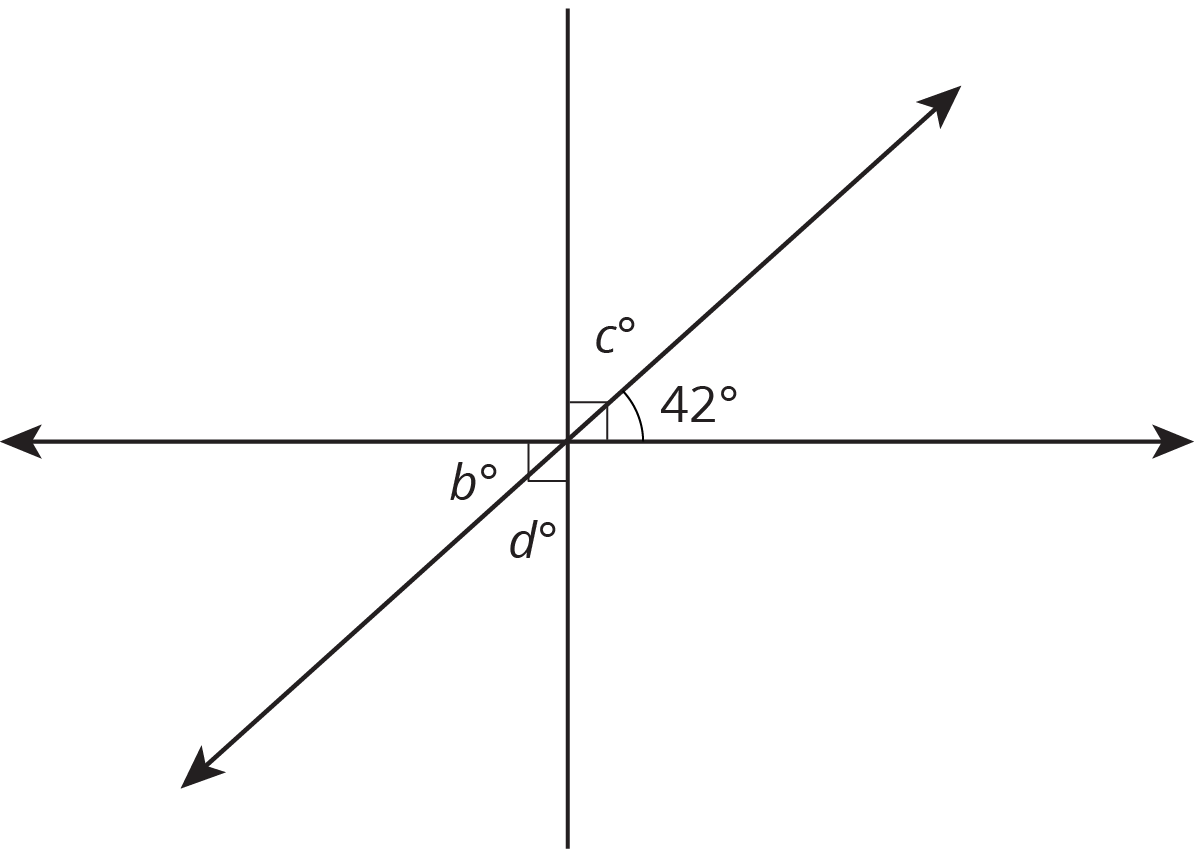

Find the value of $$c$$.

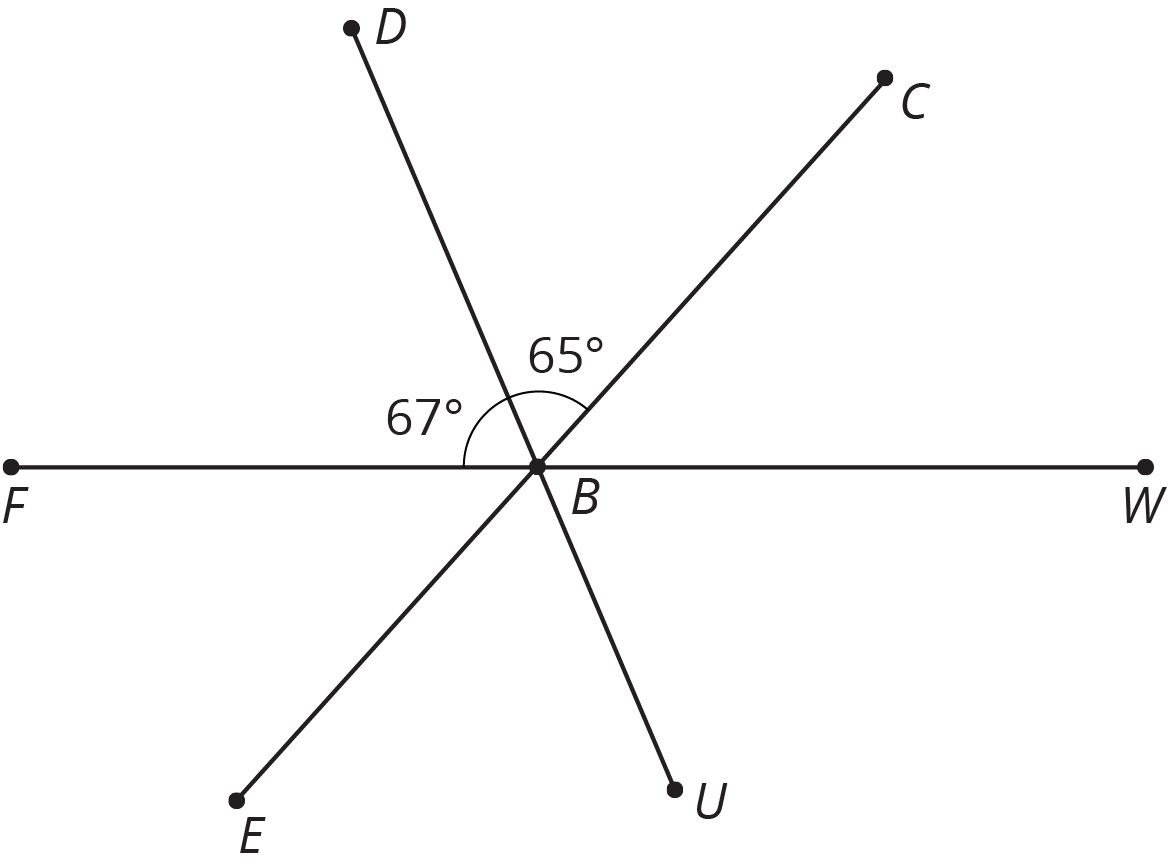

$$B$$ is on line $$FW$$. Find the measure of angle $$CBW$$.

Two angles are complementary. One angle measures 37 degrees. Find the measure of the other angle.

Two angles are supplementary. One angle measures 127 degrees. Find the measure of the other angle.

Summary

When two lines cross, they form two pairs of vertical angles. Vertical angles are across the intersection point from each other.

Vertical angles always have equal measure. We can see this because they are always supplementary with the same angle. For example:

This is always true!

$$a+b = 180$$ so $$a = 180-b$$.

$$c+b = 180$$ so $$c = 180-b$$.

That means $$a = c$$.

Glossary Entries

Adjacent angles share a side and a vertex.

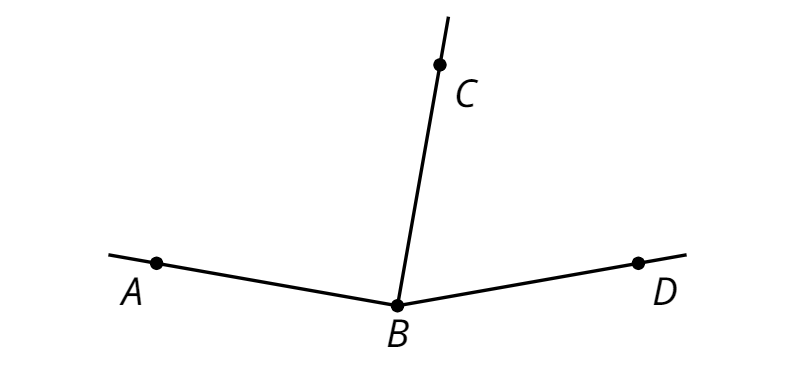

In this diagram, angle $$ABC$$ is adjacent to angle $$DBC$$.

• complementary

Complementary angles have measures that add up to 90 degrees.

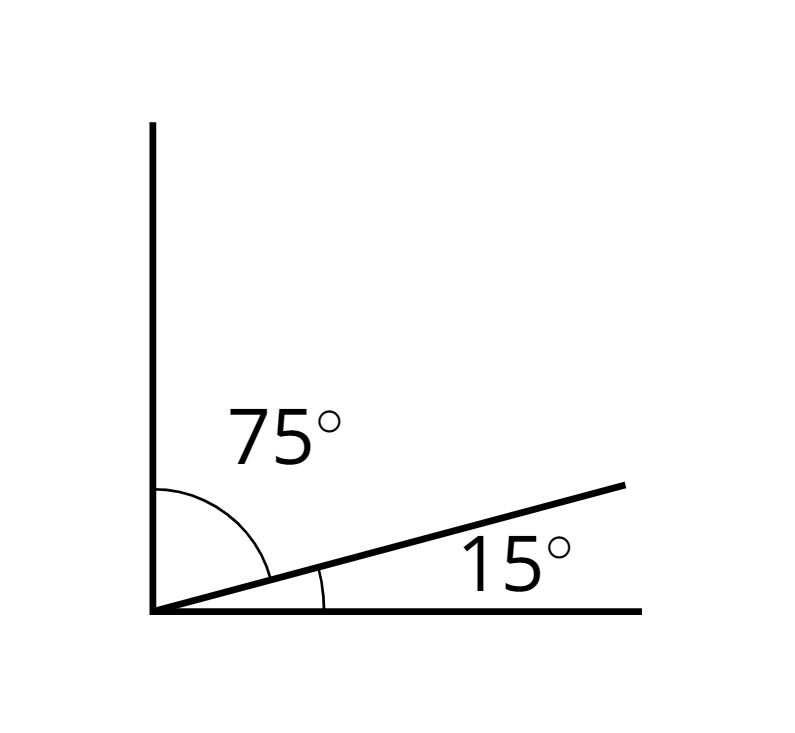

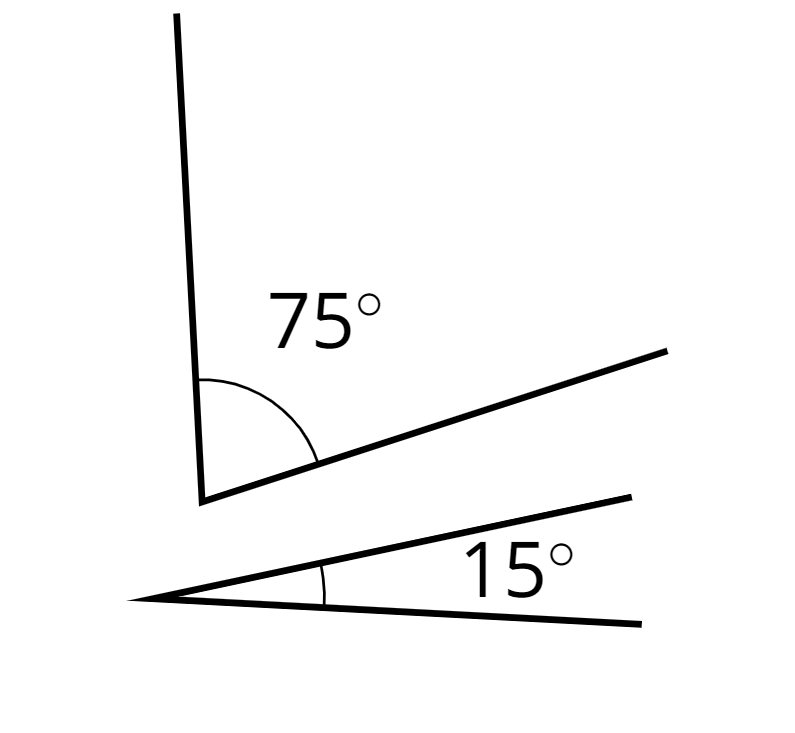

For example, a $$15^\circ$$ angle and a $$75^\circ$$ angle are complementary.

• right angle

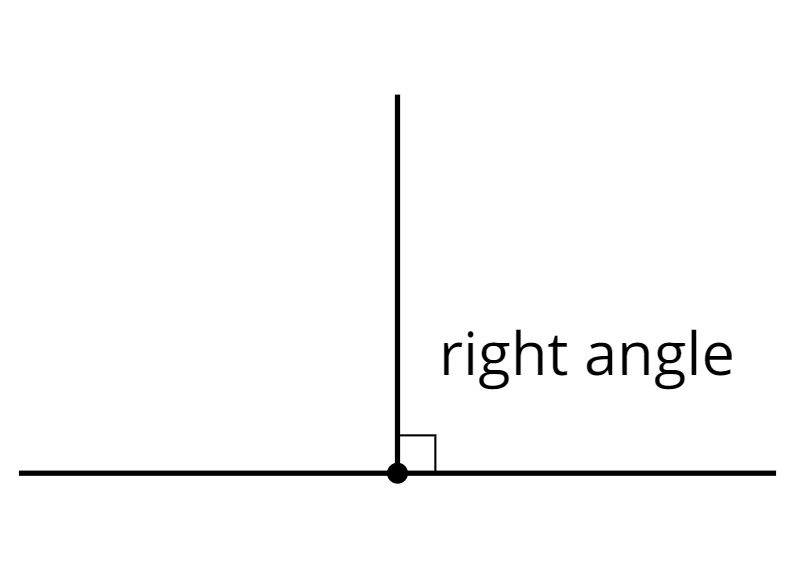

A right angle is half of a straight angle. It measures 90 degrees.

• straight angle

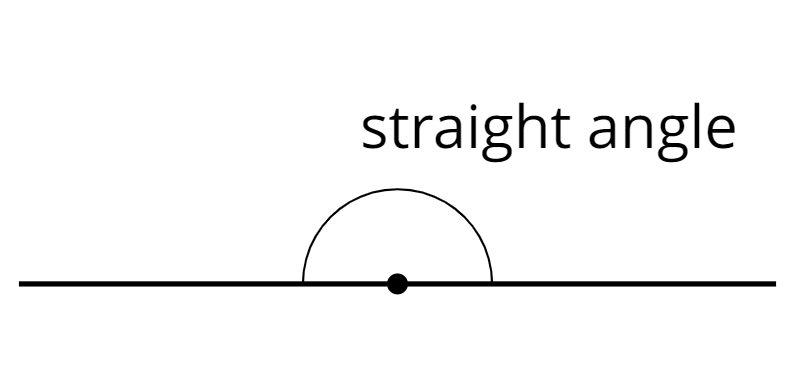

A straight angle is an angle that forms a straight line. It measures 180 degrees.

• supplementary

Supplementary angles have measures that add up to 180 degrees.

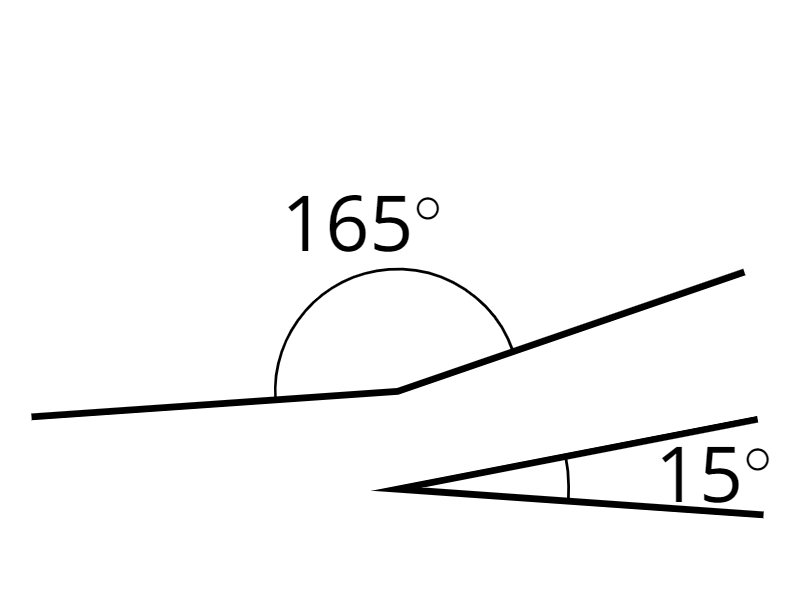

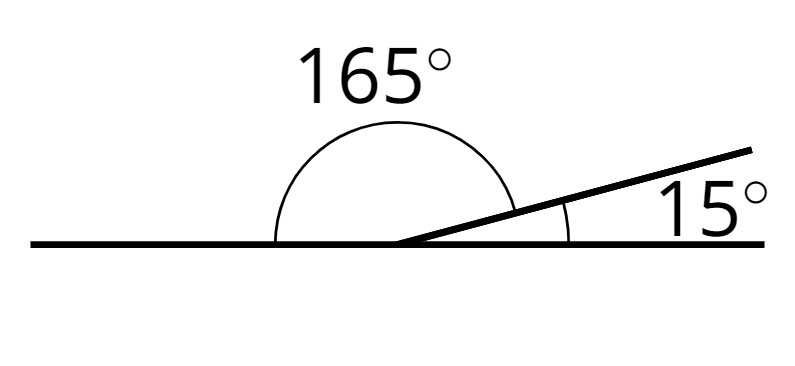

For example, a $$15^\circ$$ angle and a $$165^\circ$$ angle are supplementary.

• vertical angles

Vertical angles are opposite angles that share the same vertex. They are formed by a pair of intersecting lines. Their angle measures are equal.

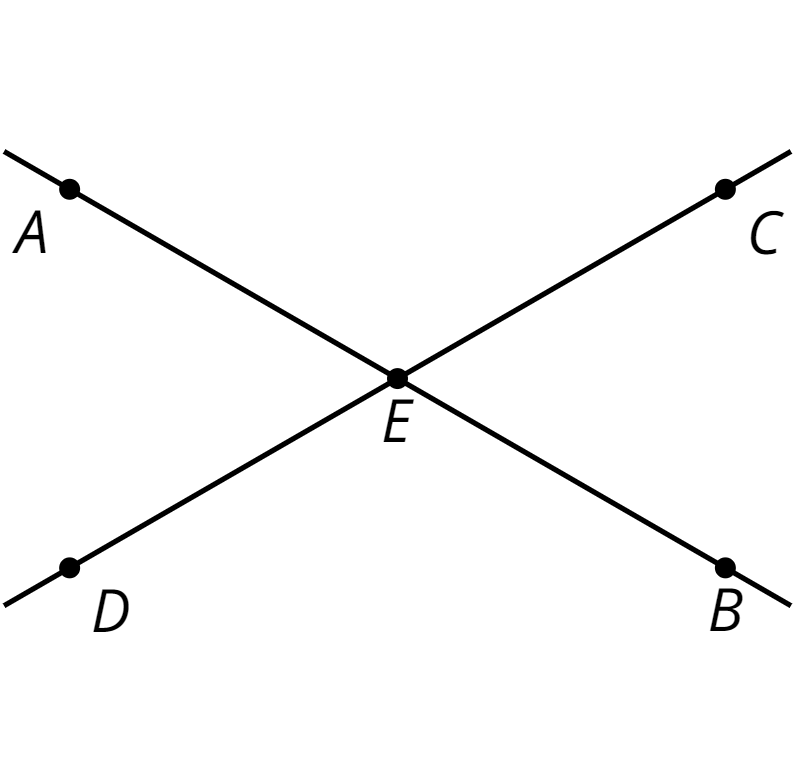

For example, angles $$AEC$$ and $$DEB$$ are vertical angles. If angle $$AEC$$ measures $$120^\circ$$, then angle $$DEB$$ must also measure $$120^\circ$$.

Angles $$AED$$ and $$BEC$$ are another pair of vertical angles.
