Lesson 2

Changing Temperatures

Let's add signed numbers.

2.1: Which One Doesn’t Belong: Arrows

Which pair of arrows doesn't belong?

  1.
    Number line.
  2.
    Number line.
  3.
    Number line.
  4.
    Number line.

2.2: Warmer and Colder

  1. Complete the table and draw a number line diagram for each situation.

    start (\(^\circ\text{C}\)) change (\(^\circ\text{C}\) final (\(^\circ \text{C}\)) addition equation
    a +40 10 degrees warmer +50 \(40 + 10 = 50\)
    b +40 5 degrees colder
    c +40 30 degrees colder
    d +40 40 degrees colder
    e +40 50 degrees colder



    1. A number line with 19 evenly spaced tick marks. The first tick mark is labeled negative 40 and each tick mark increases by 5. The final tick mark is labeled 50.
    2. A number line with 19 evenly spaced tick marks. The first tick mark is labeled negative 40 and each tick mark increases by 5. The final tick mark is labeled 50.
    3. A number line with 19 evenly spaced tick marks. The first tick mark is labeled negative 40 and each tick mark increases by 5. The final tick mark is labeled 50.
    4. A number line with 19 evenly spaced tick marks. The first tick mark is labeled negative 40 and each tick mark increases by 5. The final tick mark is labeled 50.
    5. A number line with 19 evenly spaced tick marks. The first tick mark is labeled negative 40 and each tick mark increases by 5. The final tick mark is labeled 50.
  2. Complete the table and draw a number line diagram for each situation.

    start (\(^\circ\text{C}\)) change (\(^\circ\text{C}\)) final (\(^\circ\text{C}\)) addition equation
    a -20 30 degrees warmer
    b -20 35 degrees warmer
    c -20 15 degrees warmer
    d -20 15 degrees colder



    1. A number line with 19 evenly spaced tick marks. The first tick mark is labeled negative 40 and each tick mark increases by 5. The final tick mark is labeled 50.
    2. A number line with 19 evenly spaced tick marks. The first tick mark is labeled negative 40 and each tick mark increases by 5. The final tick mark is labeled 50.
    3. A number line with 19 evenly spaced tick marks. The first tick mark is labeled negative 40 and each tick mark increases by 5. The final tick mark is labeled 50.
    4. A number line with 19 evenly spaced tick marks. The first tick mark is labeled negative 40 and each tick mark increases by 5. The final tick mark is labeled 50.

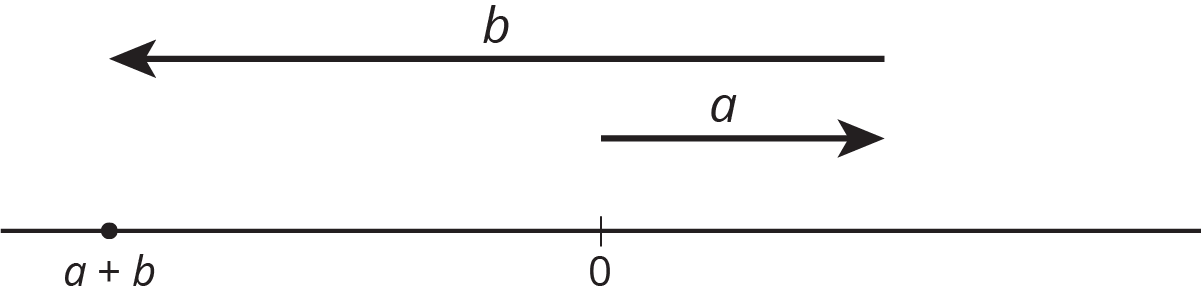

Number line.

For the numbers \(a\) and \(b\) represented in the figure, which expression is equal to \(|a+b|\)?

\(|a|+|b|\)

\(|a|-|b|\)

\(|b|-|a|\)

2.3: Winter Temperatures

One winter day, the temperature in Houston is \(8^\circ\) Celsius. Find the temperatures in these other cities. Explain or show your reasoning.

  1. In Orlando, it is \(10^\circ\) warmer than it is in Houston.
  2. In Salt Lake City, it is \(8^\circ\) colder than it is in Houston.
  3. In Minneapolis, it is \(20^\circ\) colder than it is in Houston.
  4. In Fairbanks, it is \(10^\circ\) colder than it is in Minneapolis.
  5. Use the thermometer applet to verify your answers and explore your own scenarios.

Summary

If it is \(42^\circ\) outside and the temperature increases by \(7^\circ\), then we can add the initial temperature and the change in temperature to find the final temperature.

\(42 + 7 = 49\)

If the temperature decreases by \(7^\circ\), we can either subtract \(42-7\) to find the final temperature, or we can think of the change as \(\text-7^\circ\). Again, we can add to find the final temperature.

\(42 + (\text-7) = 35\)

In general, we can represent a change in temperature with a positive number if it increases and a negative number if it decreases. Then we can find the final temperature by adding the initial temperature and the change. If it is \(3^\circ\) and the temperature decreases by \(7^\circ\), then we can add to find the final temperature.

\(3+ (\text-7) = \text-4\)

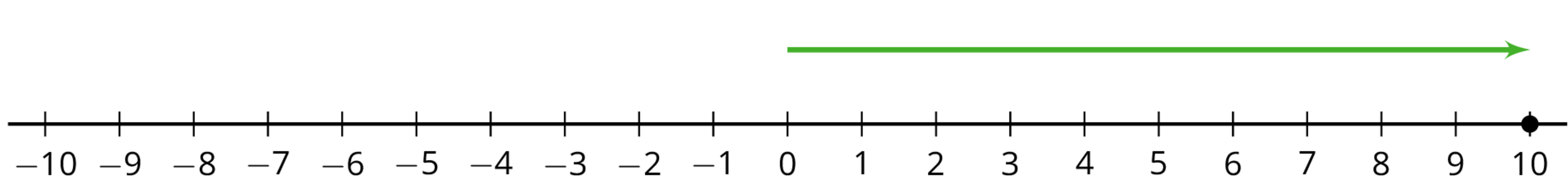

We can represent signed numbers with arrows on a number line. We can represent positive numbers with arrows that start at 0 and points to the right. For example, this arrow represents +10 because it is 10 units long and it points to the right.

A number line with the numbers negative 10 through 10 indicated. An arrow starts at 0, points to the left, and ends at negative 4.There is a solid dot indicated at 4.

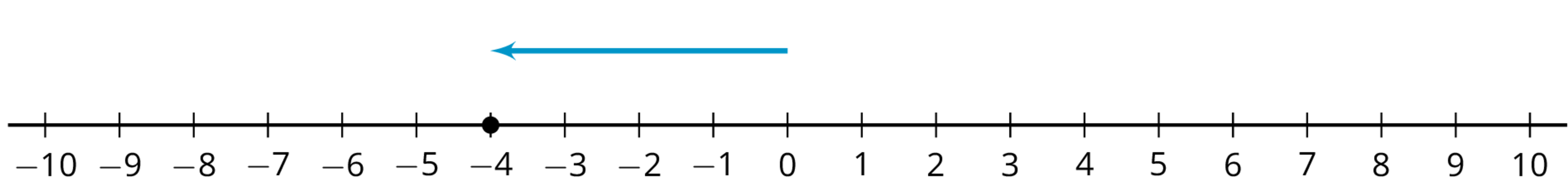

We can represent negative numbers with arrows that start at 0 and point to the left. For example, this arrow represents -4 because it is 4 units long and it points to the left.

A number line with the numbers negative 10 through 10 indicated. An arrow starts at 0, points to the left, and ends at negative 4.There is a solid dot indicated at 4.

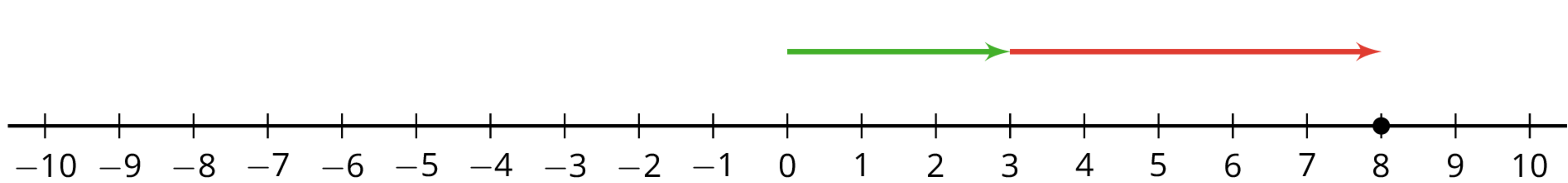

To represent addition, we put the arrows “tip to tail.” So this diagram represents \(3+5\):

A number line.

And this represents \(3 + (\text-5)\):

A number line.
