Lesson 8

Moves in Parallel

View Student Lesson

Problem 1

  1. Draw parallel lines \(AB\) and \(CD\).
  2. Pick any point \(E\). Rotate \(AB\) 90 degrees clockwise around \(E\).
  3. Rotate line \(CD\) 90 degrees clockwise around \(E\).
  4. What do you notice?

Solution

For access, consult one of our IM Certified Partners.

Problem 2

Use the diagram to find the measures of each angle. Explain your reasoning.

  1. \(m{\angle ABC}\)
  2. \(m{\angle EBD}\)
  3. \(m{\angle ABE}\)

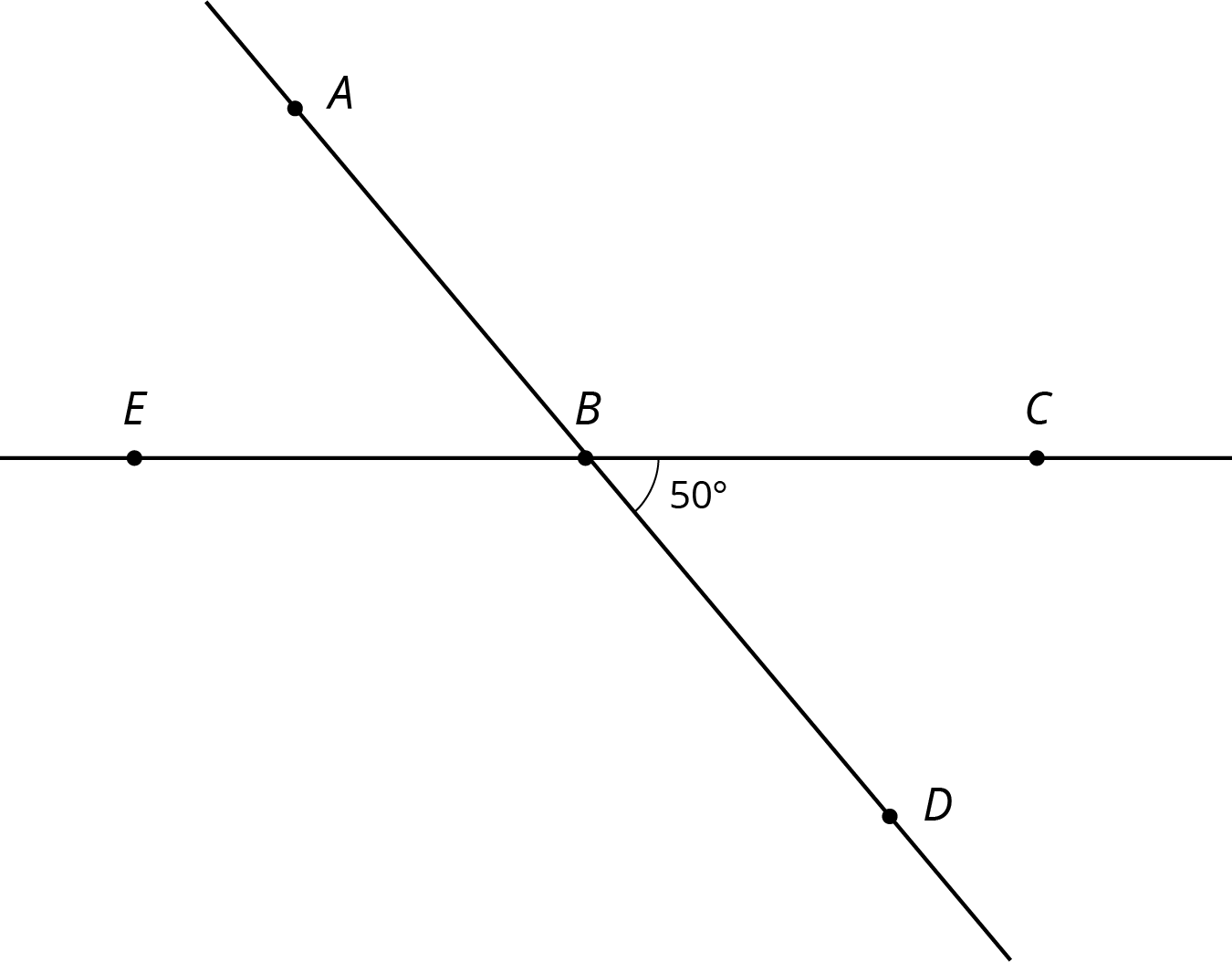

Lines A D and E C intersect at point B. Angle C B D is 50 degrees.

Solution

For access, consult one of our IM Certified Partners.

Problem 3

Points \(P\) and \(Q\) are plotted on a line.

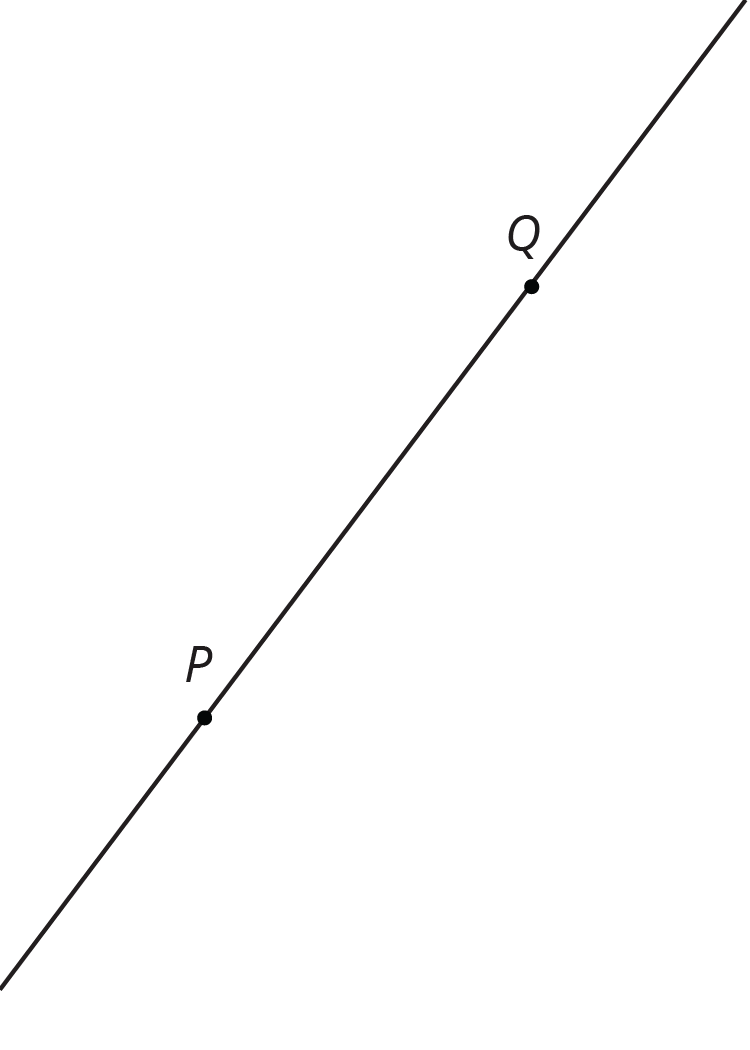

A line that slants upward and to the right with two plots labeled P and Q pointed on it. Point P is below point Q.
  1. Find a point \(R\) so that a 180-degree rotation with center \(R\) sends \(P\) to \(Q\) and \(Q\) to \(P\).
  2. Is there more than one point \(R\) that works for part a?

Solution

For access, consult one of our IM Certified Partners.

Problem 4

In the picture triangle \(A’B’C’\) is an image of triangle \(ABC\) after a rotation. The center of rotation is \(D\).

A triangle A B C and its image, triangle A prime B prime C prime and a point D. Side B C is 4, angle C prime is 50 degrees and angle B prime is 52 degrees.
  1. What is the length of side \(B’C’\)? Explain how you know.
  2. What is the measure of angle \(B\)? Explain how you know.
  3. What is the measure of angle \(C\)? Explain how you know.

Solution

For access, consult one of our IM Certified Partners.

(From Unit 1, Lesson 6.)

Problem 5

The point \((\text-4,1)\) is rotated 180 degrees counterclockwise using center \((0,0)\). What are the coordinates of the image?

A:

\((\text-1,\text-4)\)

B:

\((\text-1,4)\)

C:

\((4,1)\)

D:

\((4,\text-1)\)

Solution

For access, consult one of our IM Certified Partners.

(From Unit 1, Lesson 5.)
