Lesson 12

Interpreting Points on a Coordinate Plane

12.1: Unlabeled Points (5 minutes)

Warm-up

In this warm-up, students practice skills that they have developed for plotting points in all 4 quadrants of the coordinate plane. This warm-up also gives students the opportunity to describe points that do not fall nicely on the intersection of grid lines. In the next few activities, students apply these skills to answer questions in context.

Launch

Give students 3 minutes of quiet work time followed by whole-class discussion.

Student Facing

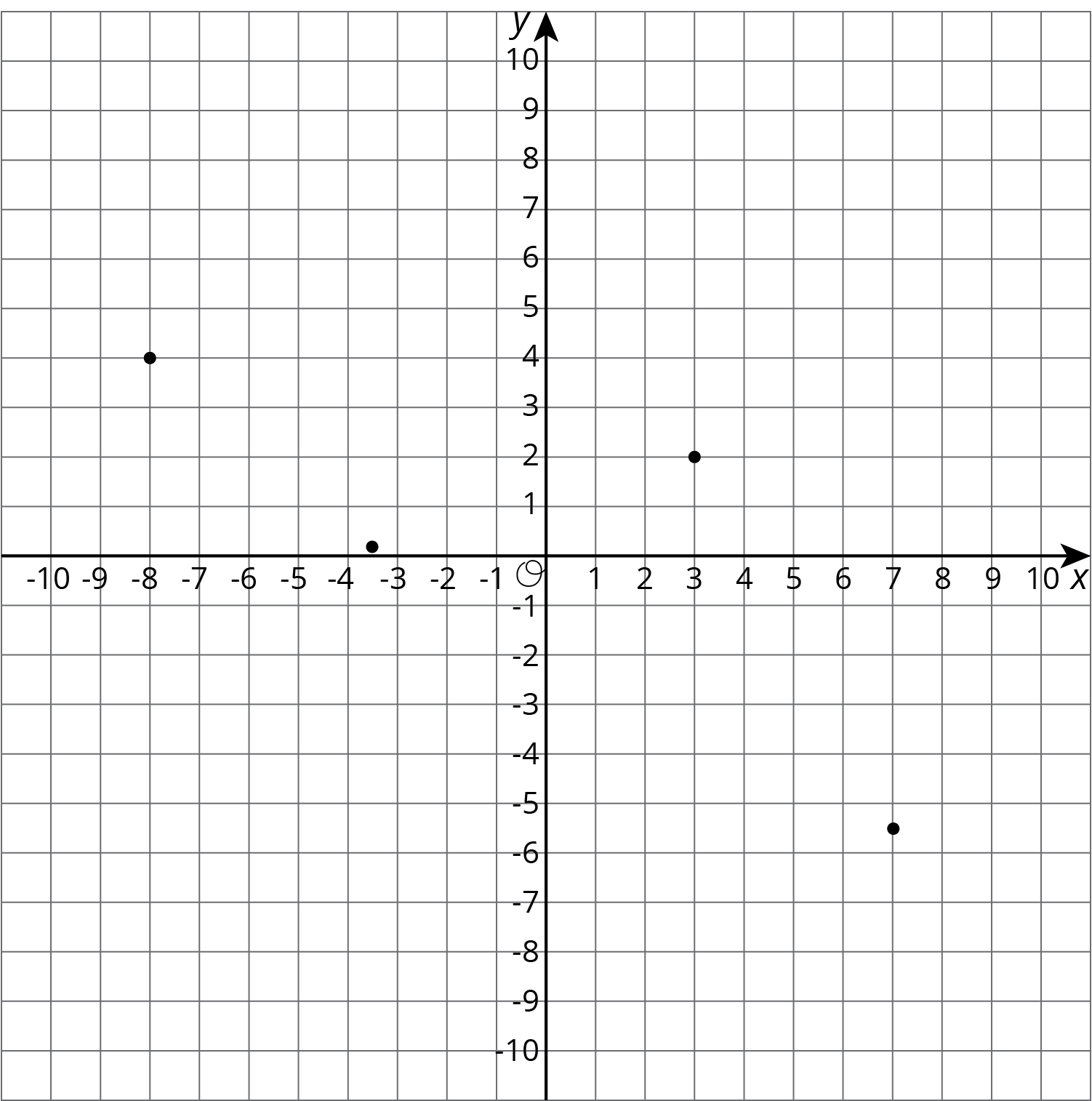

Label each point on the coordinate plane with the appropriate letter and ordered pair.

Coordinate plane.



\(A = (7, \text-5.5)\)

\(B = (\text-8, 4)\)

\(C = (3, 2)\)

\(D = (\text-3.5, 0.2)\)

Student Response

For access, consult one of our IM Certified Partners.

Anticipated Misconceptions

Some students may have trouble locating decimal values on a coordinate plane. (They have placed decimals on horizontal number lines before, but up to this point have mostly seen coordinates that are integers or 0.5's.) Demonstrate how point \(B\) is 4 units above the \(x\)-axis by tracing a pencil 4 units vertically to land on point \(B\). Then ask, "What if the point was only 0.2 units above the \(x\)-axis? Where would it go?"

Activity Synthesis

The main goal of discussion is to review the order of ordered pairs and make sense of points that don't fall on the intersection of grid lines. Invite students to explain how they knew which points matched with which coordinates. Ask students how they would make sense of point \(D\), since it doesn't fall nicely where grid lines cross.

12.2: Account Balance (15 minutes)

Activity

In this activity, students interpret points in the coordinate plane that correspond to the balance in a bank account (MP2). Since bank accounts are not likely to be familiar to students in grade 6, they will need to be oriented to the context.

Launch

Arrange students in groups of 2. Tell students that when someone opens a bank account, they have to put money into the account. The "account balance" is the amount of money in the account at any given time. For example, they might put $350 into the account when they open it, and then the account balance will be 350. However, sometimes they have to borrow money from the bank and then their account balance is a negative value. For instance, if they have no money in the account and borrow $200, then the account balance is -200. The graph they see shows the account balance for a person's account at the start of each day for two weeks.

Give students 10 minutes of work time. Encourage students to check in with their partner after each problem and work to reach agreement if they disagree. Follow with whole-class discussion.

Action and Expression: Develop Expression and Communication. Invite students to talk about their ideas with a partner before writing them down. Display sentence frames to support students when they explain their ideas. For example, “I noticed _____ so I….”, “If _____ then _____ because….”
Supports accessibility for: Language; Organization
Conversing: MLR5 Co-craft Questions. In order to help students read and interpret the graph in this activity, first display the opening paragraph and graph without showing the questions that follow. Ask students to consider the graph and generate mathematical questions that could be answered by using the graph, such as “How much money was spent on Day 5?” or “What happened on Day 13?” Then, invite pairs to share their questions with the class. This helps students produce the language of mathematical questions and talk about the meaning behind the positive and negative coordinates in this task (e.g., owing money vs. putting money into the bank) prior to being asked to analyze the situation.
Design Principle(s): Cultivate conversation

Student Facing

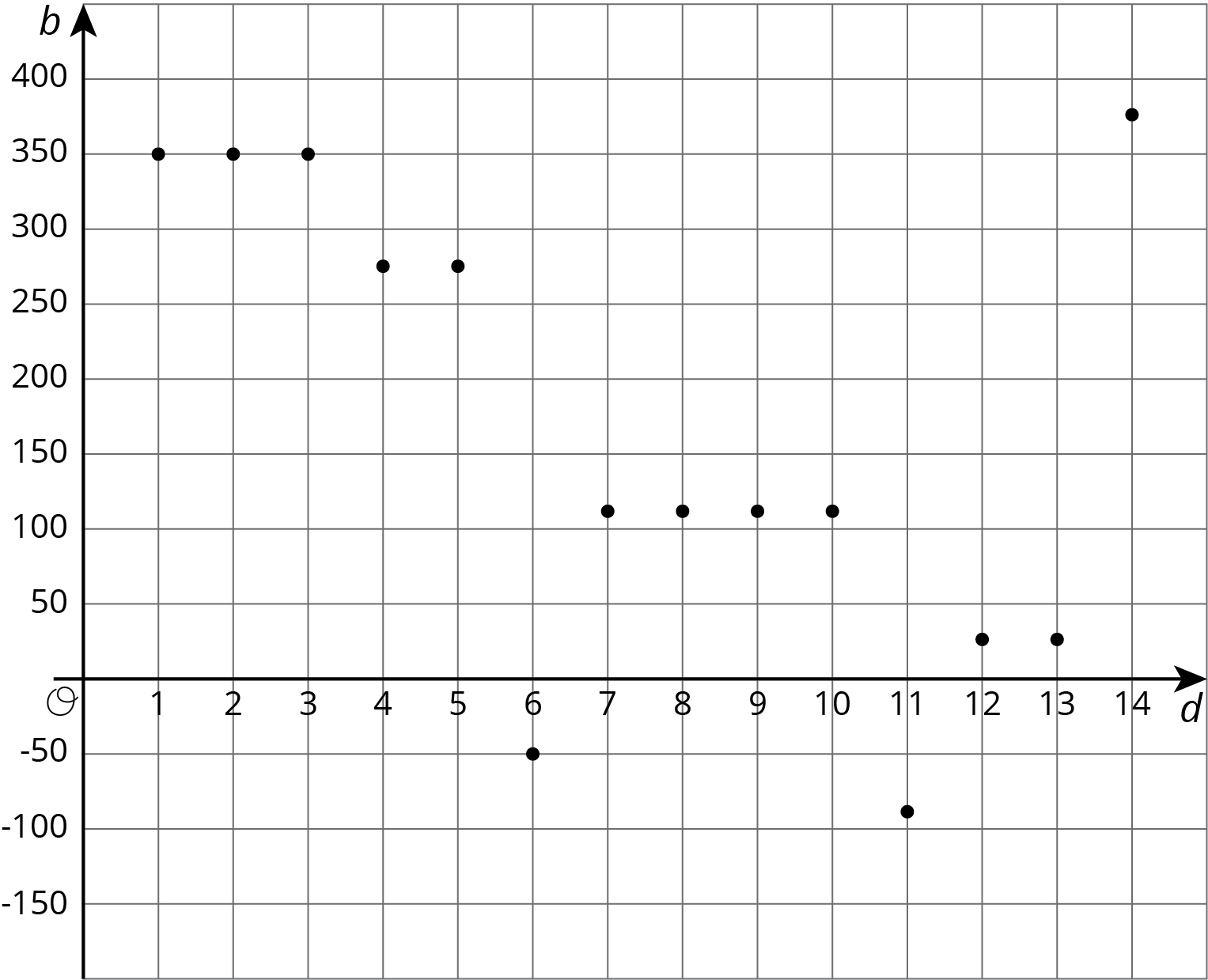

The graph shows the balance in a bank account over a period of 14 days. The axis labeled \(b\) represents account balance in dollars. The axis labeled \(d\) represents the day.

Coordinate plane.
  1. Estimate the greatest account balance. On which day did it occur?
  2. Estimate the least account balance. On which day did it occur?
  3. What does the point \((6, \text-50)\) tell you about the account balance?
  4. How can we interpret \(| \text- 50|\) in the context?

Student Response

For access, consult one of our IM Certified Partners.

Activity Synthesis

The purpose of the discussion is to check how comfortable students are with the concept of an account balance that included negative numbers and how to interpret the coordinate plane in this context. Ask for students to explain their responses to each question. To include more students in the discussion, consider asking:

  • "Do you agree or disagree? Why?"
  • "Who can restate ___’s reasoning in a different way?"
  • "Does anyone want to add on to _____’s reasoning?"

Bring attention to the days when the account balance changed. Ask students to come up with a story of what might have happened on those days.

12.3: High and Low Temperatures (15 minutes)

Activity

Students reason abstractly and quantitatively about temperatures over time graphed on coordinate axes (MP2). The goal of this activity is for students to use inequalities to describe the location of points on a coordinate grid in one direction. This activity also introduces the idea of vertical difference on the coordinate plane using a familiar context. Students may use previous strategies such as counting squares or may add or subtract using negative numbers.

Launch

Arrange students in groups of 2. Allow students 3–4 minutes of quiet work time and 1–2 minutes to check results with their partner. Follow with a whole-class discussion.

Engagement: Develop Effort and Persistence. Connect a new concept to one with which students have experienced success. For example, remind students about the sea levels and elevation number line representations.
Supports accessibility for: Social-emotional skills; Conceptual processing

Student Facing

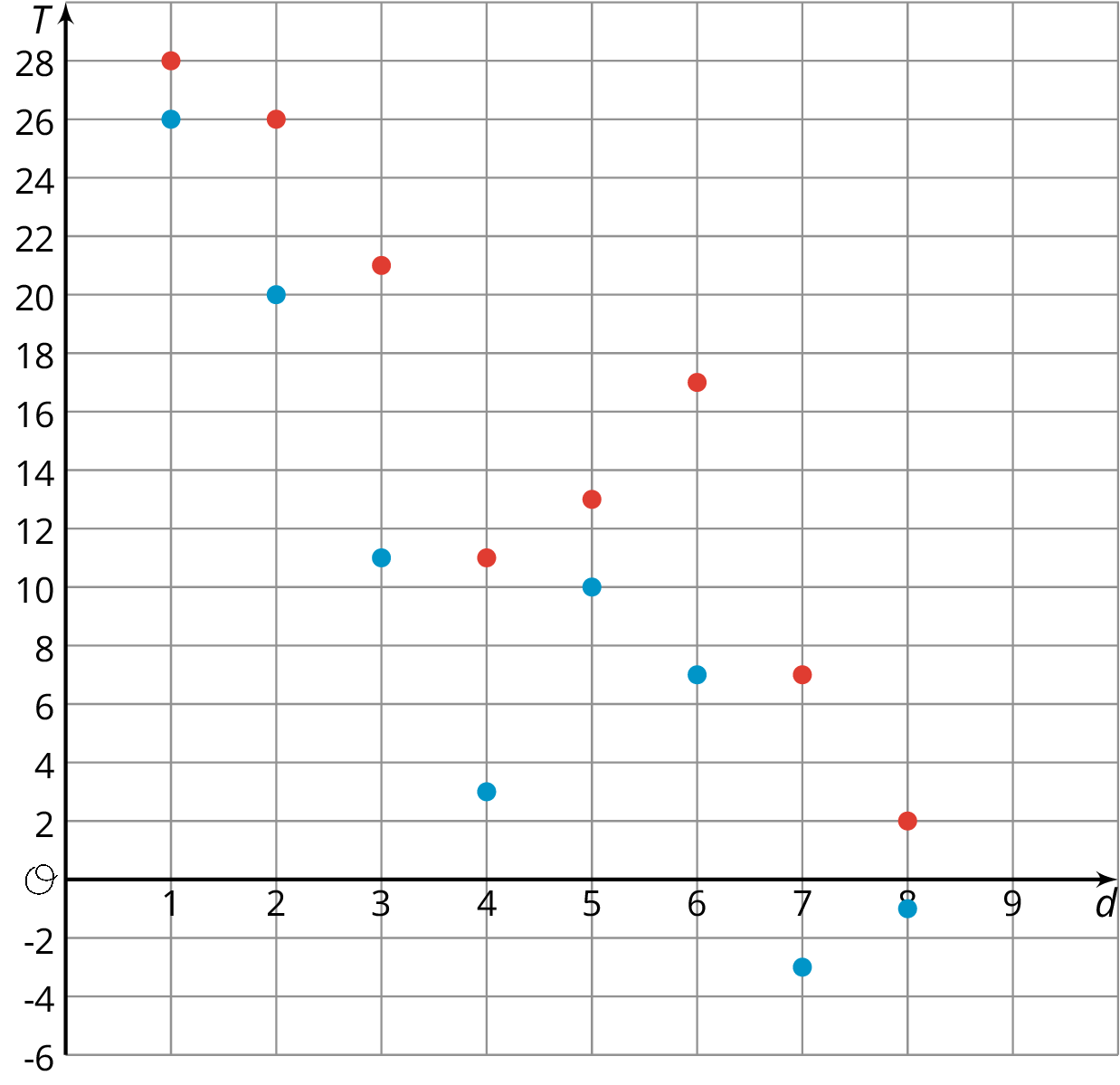

The coordinate plane shows the high and low temperatures in Nome, Alaska over a period of 8 days. The axis labeled \(T\) represents temperatures in degrees Fahrenheit. The axis labeled \(d\) represents the day.

Coordinate plane.
    1. What was the warmest high temperature?
    2. What was the coldest high temperature?
    3. Write an inequality to compare the warmest and coldest high temperatures.

    1. What was the coldest low temperature?
    2. What was the warmest low temperature?
    3. Write an inequality to compare the warmest and coldest low temperatures.

    1. On which day(s) did the largest difference between the high and low temperatures occur? Write down this difference.

    2. On which day(s) did the smallest difference between the high and low temperatures occur? Write down this difference.

Student Response

For access, consult one of our IM Certified Partners.

Student Facing

Are you ready for more?

To get from the point \((2,1)\) to \((\text-4,3)\) you can go two units up and six units to the left, for a total distance of eight units. This is called the “taxicab distance,” because a taxi driver would have to drive eight blocks to get between those two points on a map.

Coordinate plane, points at (negative 4 comma 3) and (2 comma 1). A segment runs horizontally from the first point until it is directly above the second point, and then a second segment runs down.
  1. Find as many points as you can that have a taxicab distance of eight units away from \((2,1)\). What shape do these points make?
  2. The point \((0,3)\) is 4 taxicab units away from \((\text{-}4,3)\) and 4 taxicab units away from \((2,1)\).
    1. Find as many other points as you can that are 4 taxicab units away from both \((\text{-}4,3)\) and \((2,1)\).
    2. Are there any points that are 3 taxicab units away from both points?

Student Response

For access, consult one of our IM Certified Partners.

Anticipated Misconceptions

Because the high temperature on day 7 was positive and the low temperature was negative, some students may not notice that the difference was 10 degrees on this day as well. Consider prompting them to use tracing paper to compare the temperature differences on days 6 and 7.

Activity Synthesis

This discussion should lead to two key takeaways. First, students share how they used inequalities to compare the temperatures. Second, students share strategies for finding a difference between two values on the coordinate plane.

Ask students to share their strategies for finding the vertical distance between points. Push them to explain how they took the scale of the vertical axis into account. Invite students to explain how they used the context to make sense of their answers. If any student wrote subtraction expressions to represent the differences, share this strategy last.

Listening, Speaking: MLR8 Discussion Supports. To support students in producing statements about details in the inequalities, provide sentence frames for students to use when they explain their reasoning to their peers, such as: “This inequality should/should not also be equal to because _____”, “A situation uses an equal sign when _____”, “I know that the inequality _____ is correct because _____.”
Design Principle(s): Support sense-making

Lesson Synthesis

Lesson Synthesis

In this lesson, students graphed temperature and account balance over time on coordinate axes and interpreted questions involving vertical distance. Consider asking some of the following questions:

  • “Sketch a graph of \((4, 450)\) and \((4,\text-47)\). Which of the situations we looked at today would make these points make the most sense? What would the \(x\)- and \(y\)-axes represent?” (The account balance over the course of several days makes most sense in this situation. Then \(x\) would represent the number of days and \(y\) would represent the account balance. A temperature of 450 degrees Celsius doesn’t make as much sense if we are talking about Earth.)
  • “Suppose two people open their own bank accounts on the same day. Graphing their account balances over several days, one person’s situation is represented by \((4,450)\) and the other person’s is represented by \((4,\text-47)\). What does this mean in the situation? How do their account balances compare?” (This means the first person has \$450 on day 4 and the other person owes \$47 by that same day. The first person’s balance is \$497 higher than the second person’s.)
  • “The high temperature on day 6 of a 10 day period is 30 degrees Celsius and the low temperature on that same day is 12 degrees Celsius. Sketch a graph, label the axes, and plot the high and low temperatures on day 6. How much warmer is the high temperature than the low temperature?”

Invite students to display their sketches for all to see. Highlight the vertical distance between points and compare students’ strategies for finding that distance.

12.4: Cool-down - Time and Temperature (5 minutes)

Cool-Down

For access, consult one of our IM Certified Partners.

Student Lesson Summary

Student Facing

Points on the coordinate plane can give us information about a context or a situation. One of those contexts is about money.

To open a bank account, we have to put money into the account. The account balance is the amount of money in the account at any given time. If we put in \$350 when opening the account, then the account balance will be 350.

Sometimes we may have no money in the account and need to borrow money from the bank. In that situation, the account balance would have a negative value. If we borrow \$200, then the account balance is -200.

A coordinate grid can be used to display both the balance and the day or time for any balance. This allows to see how the balance changes over time or to compare the balances of different days.

Similarly, if we plot on the coordinate plane data such as temperature over time, we can see how temperature changes over time or compare temperatures of different times.
