Lesson 7

A Proof of the Pythagorean Theorem

Problem 1

  1. Find the lengths of the unlabeled sides.
    A right triangle with a horizontal side on the top and a vertical side on the left. The top side is labeled 6 and the side on the left is labeled 2.
    A right triangle with a horizontal side on top and a vertical side on the left. The top side is labeled 8 and the left side is labeled 6.
  2. One segment is \(n\) units long and the other is \(p\) units long. Find the value of \(n\) and \(p\). (Each small grid square is 1 square unit.)
    A line segment labeled “n” on a square grid.

    A line segment labeled “p” on a square grid.

Solution

For access, consult one of our IM Certified Partners.

Problem 2

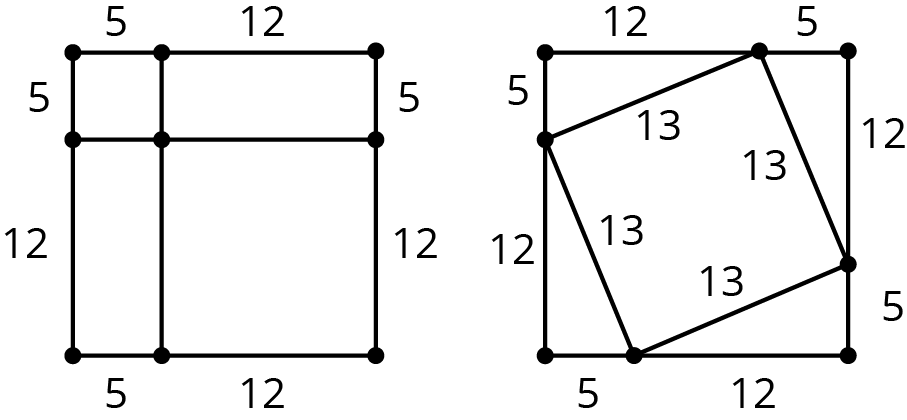

Use the areas of the two identical squares to explain why \(5^2+12^2=13^2\) without doing any calculations.

2 decomposed squares.



Solution

For access, consult one of our IM Certified Partners.

Problem 3

Each number is between which two consecutive integers?

  1. \(\sqrt{10}\)

  2. \(\sqrt{54}\)

  3. \(\sqrt{18}\)

  4. \(\sqrt{99}\)

  5. \(\sqrt{41}\)

Solution

For access, consult one of our IM Certified Partners.

(From Unit 8, Lesson 5.)

Problem 4

  1. Give an example of a rational number, and explain how you know it is rational.

  2. Give three examples of irrational numbers.

Solution

For access, consult one of our IM Certified Partners.

(From Unit 8, Lesson 3.)

Problem 5

Write each expression as a single power of 10.

  1. \(10^5 \boldcdot 10^0\)
  2. \(\frac{10^9}{10^0}\)

Solution

For access, consult one of our IM Certified Partners.

(From Unit 7, Lesson 4.)

Problem 6

Andre is ordering ribbon to make decorations for a school event. He needs a total of exactly 50.25 meters of blue and green ribbon. Andre needs 50% more blue ribbon than green ribbon for the basic design, plus an extra 6.5 meters of blue ribbon for accents. How much of each color of ribbon does Andre need to order?

Solution

For access, consult one of our IM Certified Partners.

(From Unit 4, Lesson 15.)
