Lesson 7

A Proof of the Pythagorean Theorem

7.1: Notice and Wonder: A Square and Four Triangles (5 minutes)

Warm-up

The purpose of this warm-up is to give students a chance to study a diagram that they will need to understand for an upcoming proof of the Pythagorean Theorem. The construction depends on the triangles being right triangles, so students get to contrast it with a similarly constructed figure with non-right triangles. In that case, the composite figure is not a square.

Launch

Arrange students in groups of 2. Display the diagram for all to see. Give students 1 minute of quiet work time to identify at least one thing they notice and at least one thing they wonder about the diagram. Ask students to give a signal when they have noticed or wondered about something. When the minute is up, give students 1 minute to discuss their observations and questions with their partner. Follow with a whole-class discussion.

Student Facing

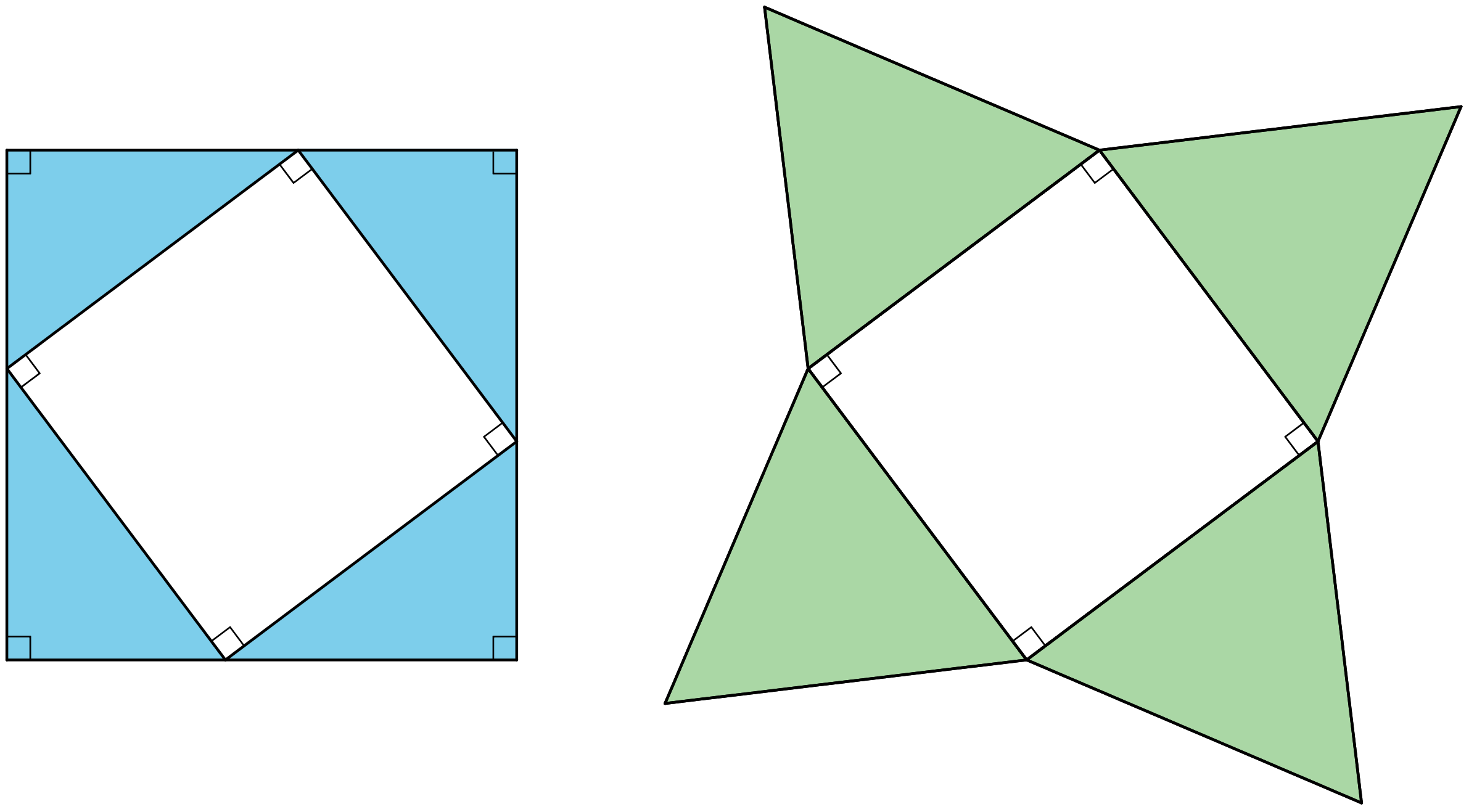

two figures both made up of a square and four triangles.

What do you notice? What do you wonder?

Student Response

For access, consult one of our IM Certified Partners.

Activity Synthesis

Ask students to share the things they noticed and wondered. Record and display their responses for all to see. If possible, record the relevant reasoning on or near the image. After each response, ask the class whether they agree or disagree and to explain alternative ways of thinking, referring back to the images each time.

Tell students that when you take a square and put a congruent right triangle on each side as shown on the left, they form a larger square (they will be able to prove this in high school). But it doesn’t work if the triangles are not right triangles. We will use this construction in the next activity.

7.2: Adding Up Areas (15 minutes)

Activity

The purpose of this activity is for students to work through an area-based algebraic proof of the Pythagorean Theorem (MP1). One of the figures used in this particular proof, G, was first encountered by students at the start of the year during a unit on transformations and again in a recent lesson where they reasoned about finding the area of the triangles.

While there are many proofs of the Pythagorean Theorem similar to the one in this activity, they often rely on \((a+b)^2=a^2+2ab+b^2\), which is material beyond the scope of grade 8. For this proof, students reason about the areas of the two squares with the same dimensions. Each square is divided into smaller regions in different ways and it is by using the equality of the total area of each square that they uncover the Pythagorean Theorem. The extension uses this same division to solve a challenging area composition and decomposition problem.

Launch

Begin by explaining to students how the two figures are constructed. Each figure starts with a square with side length \(a+b\).

  • Figure F partitions the square into two squares and two rectangles.
  • Figure G takes a right triangle with legs \(a\) and \(b\) and puts one identical copy of it in each corner of the square. The copies touch each other because the short leg of one and the long leg of the one next to it add up to \(a+b\), so they fit exactly into a side. So they form a quadrilateral in the middle. We know the quadrilateral is a square because
    • The corners must be 90 degree angles:
      • The two acute angles in each triangle must sum to 90 degrees because the sum of the angles in a triangle is 180 degrees, and the third angle is 90 degrees.
      • The two smaller angles along with one of the corners of the quadrilateral form a straight angle with a measure of 180 degrees, that means that the angle at the corner must also be 90 degrees.
    • All four sides are the same length: they all correspond to a hypotenuse of one of the congruent right triangles.

Arrange students in groups of 2. Give 3 minutes of quiet work time for the first two problems. Ask partners to share their work and come to an agreement on the area of each figure and region before moving on to the last problem. Follow with a whole-class discussion.

Representation: Internalize Comprehension. Differentiate the degree of difficulty or complexity by beginning with an example with more accessible values. For example, consider demonstrating how to calculate the area of a figure made of various shapes using numbers instead of variables for the side lengths. Highlight connections between this simpler figure and the one used in the activity by highlighting corresponding side lengths.
Supports accessibility for: Conceptual processing
Conversing, Writing: MLR5 Co-Craft Questions. Before revealing the questions in this activity, display the image of the squares with a side length of \(a + b\) and invite students to write possible mathematical questions about the diagram. Ask students to compare the questions they generated with a partner before sharing questions with the whole class. Listen for and amplify questions about the total area for each square or the area of each of the nine smaller regions of the squares. If no student asks about the area of each smaller region, ask students to adapt a question to align with the learning goals of this lesson. Then reveal and ask students to work on the actual questions of the task. This routine will help develop students’ meta-awareness of language as they generate questions about area in preparation for the proof of the Pythagorean Theorem.
Design Principle(s): Maximize meta-awareness

Student Facing

Both figures shown here are squares with a side length of \(a + b\). Notice that the first figure is divided into two squares and two rectangles. The second figure is divided into a square and four right triangles with legs of lengths \(a\) and \(b\). Let’s call the hypotenuse of these triangles \(c\).

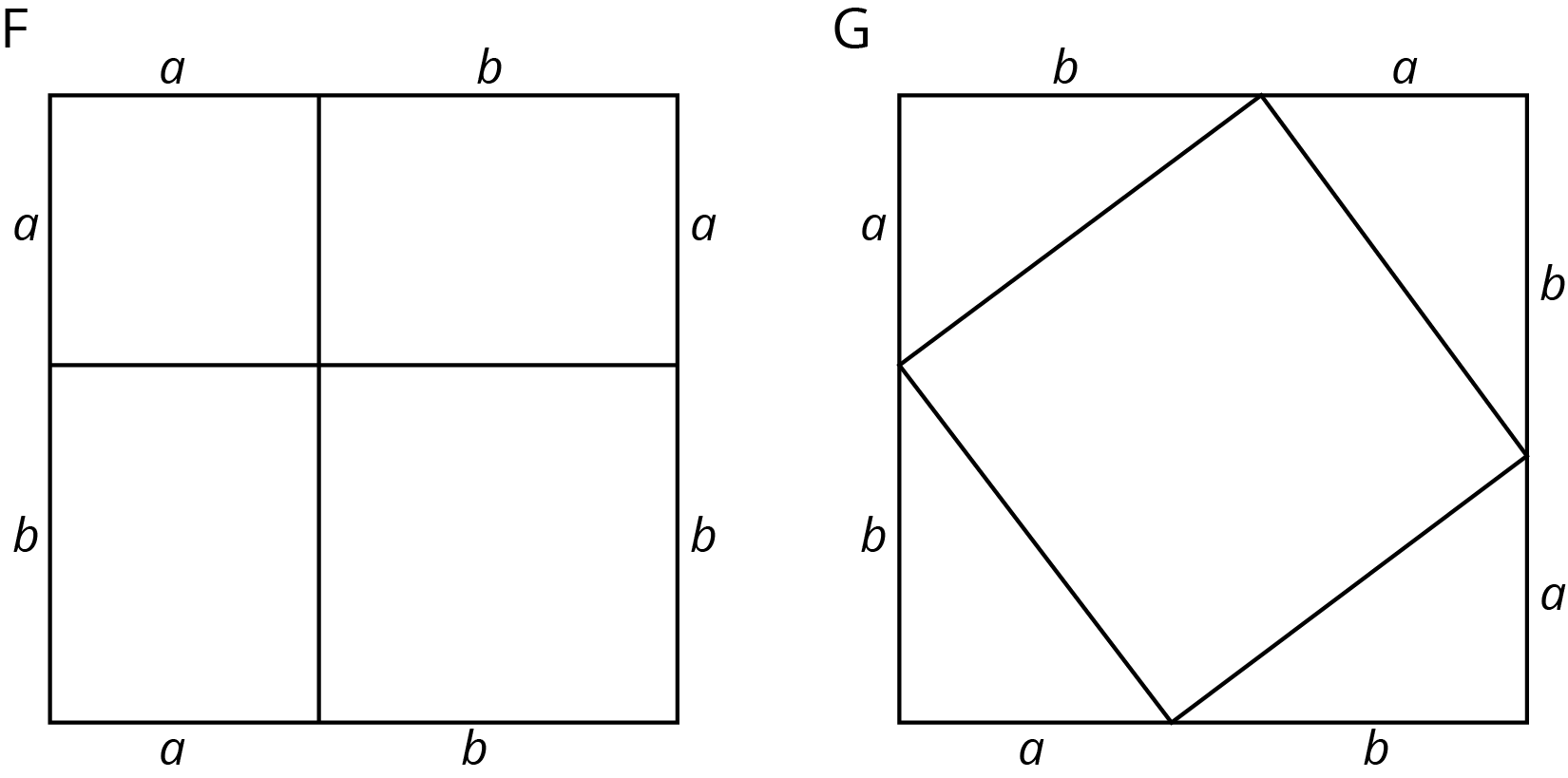

Two squares of the same area are labeled “F” and “G”.
  1. What is the total area of each figure?
  2. Find the area of each of the 9 smaller regions shown the figures and label them.
  3. Add up the area of the four regions in Figure F and set this expression equal to the sum of the areas of the five regions in Figure G. If you rewrite this equation using as few terms as possible, what do you have?

Student Response

For access, consult one of our IM Certified Partners.

Student Facing

Are you ready for more?

Take a 3-4-5 right triangle, add on the squares of the side lengths, and form a hexagon by connecting vertices of the squares as in the image. What is the area of this hexagon?

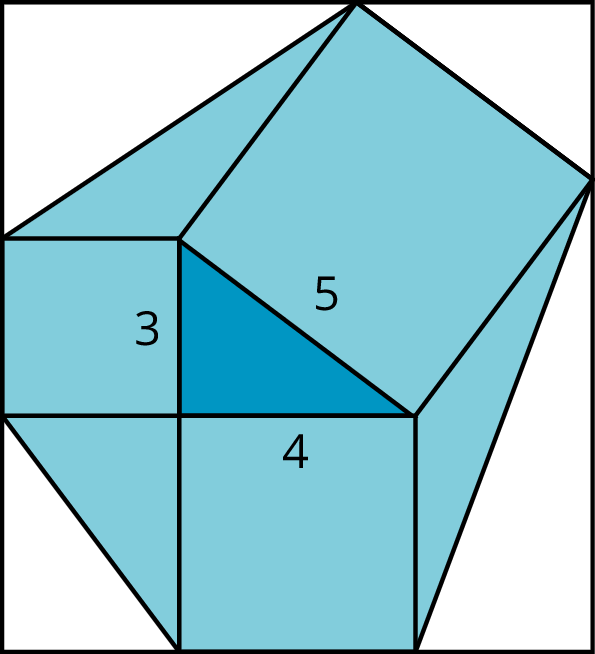

Dark blue Triangle with side lengths of 3,4,5. Light blue Squares off of each side. Light blue triangles in spaces between square sides. All inside white square



Student Response

For access, consult one of our IM Certified Partners.

Activity Synthesis

Begin the discussion by selecting 2–3 groups to share their work and conclusion for the third question. Make sure the last group presenting concludes with \(a^2+b^2=c^2\) or something close enough that the class can get there with a little prompting. For example, if groups are stuck with the equation looking something like \(a^2+ab+b^2+ab=\frac12ab+\frac12ab+\frac12ab+\frac12ab+c^2\), encourage them to try and combine like terms and remove any quantities both sides have in common on each side.

After groups have shared, ask students how they see the regions in each figure matching the regions in the other figure. For example, since the two small squares in Figure F match the one large square in Figure G, how do the rectangles and triangles match? After some quiet think time, select 1–2 students to explain how they see it. (The area of the two rectangles is the same as the area of two of the triangles since, if I put two of the triangles together, I get a rectangle that is \(a\) wide and \(b\) long.) Show students an image with the diagonals added in, such as the one shown here, to help make the connection between the two figures clearer.

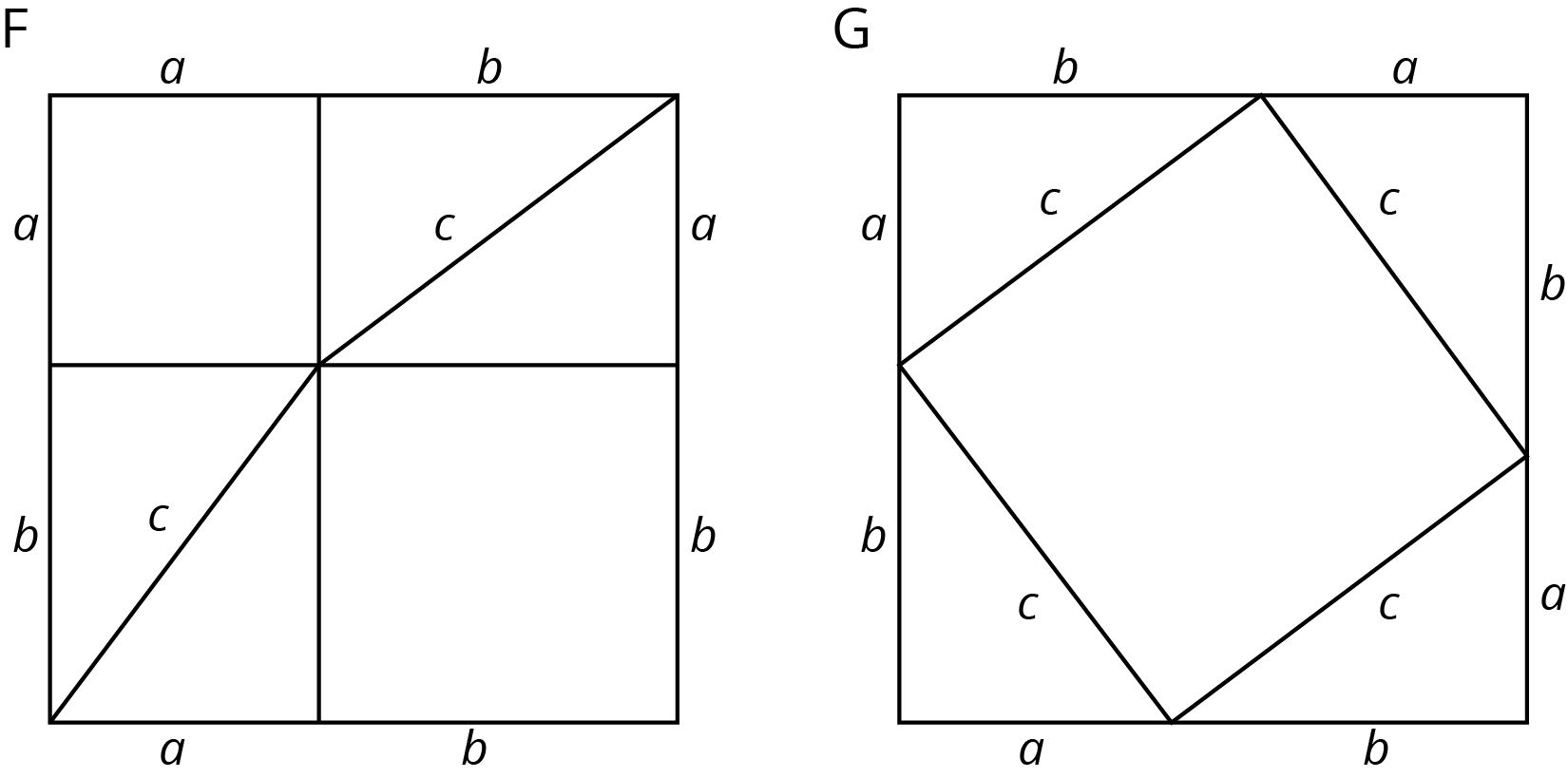

2 squares with interiors decomposed

Note how these figures can be made for any right triangle with legs \(a\) and \(b\) and hypotenuse \(c\).

7.3: Let’s Take it for a Spin (10 minutes)

Activity

Before this lesson, students could only find the length of a segment between the intersection of grid lines in a square grid by computing the area of a related square. The Pythagorean Theorem makes it possible to find the length of any segment that is a side of a right triangle.

Launch

Arrange students in groups of 2. Give students 3 minutes of quiet work time followed by partner and then whole-class discussions.

Engagement: Develop Effort and Persistence. Encourage and support opportunities for peer interactions. Prior to the whole-class discussion, invite students to share their work with a partner, detailing the steps they took to solve for the missing side length. Display sentence frames to support student conversation such as: “First, I _____ because . . .”, “Then I . . .”, and “Finally, in order to solve, I _____ because . . . .”
Supports accessibility for: Language; Social-emotional skills

Student Facing

Find the unknown side lengths in these right triangles.

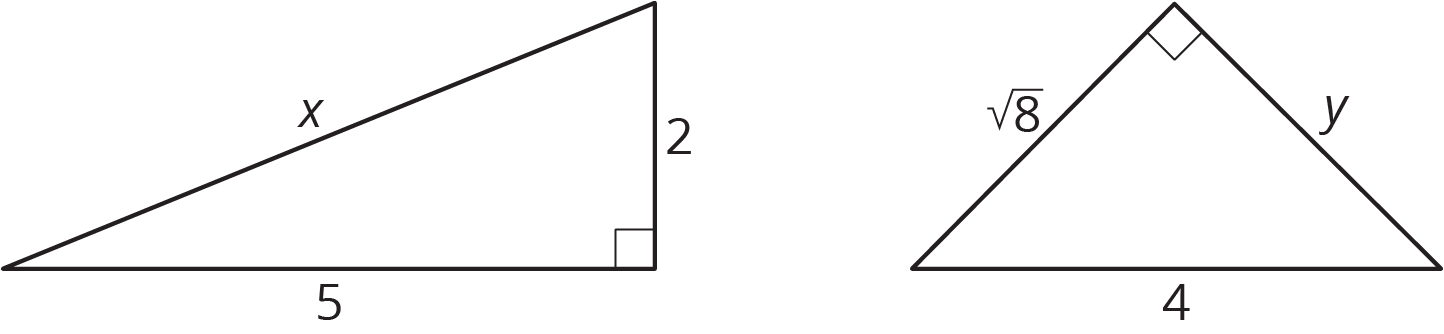

2 Right triangles. On left, legs = 2, 5. hypotenuse = x. On right, legs = square root 8, y. hypotenuse = 4.



Student Response

For access, consult one of our IM Certified Partners.

Activity Synthesis

Invite a few students to share their reasoning with the class for each unknown side length. As students share, record their steps for all to see, showing clearly the initial setup with \(a^2+b^2=c^2\).

Reading, Writing, Speaking: MLR3 Clarify, Critique, Correct. Before students share their methods for finding the side length of a right triangle, present an incorrect solution based on a common error you observe in the class. For example, “I know that \(a = \sqrt{8}\), \(b = 4\), and \(c = y\), so when I use the Pythagorean Theorem, I get the equation \((\sqrt{8})^2 + 4^2 = y^2\). This equation simplifies to \(8 + 16 = y^2\). When I solve for \(y\), I get \(y = \sqrt{24}\).” Ask students to identify the error, critique the reasoning, and revise the original statement. As students discuss in partners, listen for students who clarify the meaning of each term in the equation \(a^2 + b^2 = c^2\). In the Pythagorean Theorem, \(a^2\) and \(b^2\) represent the square of the legs of the right triangle, whereas \(c^2\) represents the square of the hypotenuse. This routine will engage students in meta-awareness as they critique and correct a common error when applying the Pythagorean Theorem.
Design Principles(s): Cultivate conversation; Maximize meta-awareness

7.4: A Transformational Proof (15 minutes)

Optional activity

In this activity, students explore a transformations-based proof of the Pythagorean Theorem, calling back to their work with transformations earlier in the year. Since this proof is not one students are expected to derive on their own, the focus of this activity is on understanding the steps and why they are possible from a transformations perspective.

Listen for students using precise language when describing their transformations.

The digital activity demonstrates the same proof in a slightly different way. Students have the opportunity to explore three different right triangles in the applets.

Launch

Tell students that today we are going to think about how to use transformations to show the relationship between the sides of right triangles. Briefly review the language of rigid transformations (translation, rotation, reflection) with students using the 5 pre-cut pieces from the Making Squares blackline master from the first lesson in this unit.

Arrange students in groups of 2. Before students begin, remind them that if a problem asks them to explain, then they are expected to use precise language when describing the transformation of the shapes. Distribute pre-cut shapes from the Making Squares blackline master and the A Transformational Proof blackline master to each group. Leave 3–4 minutes for a whole-class discussion.

For students using the digital activity, there are no paper copies needed. Have students work in groups of two with the digital applet to explore the relationship between the squares and the Pythagorean Theorem.

Action and Expression: Internalize Executive Functions. Chunk this task into more manageable parts to support students who benefit from support with organizational skills in problem solving. For example, present one question at a time and monitor students to ensure they are making progress throughout the activity.
Supports accessibility for: Organization; Attention
Conversing, Reading: MLR2 Collect and Display. As students work in pairs on the task, circulate and listen as they discuss their observations about the relationship between the squares and the Pythagorean Theorem. Write down the words and phrases students use on a visual display. As students review the language collected in the visual display, encourage students to clarify the meaning of a word or phrase. For example, a phrase such as: “The small squares add up to the big square.” can be restated as “The sum of the areas of the small squares, \(a^2 + b^2\), is equal to the area of the large square, \(c^2\).”. Encourage students to refer back to the visual display during whole-class discussions throughout the lesson and unit. This routine will provide feedback to students in a way that supports sense-making while simultaneously increasing meta-awareness of language.
Design Principle(s): Support sense-making; Maximize meta-awareness

Student Facing

Use the applets to explore the relationship between areas.

  • Consider Squares \(A\) and \(B\).

  • Check the box to show the pieces.

  • Check the box to turn \(C.\)

  • Arrange the five pieces to fit inside Square \(C\).

  • Check the box to see the right triangle.

  • Arrange the figures so the squares are adjacent to the sides of the triangle.

  1. If the right triangle has legs \(a\) and \(b\) and hypotenuse \(c\), what have you just demonstrated to be true?


  2. Try it again with different squares. Estimate the areas of the new Squares, \(A\), \(B\), and \(C\) and explain what you observe.


  3. Estimate the areas of these new Squares, \(A\), \(B\), and \(C\), and then explain what you observe as you complete the activity.


  4. What do you think we may be able to conclude?

Student Response

For access, consult one of our IM Certified Partners.

Launch

Tell students that today we are going to think about how to use transformations to show the relationship between the sides of right triangles. Briefly review the language of rigid transformations (translation, rotation, reflection) with students using the 5 pre-cut pieces from the Making Squares blackline master from the first lesson in this unit.

Arrange students in groups of 2. Before students begin, remind them that if a problem asks them to explain, then they are expected to use precise language when describing the transformation of the shapes. Distribute pre-cut shapes from the Making Squares blackline master and the A Transformational Proof blackline master to each group. Leave 3–4 minutes for a whole-class discussion.

For students using the digital activity, there are no paper copies needed. Have students work in groups of two with the digital applet to explore the relationship between the squares and the Pythagorean Theorem.

Action and Expression: Internalize Executive Functions. Chunk this task into more manageable parts to support students who benefit from support with organizational skills in problem solving. For example, present one question at a time and monitor students to ensure they are making progress throughout the activity.
Supports accessibility for: Organization; Attention
Conversing, Reading: MLR2 Collect and Display. As students work in pairs on the task, circulate and listen as they discuss their observations about the relationship between the squares and the Pythagorean Theorem. Write down the words and phrases students use on a visual display. As students review the language collected in the visual display, encourage students to clarify the meaning of a word or phrase. For example, a phrase such as: “The small squares add up to the big square.” can be restated as “The sum of the areas of the small squares, \(a^2 + b^2\), is equal to the area of the large square, \(c^2\).”. Encourage students to refer back to the visual display during whole-class discussions throughout the lesson and unit. This routine will provide feedback to students in a way that supports sense-making while simultaneously increasing meta-awareness of language.
Design Principle(s): Support sense-making; Maximize meta-awareness

Student Facing

Your teacher will give your group a sheet with 4 figures and a set of 5 cut out shapes labeled D, E, F, G, and H.

  1. Arrange the 5 cut out shapes to fit inside Figure 1. Check to see that the pieces also fit in the two smaller squares in Figure 4.

  2. Explain how you can transform the pieces arranged in Figure 1 to make an exact copy of Figure 2.

  3. Explain how you can transform the pieces arranged in Figure 2 to make an exact copy of Figure 3.

  4. Check to see that Figure 3 is congruent to the large square in Figure 4.

  5. If the right triangle in Figure 4 has legs \(a\) and \(b\) and hypotenuse \(c\), what have you just demonstrated to be true?

Student Response

For access, consult one of our IM Certified Partners.

Activity Synthesis

Select previously identified groups to share their explanations for each transformation and their conclusion to the last problem. If possible, have them show each transformation for all students to see.

An important takeaway for this activity is that this proof can be generalized to any right triangle. To help students see why, ask them to consider how the diagonal lines in Figure 1 were created. Give 1–2 minutes for partners to discuss and then select 2–3 groups to share their ideas. Hopefully, at least one group noticed that the diagonals create two congruent right triangles with sides of length \(a\), \(b\), and \(c\)—the same as the original right triangle. This means that this process could be duplicated to show that for any right triangle with legs \(a\) and \(b\) and hypotenuse \(c\), \(a^2+b^2=c^2\) is true.

Lesson Synthesis

Lesson Synthesis

Review the proof of the Pythagorean Theorem.

7.5: Cool-down - When is it True? (5 minutes)

Cool-Down

For access, consult one of our IM Certified Partners.

Student Lesson Summary

Student Facing

The figures shown here can be used to see why the Pythagorean Theorem is true. Both large squares have the same area, but they are broken up in different ways. (Can you see where the triangles in Square G are located in Square F? What does that mean about the smaller squares in F and H?) When the sum of the four areas in Square F are set equal to the sum of the 5 areas in Square G, the result is \(a^2 + b^2 = c^2\), where \(c\) is the hypotenuse of the triangles in Square G and also the side length of the square in the middle. Give it a try!

Two squares of the same area are labeled “F” and “G”.

This is true for any right triangle. If the legs are \(a\) and \(b\) and the hypotenuse is \(c\), then \(a^2+b^2=c^2\). This property can be used any time we can make a right triangle. For example, to find the length of this line segment:

A line segment slanted downward and to the right on a square grid. The bottom endpoint is 7 units down and 24 units to the right from the top endpoint.

The grid can be used to create a right triangle, where the line segment is the hypotenuse and the legs measure 24 units and 7 units:

A right triangle on a square grid. The horizontal side has a length of 24 and the vertical side has a length of 7. The hypotenuse is labeled c.

Since this is a right triangle, \(24^2+7^2=c^2\). The solution to this equation (and the length of the line segment) is \(c=25\).
