Lesson 11

Finding Distances in the Coordinate Plane

View Student Lesson

Problem 1

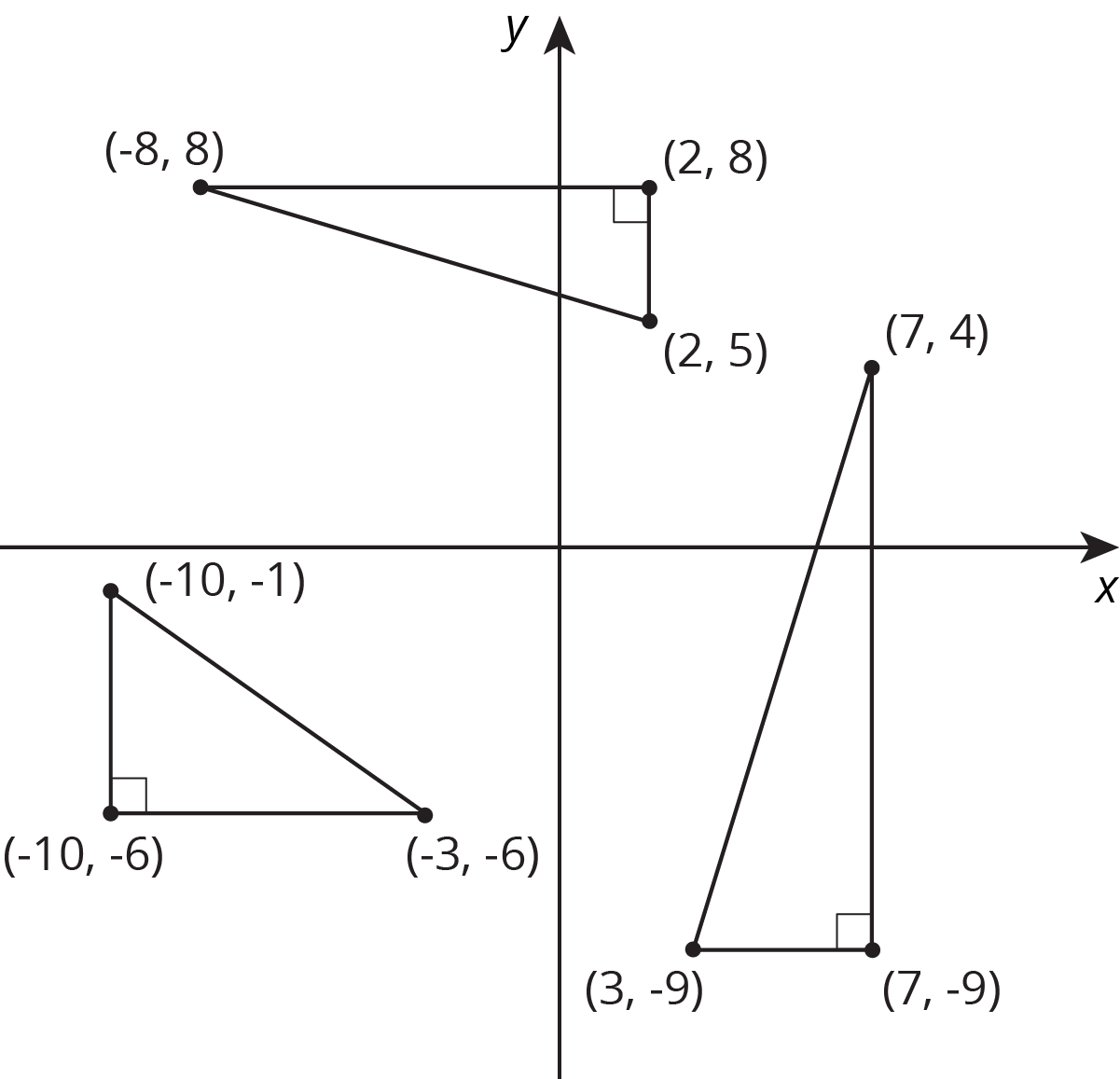

The right triangles are drawn in the coordinate plane, and the coordinates of their vertices are labeled. For each right triangle, label each leg with its length.

3 right triangles on a xy plane.



Solution

For access, consult one of our IM Certified Partners.

Problem 2

Find the distance between each pair of points. If you get stuck, try plotting the points on graph paper.

  1. \(M=(0,\text-11)\) and \(P=(0,2)\)
  2. \(A=(0,0)\) and \(B=(\text-3, \text-4)\)

  3. \(C=(8,0)\) and \(D=(0, \text-6)\)

Solution

For access, consult one of our IM Certified Partners.

Problem 3

  1. Find an object that contains a right angle. This can be something in nature or something that was made by humans or machines.
  2. Measure the two sides that make the right angle. Then measure the distance from the end of one side to the end of the other.
  3. Draw a diagram of the object, including the measurements.
  4. Use the Pythagorean Theorem to show that your object really does have a right angle.

Solution

For access, consult one of our IM Certified Partners.

(From Unit 8, Lesson 9.)

Problem 4

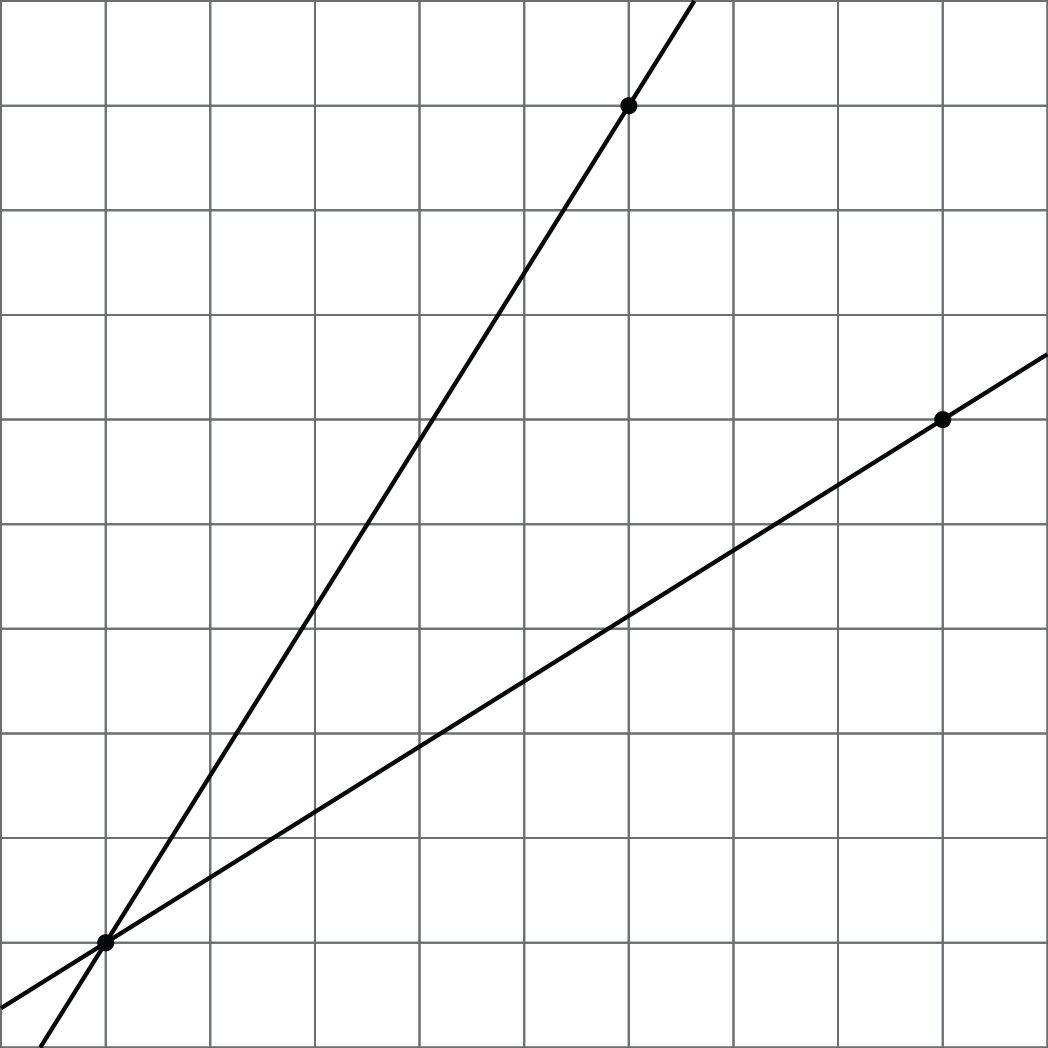

Which line has a slope of 0.625, and which line has a slope of 1.6? Explain why the slopes of these lines are 0.625 and 1.6.

Two lines on a grid that intersect at a point. 2nd point on Top line is 8 up and 5 right from 1st point. 2nd point on bottom line is 5 up and 8 right from 1st point.



Solution

For access, consult one of our IM Certified Partners.

(From Unit 2, Lesson 10.)

Problem 5

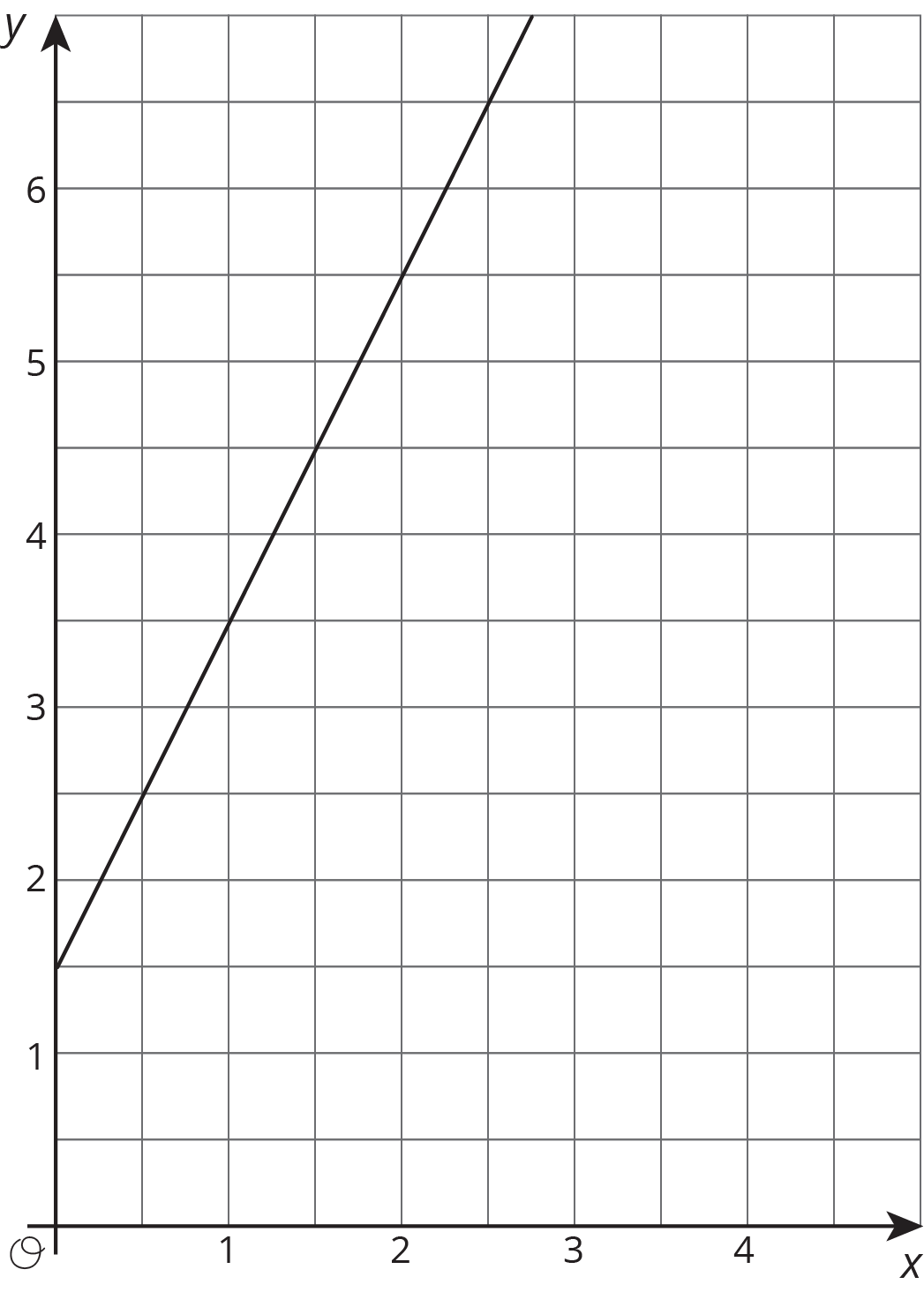

Write an equation for the graph.

Horizontal axis, 0 to 4, 1’s. Vertical axis, 0 to 6, 1’s. Line with slope=2, y intercept =1.5.

Solution

For access, consult one of our IM Certified Partners.

(From Unit 3, Lesson 7.)
