Lesson 2

Graphs of Proportional Relationships

Let's think about scale.

2.1: An Unknown Situation

Here is a graph that could represent a variety of different situations.

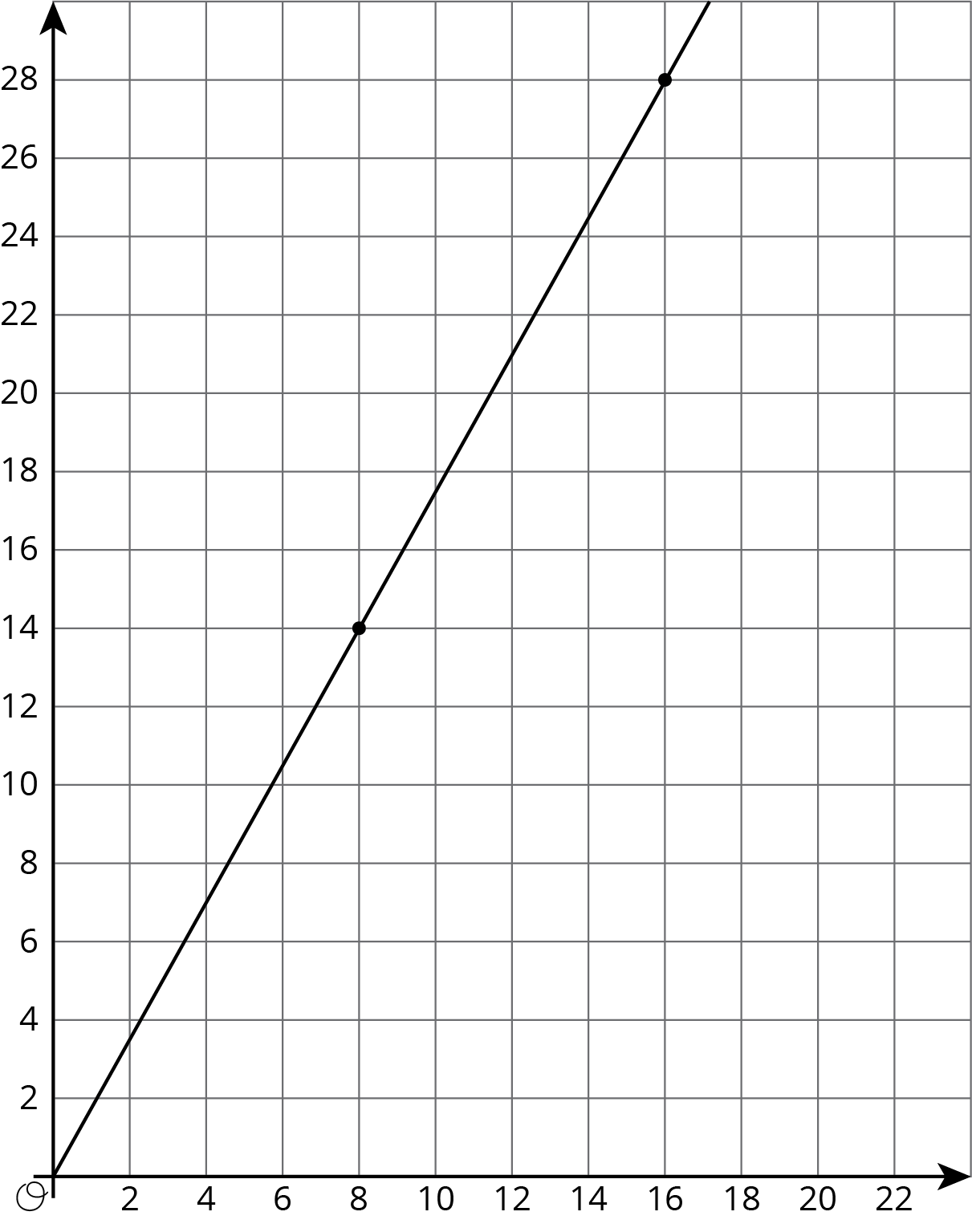

graph. horizontal axis, scale 0 to 22, by 2's. vertical axis, scale 0 to 28, by 2's. line passing through origin and 8 comma 14.
  1. Write an equation for the graph.
  2. Sketch a new graph of this relationship.

    graph, horizontal axis, scale 0 to 120, by 20's. vertical axis, 0 to 210, by 35's.

2.2: Card Sort: Proportional Relationships

Your teacher will give you 12 graphs of proportional relationships.

  1. Sort the graphs into groups based on what proportional relationship they represent.
  2. Write an equation for each different proportional relationship you find.

2.3: Different Scales

Two large water tanks are filling with water. Tank A is not filled at a constant rate, and the relationship between its volume of water and time is graphed on each set of axes. Tank B is filled at a constant rate of \(\frac12\) liters per minute. The relationship between its volume of water and time can be described by the equation \(v=\frac12t\), where \(t\) is the time in minutes and \(v\) is the total volume in liters of water in the tank.

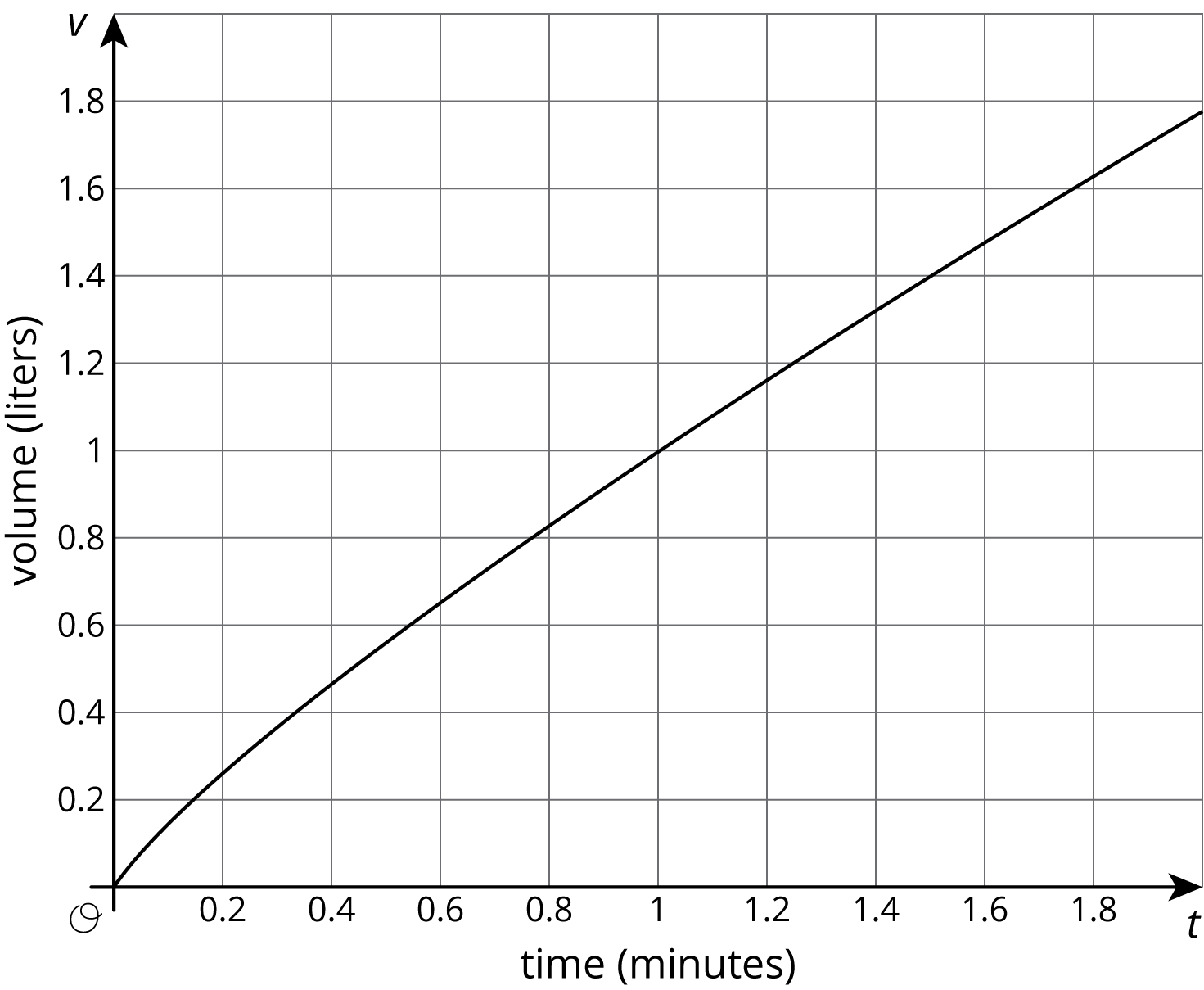

graph, horizontal axis, time in minutes, scale 0 to 1 and 8 tenths, by 2 tenth's. vertical axis, volume in liters, 0 to 1 and 8 tenths, by 2 tenth's.

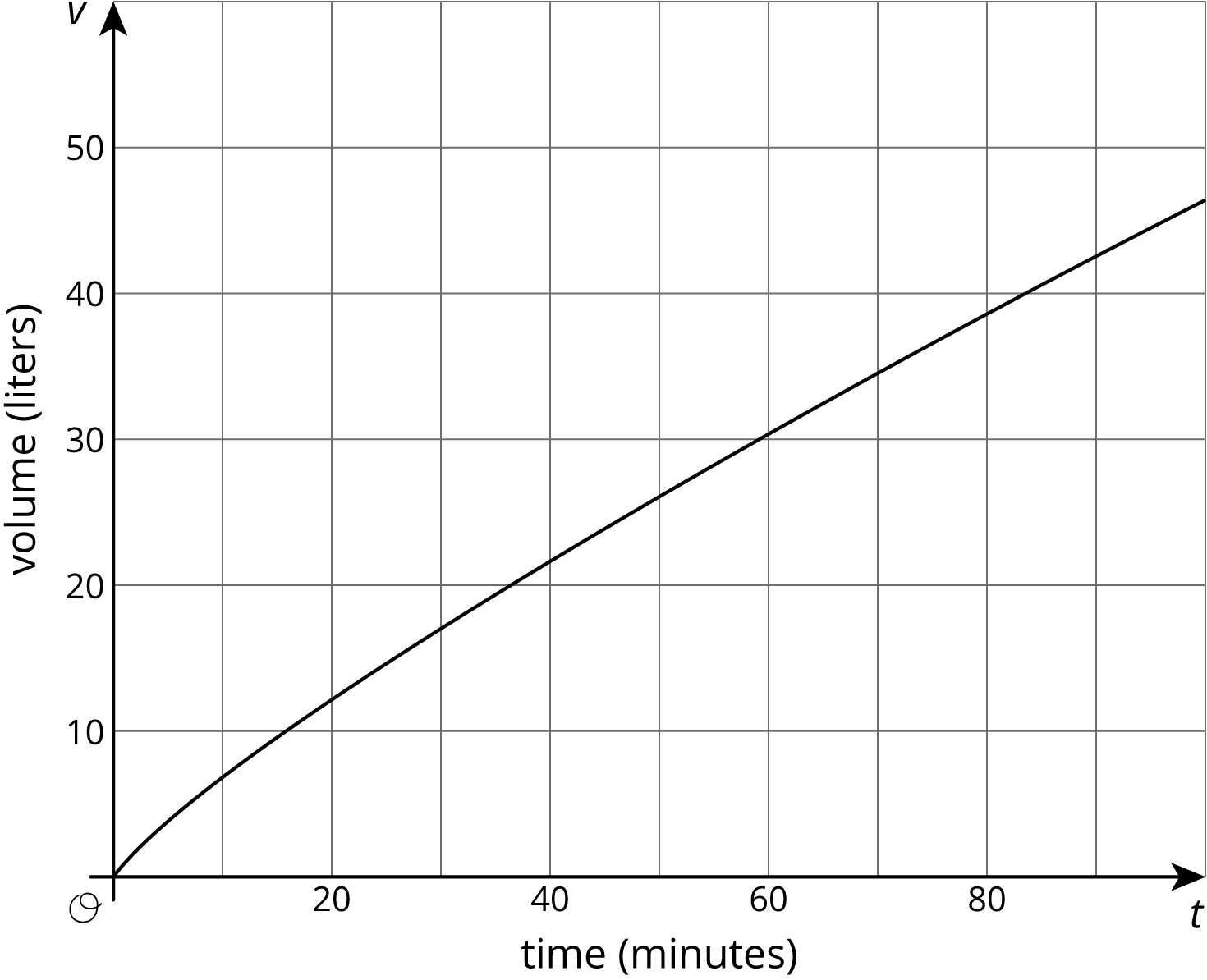

graph, horizontal axis, time in minutes, scale 0 to 80, by 20's. vertical axis, volume in liters, 0 to 50, by 10's.
  1. Sketch and label a graph of the relationship between the volume of water \(v\) and time \(t\) for Tank B on each of the axes.
  2. Answer the following questions and say which graph you used to find your answer.

    1. After 30 seconds, which tank has the most water?
    2. At approximately what times do both tanks have the same amount of water?
    3. At approximately what times do both tanks contain 1 liter of water? 20 liters?


A giant tortoise travels at 0.17 miles per hour and an arctic hare travels at 37 miles per hour.

  1. Draw separate graphs that show the relationship between time elapsed, in hours, and distance traveled, in miles, for both the tortoise and the hare.

  2. Would it be helpful to try to put both graphs on the same pair of axes? Why or why not?

  3. The tortoise and the hare start out together and after half an hour the hare stops to take a rest. How long does it take the tortoise to catch up?


Summary

The scales we choose when graphing a relationship often depend on what information we want to know. For example, say two water tanks are filled at different constant rates. The relationship between time in minutes \(t\) and volume in liters \(v\) of tank A is given by \(v=2.2t\).

For tank B the relationship is \(v=2.75t\)

These equations tell us that tank A is being filled at a constant rate of 2.2 liters per minute and tank B is being filled at a constant rate of 2.75 liters per minute.

If we want to use graphs to see at what times the two tanks will have 110 liters of water, then using an axis scale from 0 to 10, as shown here, isn't very helpful.

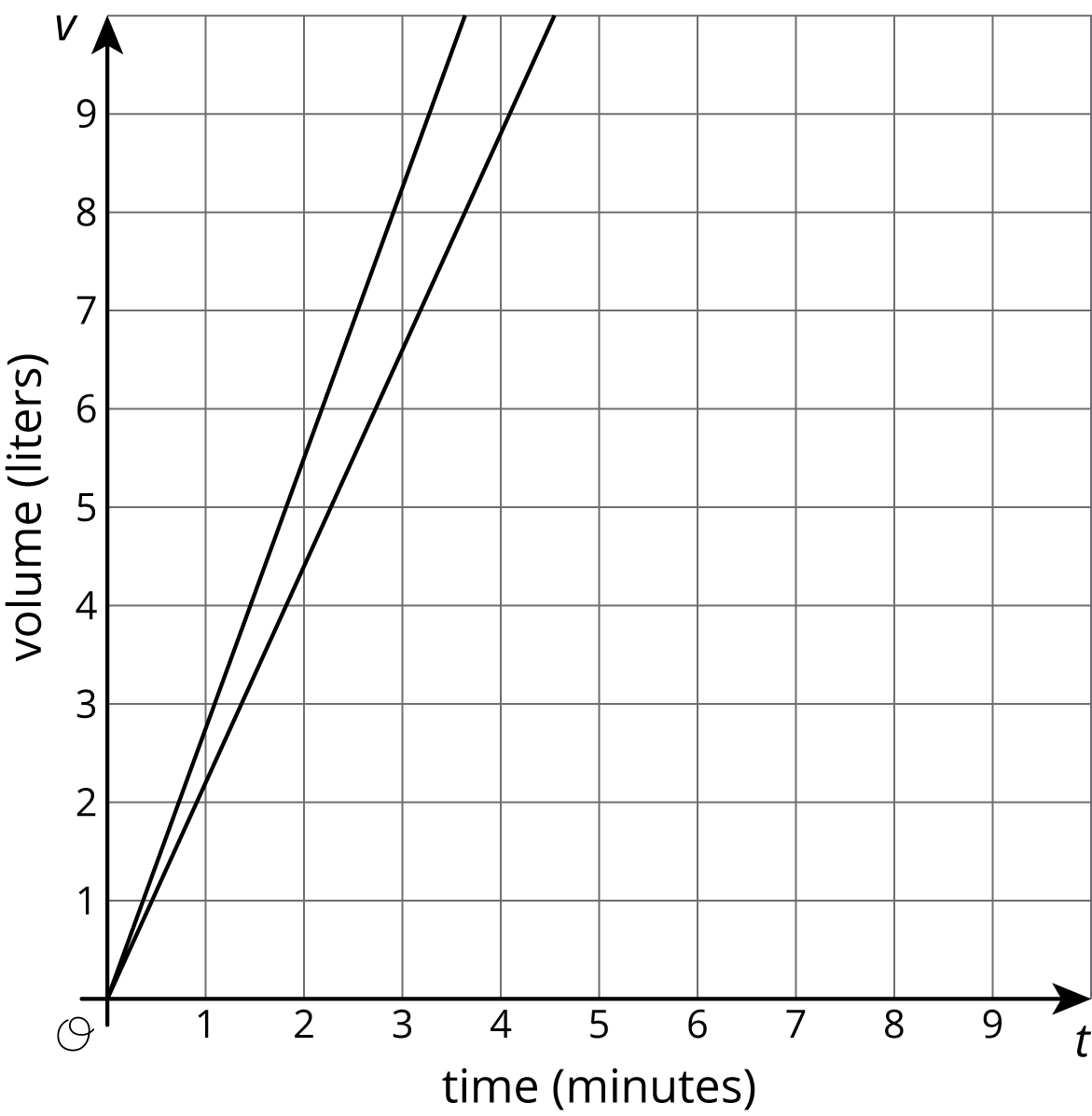

graph, horizontal axis, time in minutes, scale 0 to 9, by 1's. vertical axis, volume in liters, 0 to 9, by 1's.

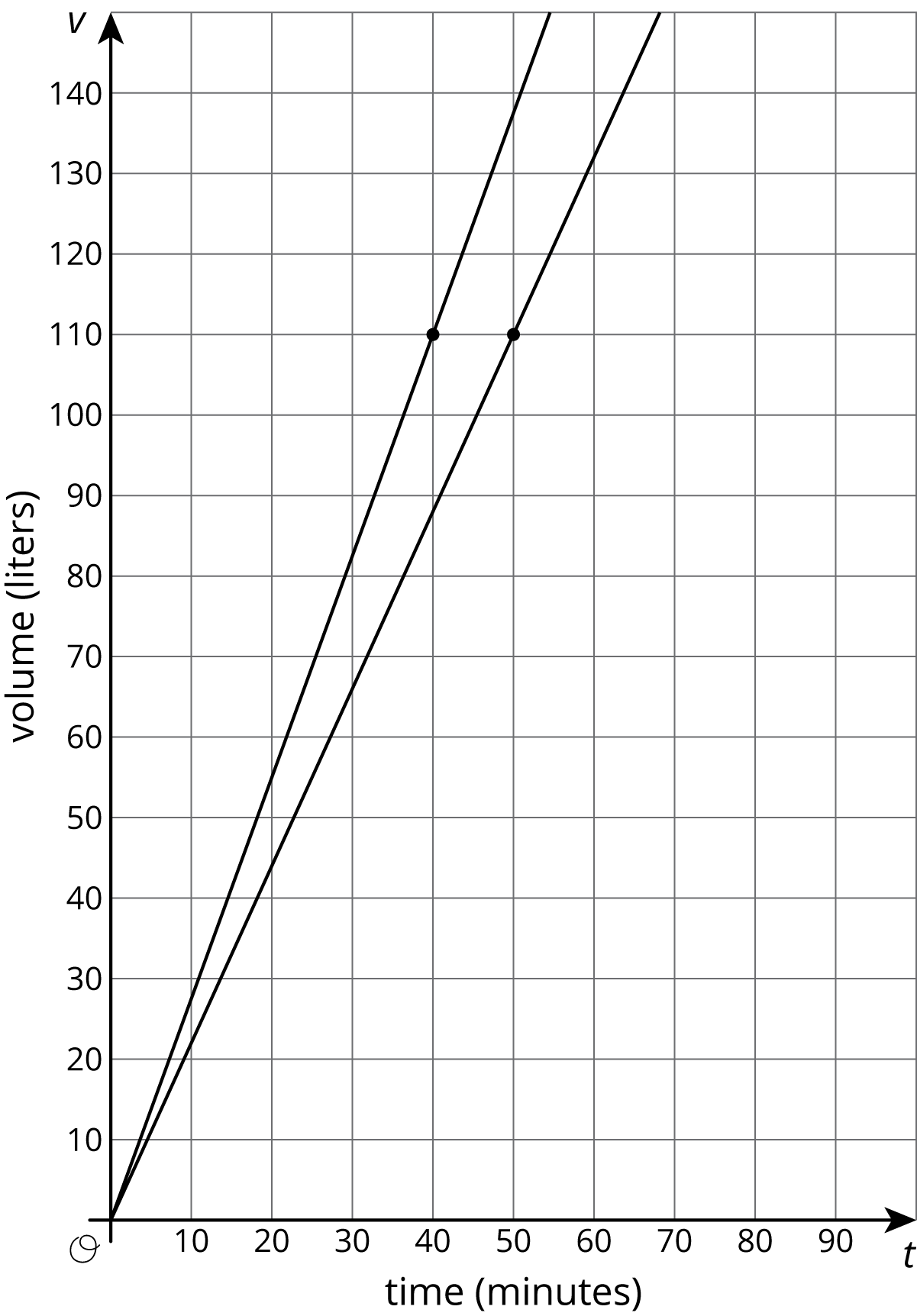

graph, horizontal axis, time in minutes, scale 0 to 90, by 10's. vertical axis, volume in liters, 0 to 140, by 10's.

If we use a vertical scale that goes to 150 liters, a bit beyond the 110 we are looking for, and a horizontal scale that goes to 100 minutes, we get a much more useful set of axes for answering our question.

Now we can see that the two tanks will reach 110 liters 10 minutes apart—tank B after 40 minutes of filling and tank A after 50 minutes of filling.

It is important to note that both of these graphs are correct, but one uses a range of values that helps answer the question. In order to always pick a helpful scale, we should consider the situation and the questions asked about it.

Glossary Entries

  • constant of proportionality

    In a proportional relationship, the values for one quantity are each multiplied by the same number to get the values for the other quantity. This number is called the constant of proportionality.

    In this example, the constant of proportionality is 3, because \(2 \boldcdot 3 = 6\), \(3 \boldcdot 3 = 9\), and \(5 \boldcdot 3 = 15\). This means that there are 3 apples for every 1 orange in the fruit salad.

    number of oranges number of apples
    2 6
    3 9
    5 15
