Lesson 12
Using Graphs to Compare Relationships
Let’s graph more than one relationship on the same grid.
Problem 1
The graphs below show some data from a coffee shop menu. One of the graphs shows cost (in dollars) vs. drink volume (in ounces), and one of the graphs shows calories vs. drink volume (in ounces).

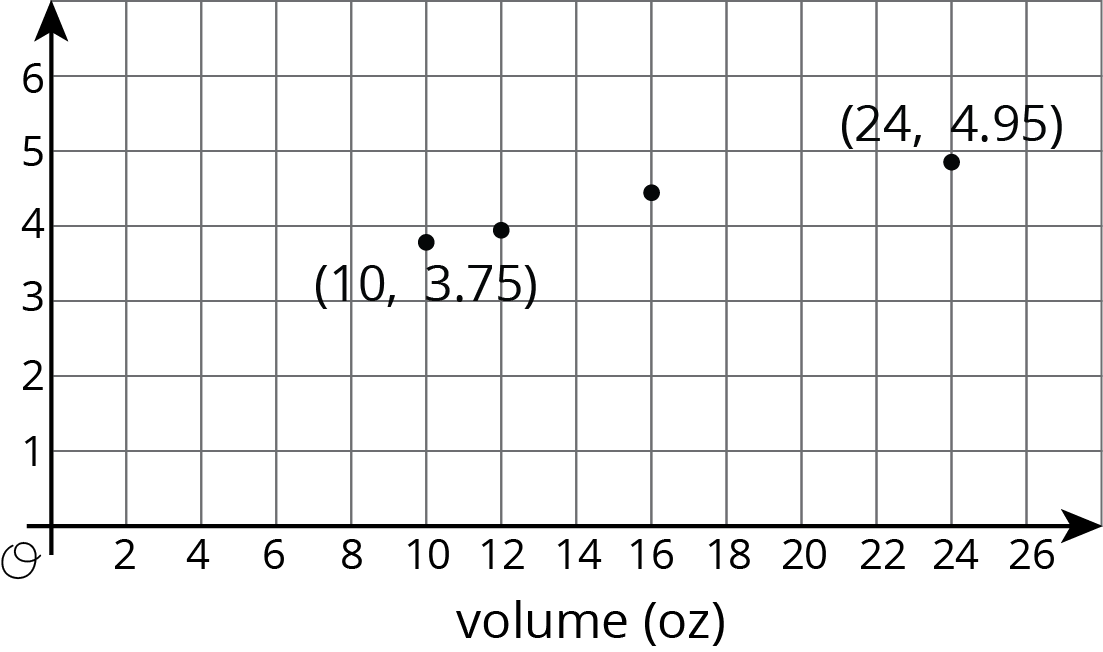

__________________ vs volume
![Graph of points on coordinate plane, origin O.](https://cms-im.s3.amazonaws.com/yLRkVa31GvVxPFPMmnjYuFzZ?response-content-disposition=inline%3B%20filename%3D%227-7.2.E.PP.Image.10.png%22%3B%20filename%2A%3DUTF-8%27%277-7.2.E.PP.Image.10.png&response-content-type=image%2Fpng&X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAXQCCIHWF3XOEFOW4%2F20240727%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20240727T005006Z&X-Amz-Expires=604800&X-Amz-SignedHeaders=host&X-Amz-Signature=232a20ad6665e1e2edf098a48435a5521e7178c6aa44f783d8c5faa200cbfc9a)

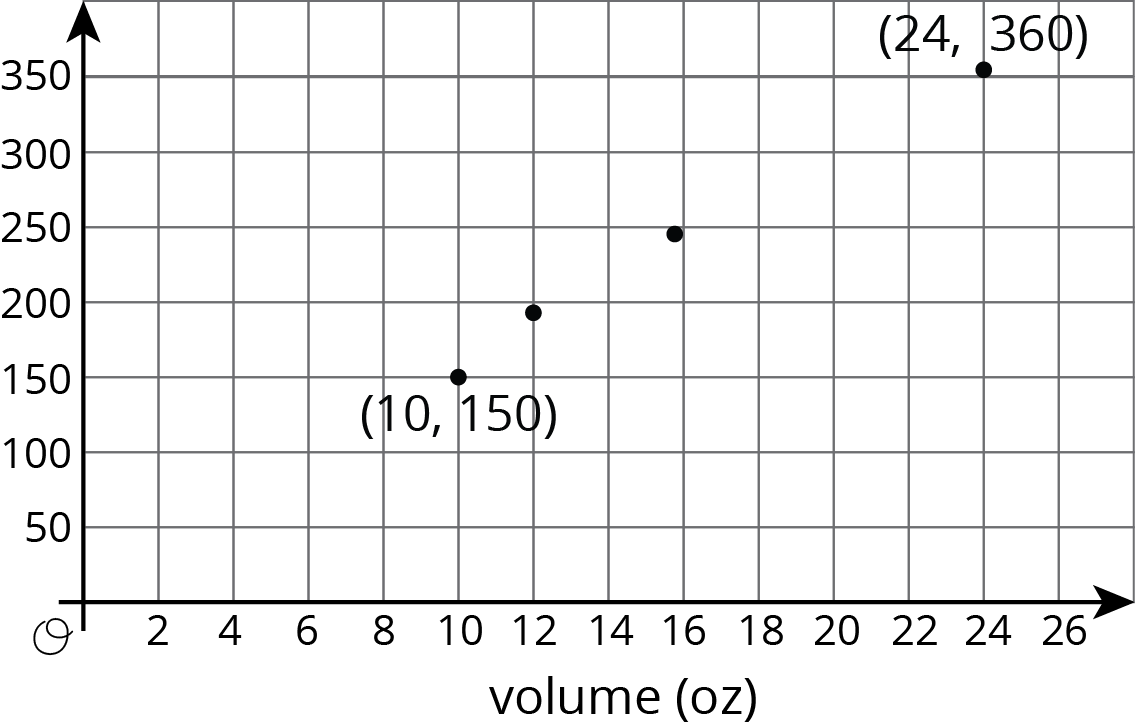

_____________________ vs volume
![Graph of points on coordinate plane, origin O.](https://cms-im.s3.amazonaws.com/fsenBttzN9Nqqr5GfA3JH4CW?response-content-disposition=inline%3B%20filename%3D%227-7.2.E.PP.Image.11.png%22%3B%20filename%2A%3DUTF-8%27%277-7.2.E.PP.Image.11.png&response-content-type=image%2Fpng&X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAXQCCIHWF3XOEFOW4%2F20240727%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20240727T005006Z&X-Amz-Expires=604800&X-Amz-SignedHeaders=host&X-Amz-Signature=0bb05001229b31f38c5ec844c46ddb5179cb1cee0d5d941123ee3c0e6392c1f4)
- Which graph is which? Give them the correct titles.
- Which quantities appear to be in a proportional relationship? Explain how you know.
- For the proportional relationship, find the constant of proportionality. What does that number mean?
Problem 2
Lin and Andre biked home from school at a steady pace. Lin biked 1.5 km and it took her 5 minutes. Andre biked 2 km and it took him 8 minutes.
- Draw a graph with two lines that represent the bike rides of Lin and Andre.
- For each line, highlight the point with coordinates \((1,k)\) and find \(k\).
- Who was biking faster?
Problem 3
Match each equation to its graph.
- \(y = 2x\)
- \(y = \frac45 x\)
- \(y = \frac14 x\)
- \(y = \frac23 x\)
- \(y = \frac43 x\)
- \(y = \frac32 x\)
1
![Graph of a linear function, origin O.](https://cms-im.s3.amazonaws.com/r3ba1ZWBYSGKQQ2SD7jZAczQ?response-content-disposition=inline%3B%20filename%3D%227-7.2.F.PP.Image.07.png%22%3B%20filename%2A%3DUTF-8%27%277-7.2.F.PP.Image.07.png&response-content-type=image%2Fpng&X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAXQCCIHWF3XOEFOW4%2F20240727%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20240727T005006Z&X-Amz-Expires=604800&X-Amz-SignedHeaders=host&X-Amz-Signature=7cae104b61e31d894b151280eb30f3c243b4e119f3a5d455bc5f99d3a15153c0)
2
![Graph of a linear function, origin O.](https://cms-im.s3.amazonaws.com/sdqCv7iEZSnPDh56Bix9GpTr?response-content-disposition=inline%3B%20filename%3D%227-7.2.F.PP.Image.08.png%22%3B%20filename%2A%3DUTF-8%27%277-7.2.F.PP.Image.08.png&response-content-type=image%2Fpng&X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAXQCCIHWF3XOEFOW4%2F20240727%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20240727T005006Z&X-Amz-Expires=604800&X-Amz-SignedHeaders=host&X-Amz-Signature=c2984105cdd67504bd7e0118987eb89393bcd20c63119b2035214fc4311da05c)
3
![Graph of a linear function, origin \(O\).](https://cms-im.s3.amazonaws.com/kNzh7TJAb3gK64G13VnqinfF?response-content-disposition=inline%3B%20filename%3D%227-7.2.F.PP.Image.09.png%22%3B%20filename%2A%3DUTF-8%27%277-7.2.F.PP.Image.09.png&response-content-type=image%2Fpng&X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAXQCCIHWF3XOEFOW4%2F20240727%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20240727T005006Z&X-Amz-Expires=604800&X-Amz-SignedHeaders=host&X-Amz-Signature=9f1581fbc6c1a0bfa04fba68dc4217a25ae36c3a8aa82100a1922e328ff7b31e)
4
![Graph of a linear function, origin O.](https://cms-im.s3.amazonaws.com/4MqnAajWEeg4rVPrwHE3Jczm?response-content-disposition=inline%3B%20filename%3D%227-7.2.F.PP.Image.10.png%22%3B%20filename%2A%3DUTF-8%27%277-7.2.F.PP.Image.10.png&response-content-type=image%2Fpng&X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAXQCCIHWF3XOEFOW4%2F20240727%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20240727T005006Z&X-Amz-Expires=604800&X-Amz-SignedHeaders=host&X-Amz-Signature=0d970e7880d7ff09d65c157e7b41aad9d54699e5c1f6dc95ca5b8ce1bad64a16)
5
![Graph of a linear function, origin O.](https://cms-im.s3.amazonaws.com/XEbpdJ3eWpn7uiDrPtzRVfYg?response-content-disposition=inline%3B%20filename%3D%227-7.2.F.PP.Image.11.png%22%3B%20filename%2A%3DUTF-8%27%277-7.2.F.PP.Image.11.png&response-content-type=image%2Fpng&X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAXQCCIHWF3XOEFOW4%2F20240727%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20240727T005006Z&X-Amz-Expires=604800&X-Amz-SignedHeaders=host&X-Amz-Signature=750e1919e3ed60fe56aa61354df850df89ffbb0ee47c7cfd4cd71776b4ae4d60)
6
![Graph of a linear function, origin O.](https://cms-im.s3.amazonaws.com/esdeNuoKCqSTtgV9DyCWDosR?response-content-disposition=inline%3B%20filename%3D%227-7.2.F.PP.Image.12.png%22%3B%20filename%2A%3DUTF-8%27%277-7.2.F.PP.Image.12.png&response-content-type=image%2Fpng&X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAXQCCIHWF3XOEFOW4%2F20240727%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20240727T005006Z&X-Amz-Expires=604800&X-Amz-SignedHeaders=host&X-Amz-Signature=8dff99d3deccdf65eb4ad9d6af77e72aade80b253d565cd1138992fcf3aac8dd)
