Lesson 8

How Crowded Is this Neighborhood?

Let’s see how proportional relationships apply to where people live.

8.1: Dot Density

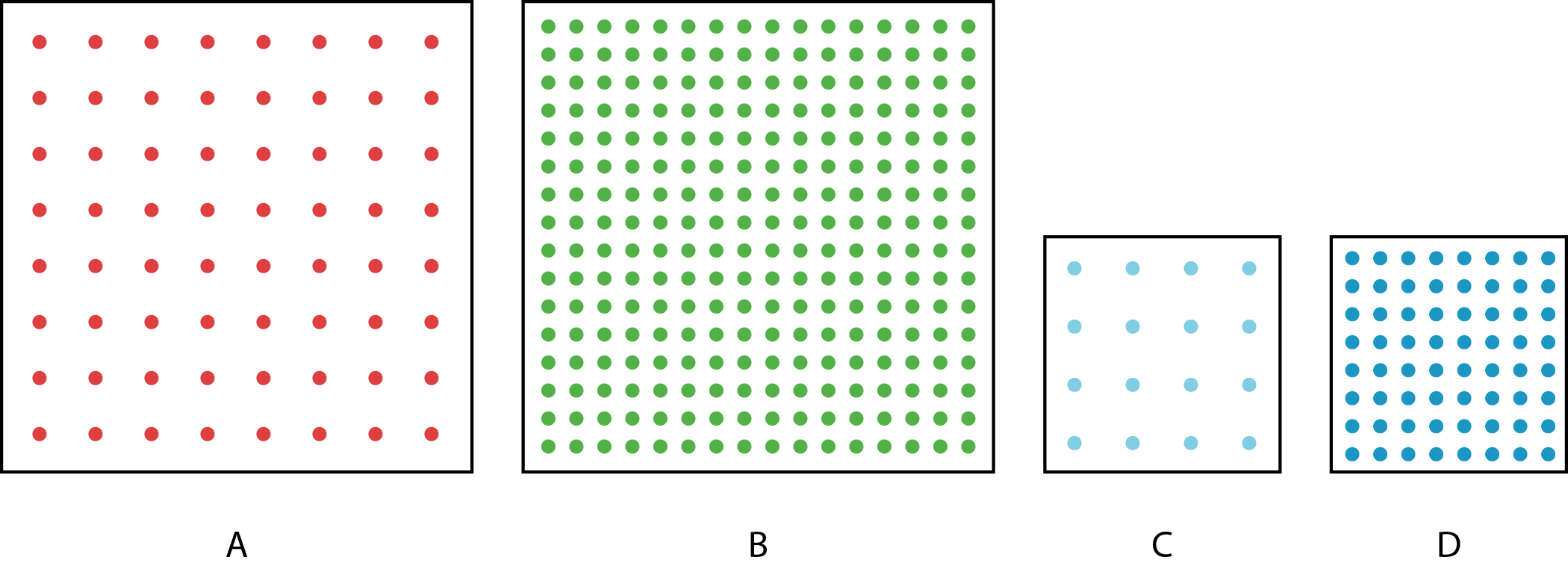

The figure shows four squares. Each square encloses an array of dots. Squares A and B have side length 2 inches. Squares C and D have side length 1 inch.

Four squares labeled A, B, C and D, each with an array of dots inside, as follows: Square A: 8 by 8 array. Square B: 16 by 16 array. Square C: 4 by 4 array. Square D: 8 by 8 array.

  1. Complete the table with information about each square.

    square area of the square
    in square inches    		 number
    of dots    		 number of dots
    per square inch
    A
    B
    C
    D

  2. Compare each square to the others. What is the same and what is different?

8.2: Dot Density with a Twist

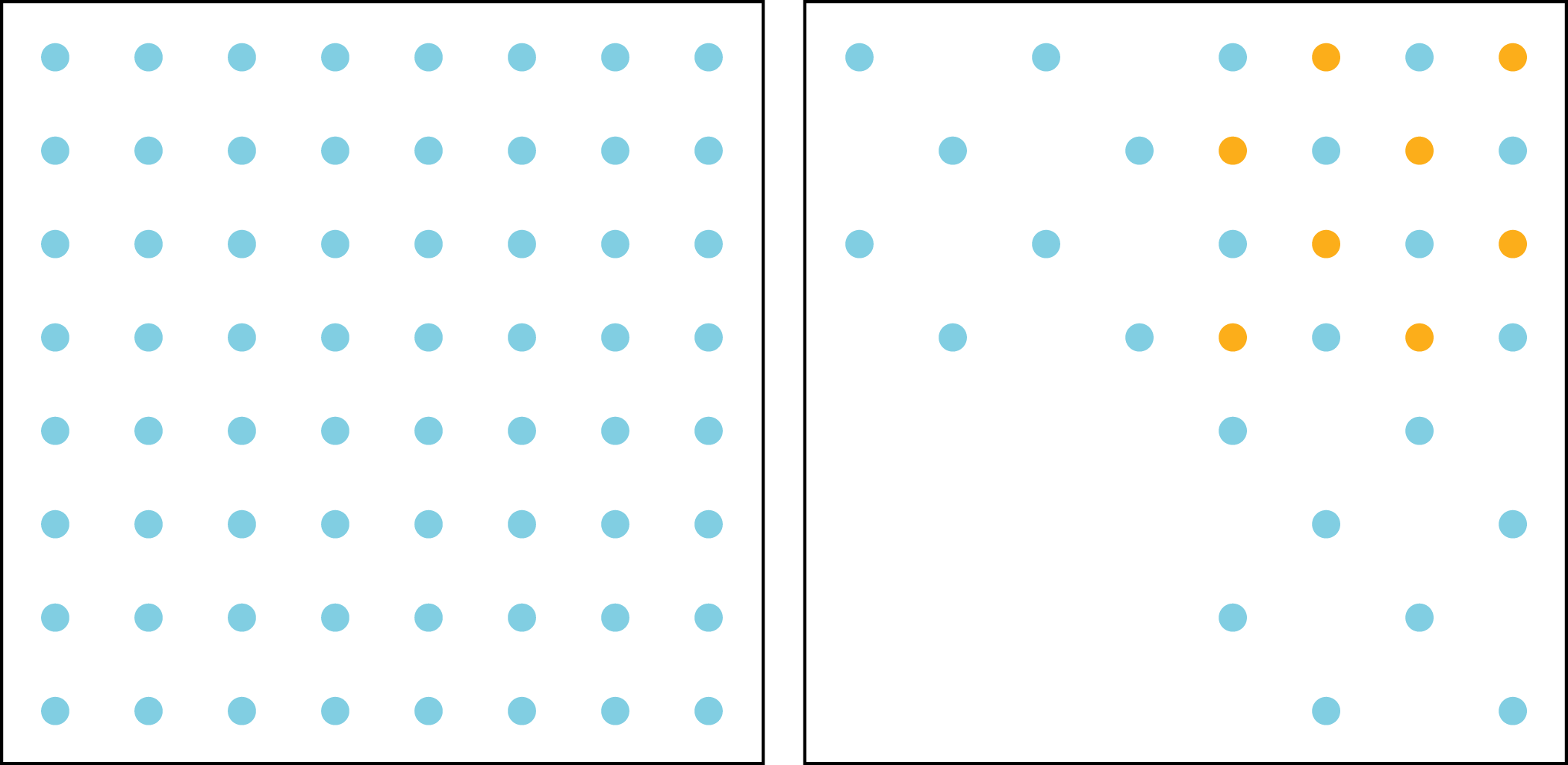

The figure shows two arrays, each enclosed by a square that is 2 inches wide.

Two equal sized squares with an array of dots inside each.
  1. Let \(a\) be the area of the square and \(d\) be the number of dots enclosed by the square. For each square, plot a point that represents its values of \(a\) and \(d\). Start by choosing an appropriate scale for each axis, using the sliders to adjust the intervals.



  2. Draw lines from \((0, 0)\) to each point. For each line, write an equation that represents the proportional relationship.

  3. What is the constant of proportionality for each relationship? What do the constants of proportionality tell us about the dots and squares?

8.3: Housing Density

Here are pictures of two different neighborhoods.

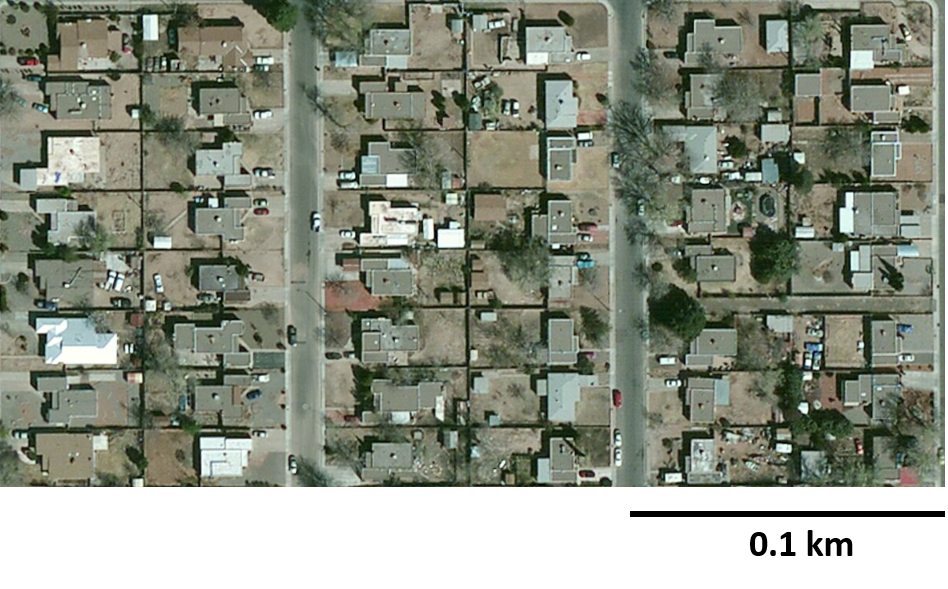

This image depicts an area that is 0.3 kilometers long and 0.2 kilometers wide.

An aerial image of a neighborhood displaying the roofs of houses. Each 0 point1 kilometer by 0 point 1 kilometer area has a total of 8 houses.

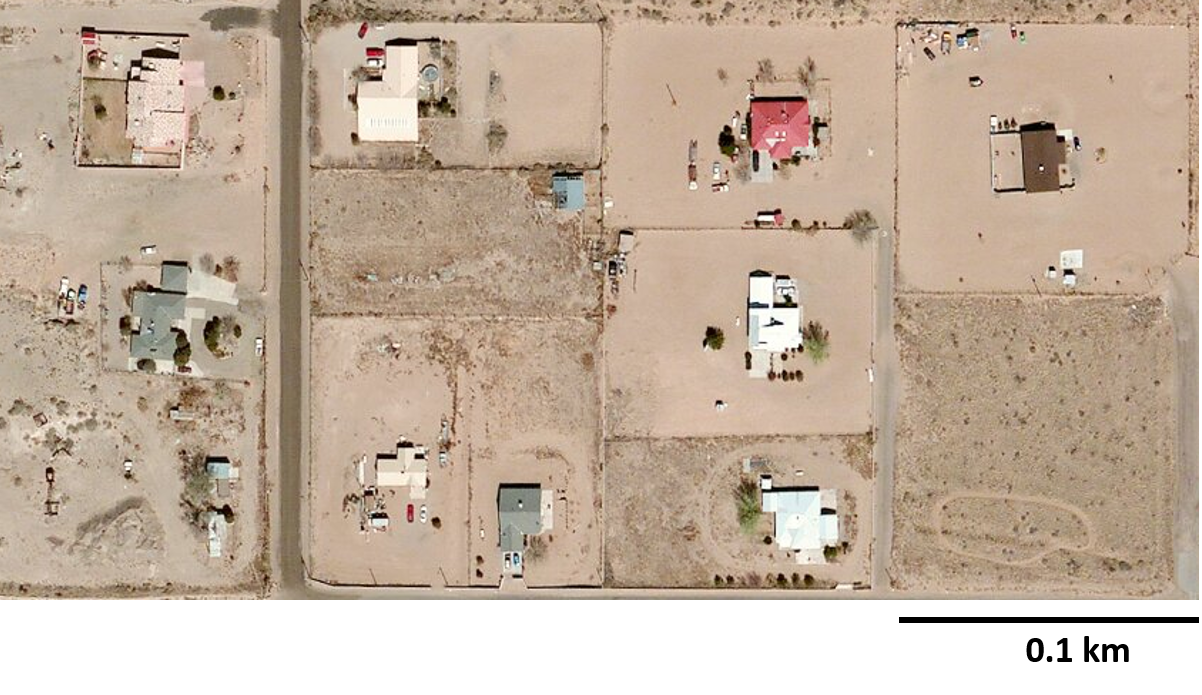

This image depicts an area that is 0.4 kilometers long and 0.2 kilometers wide.

An aerial image of a neighborhood.
For each neighborhood, find the number of houses per square kilometer.

8.4: Population Density

  • New York City has a population of 8,406 thousand people and covers an area of 1,214 square kilometers.
  • Los Angeles has a population of 3,884 thousand people and covers an area of 1,302 square kilometers.

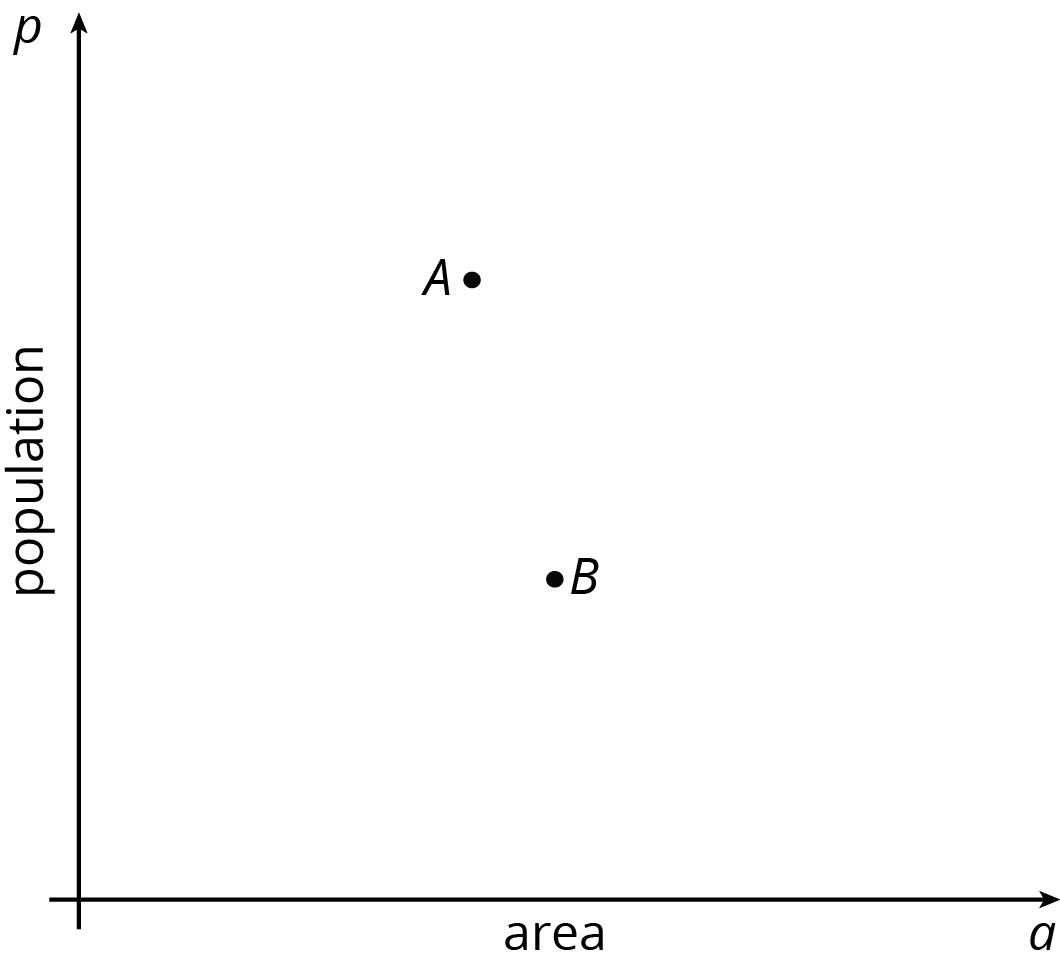

  1. The points labeled \(A\) and \(B\) each correspond to one of the two cities. Which is which? Label them on the graph.

    A coordinate plane, area, population.

  2. Write an equation for the line that passes through \((0, 0)\) and \(A\). What is the constant of proportionality?

  3. Write an equation for the line that passes through \((0, 0)\) and \(B\). What is the constant of proportionality?

  4. What do the constants of proportionality tell you about the crowdedness of these two cities?


  1. Predict where these types of regions would be shown on the graph:

    1. a suburban region where houses are far apart, with big yards

    2. a neighborhood in an urban area with many high-rise apartment buildings

    3. a rural state with lots of open land and not many people

  2. Next, use this data to check your predictions:

    place description population area (km2)
    Chalco a suburb of Omaha, Nebraska 10,994 7.5
    Anoka County a county in Minnesota, near Minneapolis/St. Paul 339,534 1,155
    Guttenberg a city in New Jersey 11,176 0.49
    New York a state 19,746,227 141,300
    Rhode Island a state 1,055,173 3,140
    Alaska a state 736,732 1,717,856
    Tok a community in Alaska 1,258 342.7
