Lesson 8
Equal and Equivalent
Let's use diagrams to figure out which expressions are equivalent and which are just sometimes equal.
8.1: Algebra Talk: Solving Equations by Seeing Structure
Find a solution to each equation mentally.
\(3 + x = 8\)
\(10 = 12 - x\)
\(x^2 = 49\)
\(\frac13 x = 6\)
8.2: Using Diagrams to Show That Expressions are Equivalent

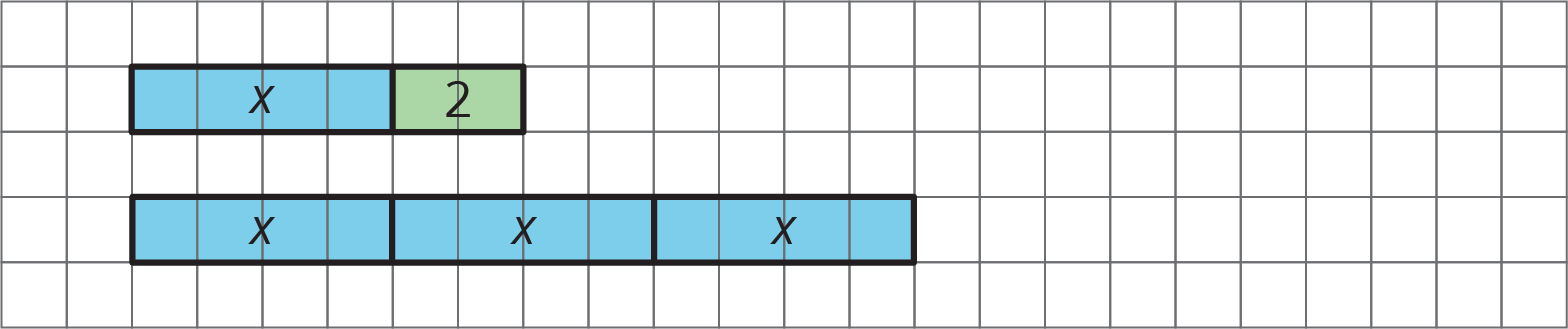

Here is a diagram of \(x+2\) and \(3x\) when \(x\) is 4. Notice that the two diagrams are lined up on their left sides.
![Two tape diagrams. Top diagram 2 parts, x, 2. Bottom diagram 3 parts x,x,x](https://cms-im.s3.amazonaws.com/5vE8sUgQVUA6Nk4zbHihDRRF?response-content-disposition=inline%3B%20filename%3D%226-6.6.xplus2and3x.00001.png%22%3B%20filename%2A%3DUTF-8%27%276-6.6.xplus2and3x.00001.png&response-content-type=image%2Fpng&X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAXQCCIHWF3XOEFOW4%2F20240907%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20240907T232401Z&X-Amz-Expires=604800&X-Amz-SignedHeaders=host&X-Amz-Signature=51705592e1af897c24cc7b60a42f1e88d64f1f894c2a1904621d25fa7242fc0f)
In each of your drawings below, line up the diagrams on one side.
-
Draw a diagram of \(x+2\), and a separate diagram of \(3x\), when \(x\) is 3.
-
Draw a diagram of \(x+2\), and a separate diagram of \(3x\), when \(x\) is 2.
-
Draw a diagram of \(x+2\), and a separate diagram of \(3x\), when \(x\) is 1.
-
Draw a diagram of \(x+2\), and a separate diagram of \(3x\), when \(x\) is 0.
- When are \(x+2\) and \(3x\) equal? When are they not equal? Use your diagrams to explain.
-
Draw a diagram of \(x+3\), and a separate diagram of \(3+x\).
- When are \(x+3\) and \(3+x\) equal? When are they not equal? Use your diagrams to explain.
8.3: Identifying Equivalent Expressions
Here is a list of expressions. Find any pairs of expressions that are equivalent. If you get stuck, try reasoning with diagrams.
\(a+3\)
\(a+a+a\)
\(a \div \frac13\)
\(a \boldcdot 3\)
\(\frac13 a\)
\(3a\)
\(\frac{a}{3}\)
\(1a\)
\(a\)
\(3+a\)
Below are four questions about equivalent expressions. For each one:
- Decide whether you think the expressions are equivalent.
- Test your guess by choosing numbers for \(x\) (and \(y\), if needed).
- Are \(\dfrac{x \boldcdot x \boldcdot x \boldcdot x}{x}\) and \(x \boldcdot x \boldcdot x\) equivalent expressions?
- Are \(\dfrac{x + x + x + x}{x}\) and \(x + x + x\) equivalent expressions?
- Are \(2(x+y)\) and \(2x + 2y\) equivalent expressions?
- Are \(2xy\) and \(2x \boldcdot 2y\) equivalent expressions?
Summary
We can use diagrams showing lengths of rectangles to see when expressions are equal. For example, the expressions \(x+9\) and \(4x\) are equal when \(x\) is 3, but are not equal for other values of \(x\).
![8 tape diagrams of various sizes and various labels on a grid. Each diagram is matched with an expression.](https://cms-im.s3.amazonaws.com/NpbrNf9HN8hdKKd8H1Bj9ub7?response-content-disposition=inline%3B%20filename%3D%226-6.6.B8.Lesson_Summary.png%22%3B%20filename%2A%3DUTF-8%27%276-6.6.B8.Lesson_Summary.png&response-content-type=image%2Fpng&X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAXQCCIHWF3XOEFOW4%2F20240907%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20240907T232401Z&X-Amz-Expires=604800&X-Amz-SignedHeaders=host&X-Amz-Signature=a71e7c0bd27f6c28075c5d9be51942fd7d4690dd6d4233aec3b11702f8d931bf)
Sometimes two expressions are equal for only one particular value of their variable. Other times, they seem to be equal no matter what the value of the variable.
Expressions that are always equal for the same value of their variable are called equivalent expressions. However, it would be impossible to test every possible value of the variable. How can we know for sure that expressions are equivalent? We use the meaning of operations and properties of operations to know that expressions are equivalent. Here are some examples:
- \(x+3\) is equivalent to \(3+x\) because of the commutative property of addition.
- \(4\boldcdot {y}\) is equivalent to \(y\boldcdot 4\) because of the commutative property of multiplication.
- \(a+a+a+a+a\) is equivalent to \(5\boldcdot {a}\) because adding 5 copies of something is the same as multiplying it by 5.
- \(b\div3\) is equivalent to \(b \boldcdot {\frac13}\) because dividing by a number is the same as multiplying by its reciprocal.
In the coming lessons, we will see how another property, the distributive property, can show that expressions are equivalent.
Glossary Entries
- equivalent expressions
Equivalent expressions are always equal to each other. If the expressions have variables, they are equal whenever the same value is used for the variable in each expression.
For example, \(3x+4x\) is equivalent to \(5x+2x\). No matter what value we use for \(x\), these expressions are always equal. When \(x\) is 3, both expressions equal 21. When \(x\) is 10, both expressions equal 70.
