Lesson 13

Building a Volume Formula for a Pyramid

View Student Lesson

Problem 1

Find the volume of a pyramid whose base is a square with side lengths of 6 units and height of 8 units.

Solution

For access, consult one of our IM Certified Partners.

Problem 2

A cylinder has radius 9 inches and height 15 inches. A cone has the same radius and height.

  1. Find the volume of the cylinder.
  2. Find the volume of the cone.
  3. What fraction of the cylinder’s volume is the cone’s volume?

Solution

For access, consult one of our IM Certified Partners.

Problem 3

Each solid in the image has height 4 units. The area of each solid’s base is 8 square units. A cross section has been created in each by dilating the base using the apex as a center with scale factor \(k=0.25\).

A pyramid with a triangular base. Another pyramid with a rectangle base.
  1. Calculate the area of each of the 2 cross sections.
  2. Suppose a new cross section was created in each solid, both at the same height, using some scale factor \(k\). How would the areas of these 2 cross sections compare? Explain your reasoning.

Solution

For access, consult one of our IM Certified Partners.

Problem 4

Select the most specific and accurate name for the solid in the image.

5 sided solid. Two right triangles and 3 rectangles.
A:

triangular pyramid

B:

regular prism

C:

square prism

D:

right triangular prism

Solution

For access, consult one of our IM Certified Partners.

(From Unit 5, Lesson 12.)

Problem 5

A solid can be constructed with 4 triangles and 1 rectangle. What is the name for this solid?

A:

rectangular pyramid

B:

triangular pyramid

C:

right triangular prism

D:

rectangular prism

Solution

For access, consult one of our IM Certified Partners.

(From Unit 5, Lesson 12.)

Problem 6

Find the volume of the solid produced by rotating this two-dimensional shape using the axis shown.

Grid, horizontal axis 1 block above the bottom. Rectangle 1 block above the axis, 2 blocks tall and 6 blocks wide.

Solution

For access, consult one of our IM Certified Partners.

(From Unit 5, Lesson 11.)

Problem 7

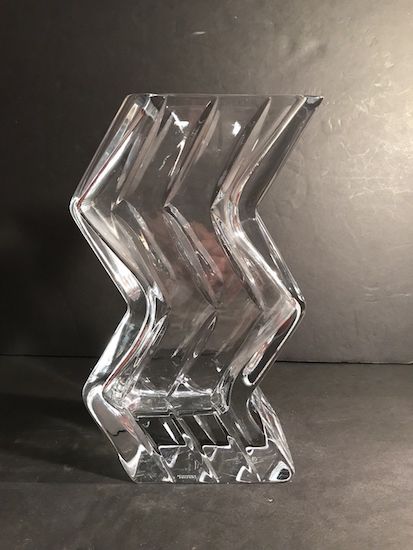

This zigzag crystal vase has a height of 20 centimeters. The cross sections parallel to the base are always rectangles that are 12 centimeters wide by 6 centimeters long.

Photograph of a zig zag crystal vase
  1. If we assume the crystal itself has no thickness, what would be the volume of the vase?
  2. The crystal is actually 1 centimeter thick on each of the sides and on the bottom. Approximately how much space is contained within the vase? Explain or show your reasoning.

Solution

For access, consult one of our IM Certified Partners.

(From Unit 5, Lesson 10.)

Problem 8

A trapezoid has an area of 10 square units. What scale factor would be required to dilate the trapezoid to have an area of 90 square units?

A:

9

B:

6

C:

3

D:

\(\frac13\)

Solution

For access, consult one of our IM Certified Partners.

(From Unit 5, Lesson 5.)
