Lesson 10

Cross Sections and Volume

View Student Lesson

Problem 1

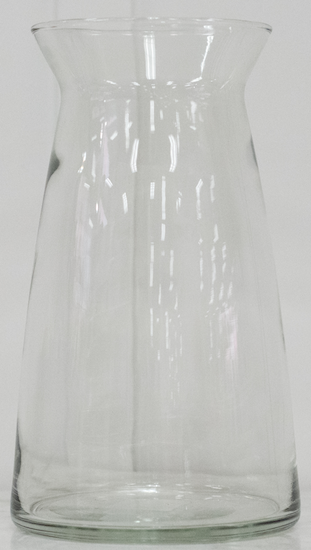

This vase has a base of \(B\) square inches and a height of \(h\) inches. Which statement is true?

Photo of a glass vase.  The sides are not perpendicular, instead tilting in until just before the top of the vase and then tilting back out to end almost directly above the edge of the base.
A:

Its volume is less than \(Bh\) cubic inches.

B:

Its volume is equal to \(Bh\) cubic inches.

C:

Its volume is greater than \(Bh\) cubic inches.

D:

We cannot compare its volume to \(Bh\) cubic inches.

Solution

For access, consult one of our IM Certified Partners.

Problem 2

Noah is deciding which of 2 juice containers he should buy. One container is in the shape of a cylinder with radius 3.5 centimeters and height 12.5 centimeters. The second container is in the shape of a rectangular prism. The prism also has height 12.5 centimeters. Its length is 6.4 centimeters and its width is 4 centimeters.

Which juice container has the larger volume?

Solution

For access, consult one of our IM Certified Partners.

Problem 3

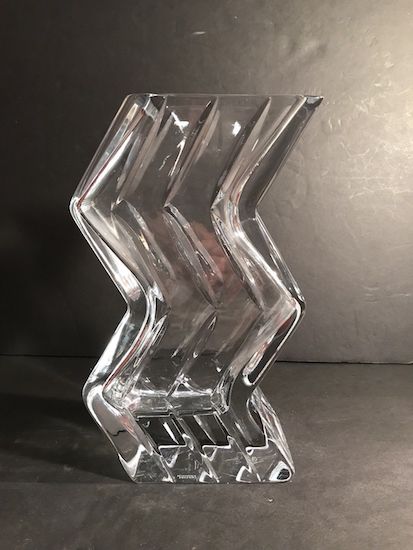

This zigzag crystal vase has a height of 10 inches. The cross sections parallel to the base are always rectangles that are 6 inches wide by 3 inches long.

Photograph of a zig zag crystal vase
  1. If we assume the crystal itself has no thickness, what would be the volume of the vase?
  2. The crystal is actually half an inch thick on each of the sides and on the bottom. Approximately how much space is contained within the vase? Explain or show your reasoning.

Solution

For access, consult one of our IM Certified Partners.

Problem 4

List two solids for which the formula \(V=Bh\) applies and 2 for which \(V=Bh\) does not apply.

Solution

For access, consult one of our IM Certified Partners.

(From Unit 5, Lesson 9.)

Problem 5

Each small square represents 1 square centimeter.

  1. Sketch and label the solid formed by rotating this two-dimensional figure around the vertical axis shown.What is the volume of this solid?
    A 5 by 2 rectangle on a square grid. The rectangle is 1 unit to the right of a bolded vertical grid line.
  2. What is the volume of this solid?

Solution

For access, consult one of our IM Certified Partners.

(From Unit 5, Lesson 9.)

Problem 6

A solid has volume 2 cubic units and surface area 10 square units. The solid is dilated, and the image has volume 128 cubic units. What is the surface area of the image?

Solution

For access, consult one of our IM Certified Partners.

(From Unit 5, Lesson 8.)

Problem 7

A solid with surface area 50 square units is dilated by a scale factor of \(k\) to obtain a solid with surface area 200 square units. Find the value of \(k\).

A:

4

B:

2

C:

\(\frac12\)

D:

\(\frac14\)

Solution

For access, consult one of our IM Certified Partners.

(From Unit 5, Lesson 7.)

Problem 8

Name 2 figures for which all cross sections taken at a particular orientation are congruent.

Solution

For access, consult one of our IM Certified Partners.

(From Unit 5, Lesson 2.)
