Lesson 13

Using Equations to Solve for Unknown Angles

Problem 1

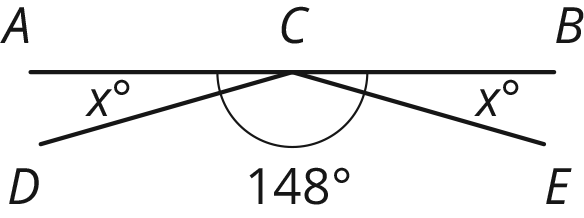

Segments \(AB\), \(DC\), and \(EC\) intersect at point \(C\). Angle \(DCE\) measures \(148^\circ\). Find the value of \(x\).

Point C lies on segment A, B. Segments D C and E C are on the same side of A, B and form 3 angles.  Angle A, C D measures x degrees, Angle D C E measures 148 degrees. Angle B C E measures x degrees.

Solution

For access, consult one of our IM Certified Partners.

Problem 2

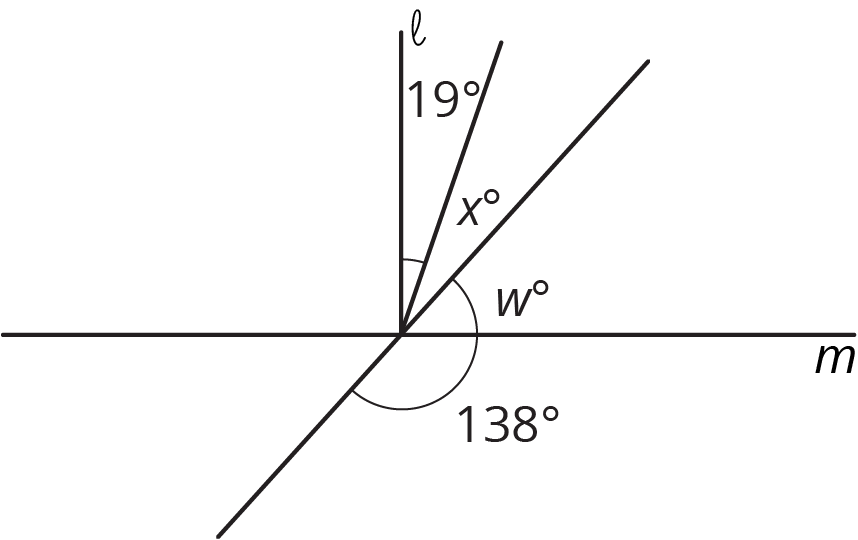

Line \(\ell\) is perpendicular to line \(m\). Find the value of \(x\) and \(w\).

Three angles between line l and line m are 19 degrees, x degrees, w degrees. The angles marked w degrees and 128 degrees are adjacent anf form a straight line.

Solution

For access, consult one of our IM Certified Partners.

Problem 3

If you knew that two angles were complementary and were given the measure of one of those angles, would you be able to find the measure of the other angle? Explain your reasoning.

Solution

For access, consult one of our IM Certified Partners.

Problem 4

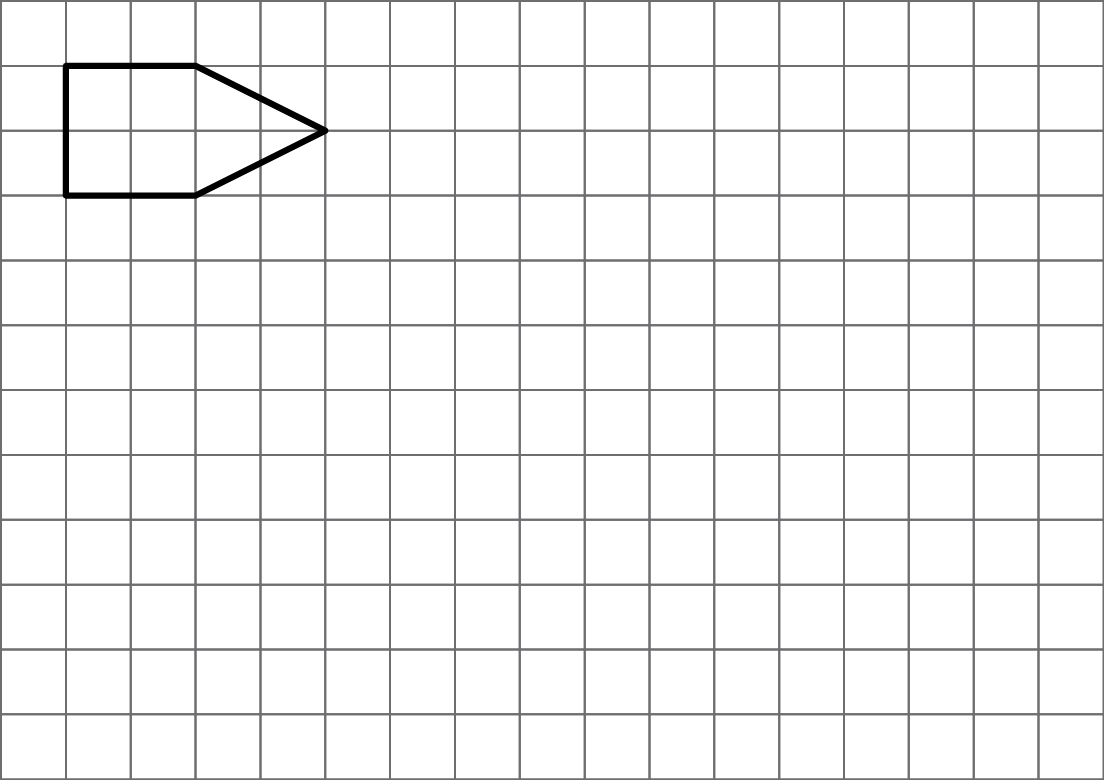

Here is a polygon on a grid.

A polygon aligned to a square grid.
  1. Draw a scaled copy of the polygon using a scale factor 3. Label the copy A.

  2. Draw a scaled copy of the polygon with a scale factor \(\frac{1}{2}\). Label it B.

  3. Is Polygon A a scaled copy of Polygon B? If so, what is the scale factor that takes B to A?

Solution

For access, consult one of our IM Certified Partners.

(From Unit 2, Lesson 2.)

Problem 5

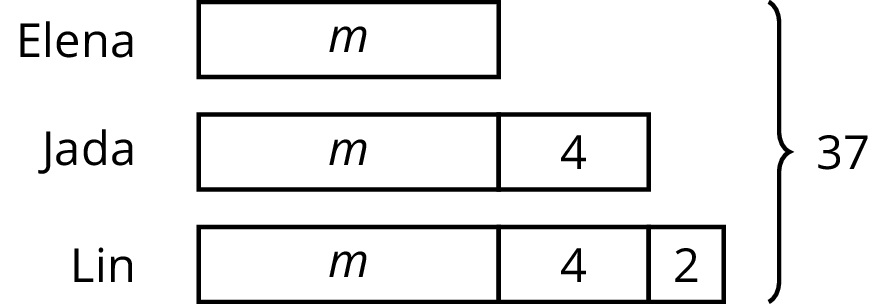

Jada, Elena, and Lin walked a total of 37 miles last week. Jada walked 4 more miles than Elena, and Lin walked 2 more miles than Jada. The diagram represents this situation:

Three tape diagrams. Elena, 1 part, m. Jada 2 parts, m, 4, Lin, 3 parts, m, 4, 2. Bracket indicates the total of all 3 diagrams is 37.




Find the number of miles that they each walked. Explain or show your reasoning.

Solution

For access, consult one of our IM Certified Partners.

(From Unit 3, Lesson 12.)
