Lesson 11

Part-Part-Whole Ratios

View Student Lesson

Problem 1

Here is a tape diagram representing the ratio of red paint to yellow paint in a mixture of orange paint.

  1. What is the ratio of yellow paint to red paint?
  2. How many total cups of orange paint will this mixture yield?

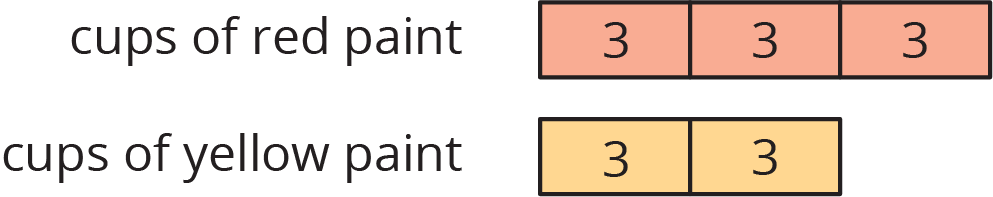

Tape diagram, cups of red paint, 3 and cups of yellow paint, 2. Each part labeled 3.



Solution

For access, consult one of our IM Certified Partners.

Problem 2

At the kennel, the ratio of cats to dogs is \(4:5\). There are 27 animals in all. Here is a tape diagram representing this ratio.

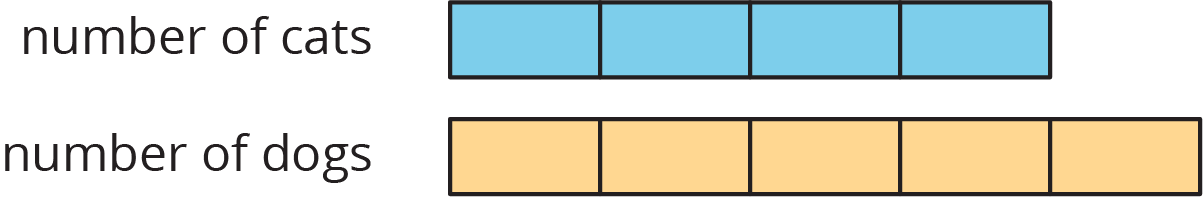

Tape diagram, number of cats, 4 and number of dogs, 5.
  1. What is the value of each small rectangle?
  2. How many dogs are at the kennel?
  3. How many cats are at the kennel?

Solution

For access, consult one of our IM Certified Partners.

Problem 3

Last month, there were 4 sunny days for every rainy day. If there were 30 days in the month, how many days were rainy? Explain your reasoning. If you get stuck, consider using a tape diagram.

Solution

For access, consult one of our IM Certified Partners.

Problem 4

Noah entered a 100-mile bike race. He knows he can ride 32 miles in 160 minutes. At this rate, how long will it take him to finish the race? Use each table to find the answer. Next, explain which table you think works better in finding the answer.

Table A:

distance (miles) elapsed time (minutes)
32 160
1
100

Table B:

distance (miles) elapsed time (minutes)
32 160
96
4
100



Solution

For access, consult one of our IM Certified Partners.

(From Unit 2, Lesson 9.)

Problem 5

A cashier worked an 8-hour day, and earned $58.00. The double number line shows the amount she earned for working different numbers of hours. For each question, explain your reasoning.

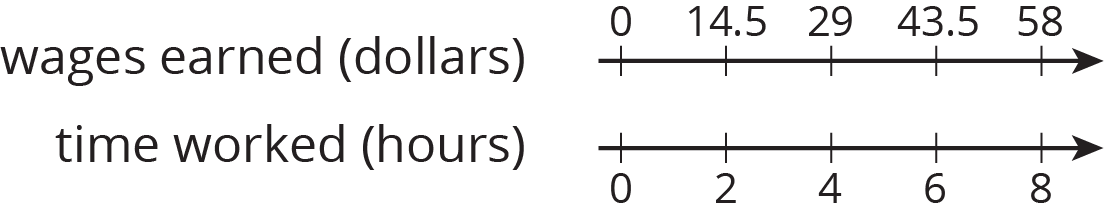

Double number line, 5 red evenly spaced tick marks. Top line, wages earned, dollars. Scale 0 to 58, by 14.5’s. Bottom line, time worked, hours. Scale 0 to 8, by 2’s.
  1. How much does the cashier earn per hour?
  2. How much does the cashier earn if she works 3 hours?

Solution

For access, consult one of our IM Certified Partners.

(From Unit 2, Lesson 9.)

Problem 6

A grocery store sells bags of oranges in two different sizes.

  • The 3-pound bags of oranges cost $4.
  • The 8-pound bags of oranges for $9.

Which oranges cost less per pound? Explain or show your reasoning.

Solution

For access, consult one of our IM Certified Partners.

(From Unit 2, Lesson 7.)
