Lesson 5

Working with Ratios in Right Triangles

View Student Lesson

Problem 1

A triangle has sides with lengths 8, 15, and 17.

  1. Verify this is a Pythagorean triple.
  2. Approximate the acute angles in this triangle.

Solution

For access, consult one of our IM Certified Partners.

Problem 2

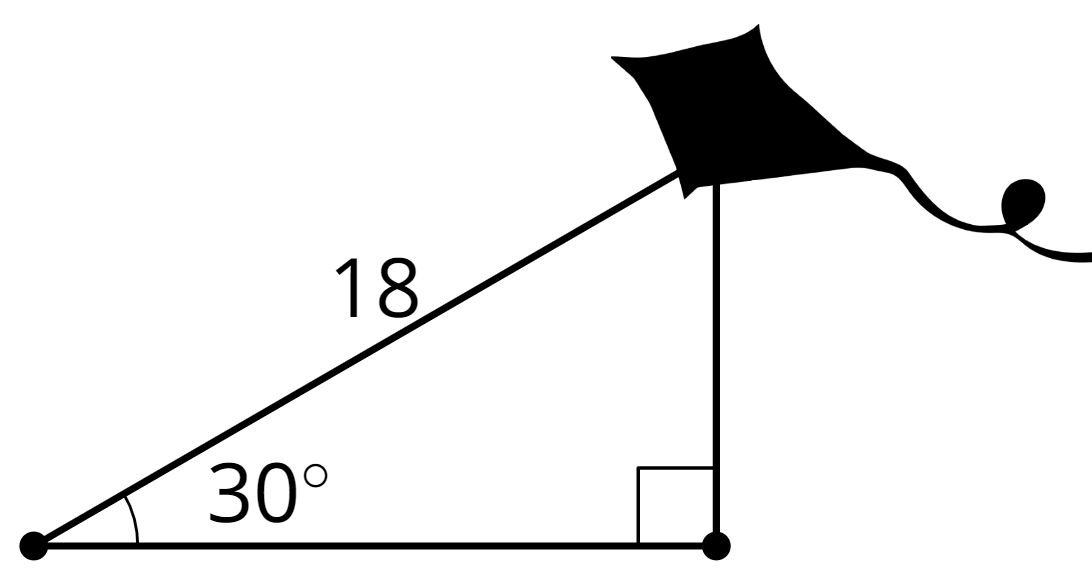

Kiran is flying a kite. He gets tired, so he stakes the kite into the ground. The kite is on a string that is 18 feet long and makes a 30 degree angle with the ground. How high is the kite?

String = hypotenuse = 18 feet. angle with the ground = 30 degrees. Perpendicular height unknown.

Solution

For access, consult one of our IM Certified Partners.

Problem 3

Triangle \(ABC\) has a right angle at \(C\). Select all measurements which would mean it has a hypotenuse with a length of 10 units.

Triangle A B C with angle C marked as a right angle.
A:

Angle \(A\) is 20 degrees, \(BC\) is 2 units

B:

\(AC\) is 7 units, \(BC\) is 3 units

C:

Angle \(B\) is 50 degrees, \(BC\) is 4 units

D:

Angle \(A\) is 30 degrees, \(BC\) is 5 units

E:

\(AC\) is 8 units, \(BC\) is 6 units

Solution

For access, consult one of our IM Certified Partners.

Problem 4

What is a reasonable approximation for angle \(B\) if the ratio of the adjacent leg divided by the hypotenuse is 0.45?

A:

27 degrees

B:

30 degrees

C:

60 degrees

D:

63 degrees

Solution

For access, consult one of our IM Certified Partners.

(From Unit 4, Lesson 4.)

Problem 5

Estimate the values to complete the table.

Right triangle ABC. Right angle at B.
angle adjacent leg \(\div\) hypotenuse opposite leg \(\div\) hypotenuse opposite leg \(\div\) adjacent leg
\(A\) 0.31 0.95 3.1
\(C\)

Solution

For access, consult one of our IM Certified Partners.

(From Unit 4, Lesson 4.)

Problem 6

What is the length of side \(AB\)?

Right triangle A B C. A C is 6 units, angle B A C is 90 degrees, and angle A C B is 30 degrees.

Solution

For access, consult one of our IM Certified Partners.

(From Unit 4, Lesson 3.)

Problem 7

What is the length of the square’s side?

Square with diagonal = 6 units
A:

3 units

B:

\(\frac{6}{\sqrt2}\) units

C:

\(6 \sqrt2\) units

D:

12 units

Solution

For access, consult one of our IM Certified Partners.

Problem 8

Find the lengths of segments \(AD\) and \(BD\). Then check your answers using a different method.

Right triangle A B C. Altitude B D drawn, creating right triangle B D C. Segment D C labeled 12. Segment B C labeled 13.

Solution

For access, consult one of our IM Certified Partners.

(From Unit 3, Lesson 13.)
